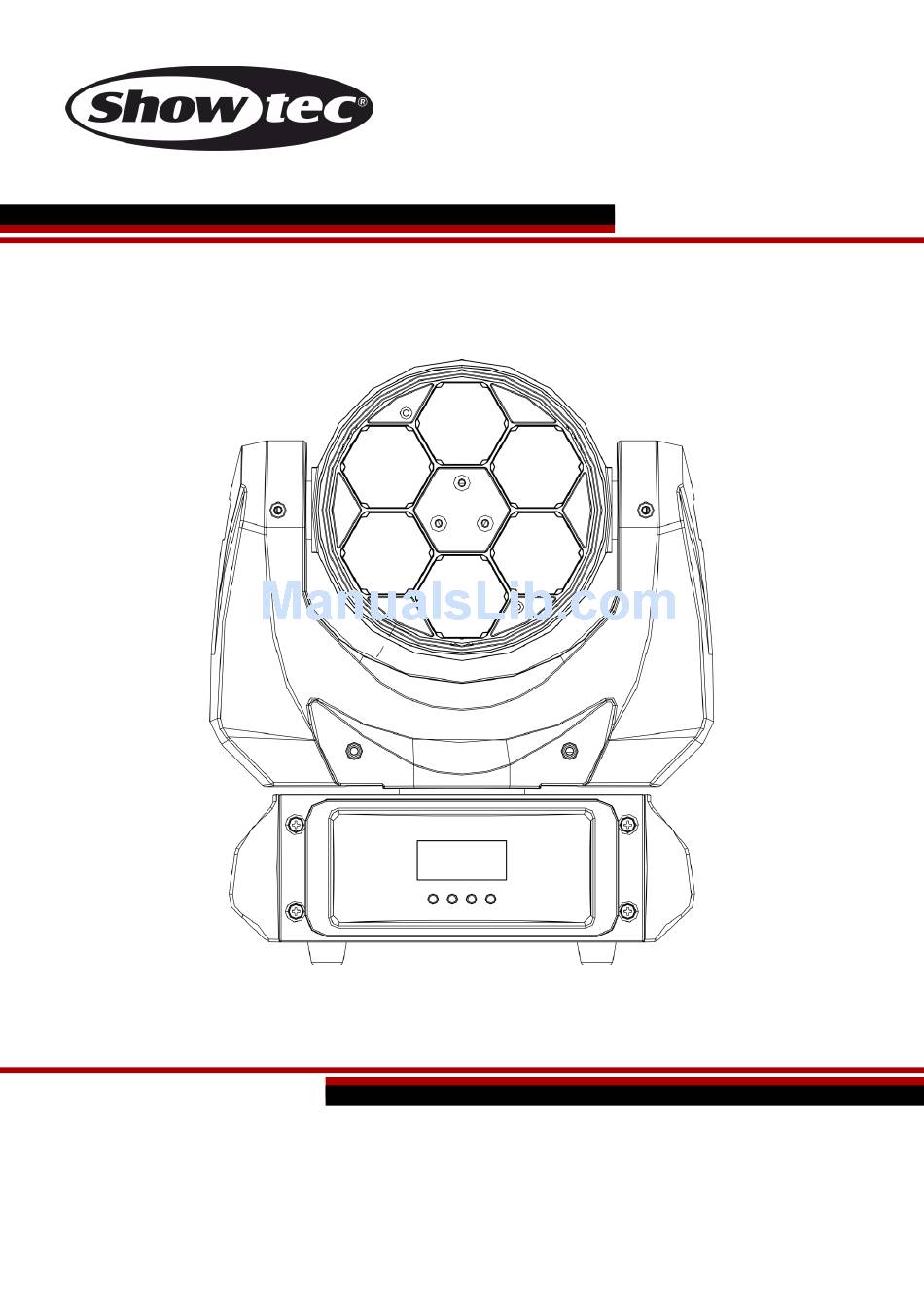

- Page 1 MANUAL ENGLISH Juno Ordercode: 45052 Highlit e I nt ernat ional B.V. – Ves t as t raat 2 – 6468 EX – K erkrade – t he Net herlands...
-
Page 2: Table Of Contents
Set Up and Operation........................... 10 Control Modes............................10 One Juno (Manual) ..........................10 One Juno (Sound-controlled) ....................... 10 One Juno (Built-in Programs) ......................... 10 Multiple Juno’s (Master/Slave Mode) ....................11 Multiple Juno’s (DMX Control)....................... 12 Fixture Linking ............................13 Data Cabling ............................13 Control Panel ............................ - Page 3 Juno Troubleshooting ............................29 No Light ..............................29 No Response to DMX ..........................29 Product Specifications..........................31 Dimensions ..............................32 Notes ................................33 Ordercode: 45052...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a f ixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Juno • 1 mounting bracket •... - Page 5 For replacement use fuses of same type and rating only. • The user is responsible for correct positioning and operating of the Juno. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 6: Operating Determinations
When rigging, de-rigging or servicing the projector, always make sure, that the area below the installation site is secured and that there are not any unauthorized people around. The Juno can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Ordercode: 45052... -
Page 7: Connection With The Mains
Juno Mounting a clamp to the underside of the Juno moving head Improper installation can cause serious injuries to people and/or damage of property ! Connection with the mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place. -
Page 8: Return Procedure
Juno Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device

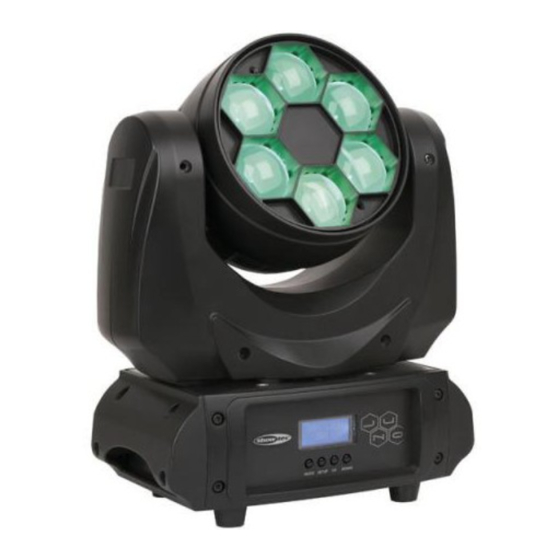

Juno Description of the device Features The Showtec Juno is a moving head fixture with high output and great effects. 6 razor sharp beams that can be twisted and turned by the rotating the lens dish. This creates new spectacular visual effects. Once the beams are all combined, they will create a strong fat beam. -
Page 10: Overview
Juno Overview Fig. 01 01) LCD Display +control buttons Backside Fig. 02 02) Ground/earth connection 03) IEC Power connector (IN) + Fuse T2L / 250V 04) IEC Power connector (OUT) 05) Power switch ON/OFF 06) 3-pin DMX signal connector IN... -
Page 11: Installation
03) Plug the end of the electric mains power cord into a proper electric power supply sock et. 04) When the Juno is not connected with a DMX cable, it functions as a stand-alone device. 05) Please see page 17 for more information about the Manual mode. -
Page 12: Multiple Juno's (Master/Slave Mode)
02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 3-pin XLR cable to connect the Juno’s. The pins: 01) Earth... -
Page 13: Multiple Juno's (Dmx Control)
03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 3-p XLR cable to connect the Juno’s and other devices. 05) Link the units as shown in Fig. 04, Connect a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in"... -
Page 14: Fixture Linking
Juno Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX -512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
When using multiple Juno’s, make sure you set the DMX addresses right. Therefore, the DMX address of the first Juno should be 1(001); the DMX address of the second Juno should be 1+17=18 (018); the DMX address of the third Juno should be 18+17=35 (035), etc. -
Page 16: Menu Overview
Juno Menu Overview Ordercode: 45052... -
Page 17: Main Menu Options
Run Mode Function mode Version The Juno will only show its entire version number at start-up ! 1. DMX-512 Mode 01) While in the main menu, press the UP and DOWN buttons until the display shows 02) Press the SETUP button to enter the menu. -
Page 18: Dmx-512 Mode
01) While in the main menu, press the UP and DOWN buttons until the display shows 02) Press the SETUP button to choose this menu. 03) Your Juno is now DMX controlled. Be sure to select the proper DMX address and DMX channel Mode. 3.2 Manual Control Mode In this menu it is possible to manually adjust the device’s settings. -
Page 19: Sound-Controlled Mode
Juno 0 = off, 255 = full on. 19) Press the SETUP button to store changes. 20) When the display shows , press the SETUP button to enter the menu. 21) Press the UP and DOWN buttons to set the white color intensity between 0 = off, 255 = full on. -
Page 20: Function Mode
Juno 4. Function Mode 01) While in the main menu, press the UP and DOWN buttons until the display shows 02) Press the SETUP button to enter the menu. 03) Press the UP and DOWN buttons to choose between 8 options:... -
Page 21: Dimming Curves
Juno 4.3 Dimming curves 01) Press the UP/DOWN buttons until the display shows 02) Press the SETUP button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 4 dimming curves: linear, square, inverted square and S-type. -
Page 22: Backlight
Juno 4.5 Backlight 01) While in the main menu, press the UP and DOWN buttons until the display shows 02) Press the SETUP button to enter the menu. 03) Press the UP and DOWN buttons to toggle between the following options: Display always ON Display OFF after 10 seconds. -
Page 23: Dmx Channels
Juno DMX Channels 9 channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 24 Juno 140-146 Color20(R000, G000, B255, W000) 147-153 Color21(R075, G000, B255, W000) 154-160 Color22(R160, G000, B255, W000) 161-167 Color23(R255, G000, B255, W000) 168-174 Color24(R255, G000, B175, W000) 175-181 Color25(R255, G000, B100, W000) 182-188 Color26(R255, G000, B100, W050) 189-195 Color27(R255, G000, B025, W050)
-
Page 25: Channels
Juno 14 channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 26 Juno 81-90 Slave1 91-96 Slave2 97-160 Sound sensitivity from low sensitivity to high sensitivity 161-170 Pan invert 171-180 Tilt invert 181-190 Pan normal 191-200 Tilt normal 201-220 Black out during pan/ tilt movement 221-240 Reset (after 5 seconds) 241-255 No function Channel 11 –...
-
Page 27: Channels
Juno 17 channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 28 Juno 56-62 Color8(R000, G255, B000, W255) 63-69 Color9(R000, G255, B000, W150) 70-76 Color10(R000, G255, B000, W050) 77-83 Color11(R000, G255, B000, W000) 84-90 Color12(R000, G255, B050, W000) 91-97 Color13(R000, G255, B150, W000) 98-104 Color14(R000, G255, B255, W000) 105-111 Color15(R000, G255, B255, W075)
-
Page 29: Maintenance
Gradual adjustment White from 0 – 100) Maintenance The Showtec Juno requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. -
Page 30: Troubleshooting
05) If all of the above appears to be O.K., plug the unit in again. 06) If you are unable to determine the cause of the problem, do not open the Juno, as this may damage the unit and the warranty will become void. - Page 31 Juno Problem Probable cause(s) Solution • Check if power is switched on and One or more No power to the fixture fixtures do not cables are plugged in function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 32: Product Specifications
Juno Product Specifications Showtec Juno Model Input Voltage: 100~240VAC 50/60Hz Power consumption: 120W max. at full output Drive current: 1000mA Fuse: T2L/250V Dimensions: Dimensions: 260 x 150 x 316 mm (LxWxH) Weight: 5,2 Kg Operation and Programming Signal pin OUT:... -
Page 33: Dimensions
Juno Dimensions Ordercode: 45052... -
Page 34: Notes
Juno Notes Ordercode: 45052... - Page 35 Juno Ordercode: 45052...
- Page 36 ©2016 Showtec...
