X-Terminator

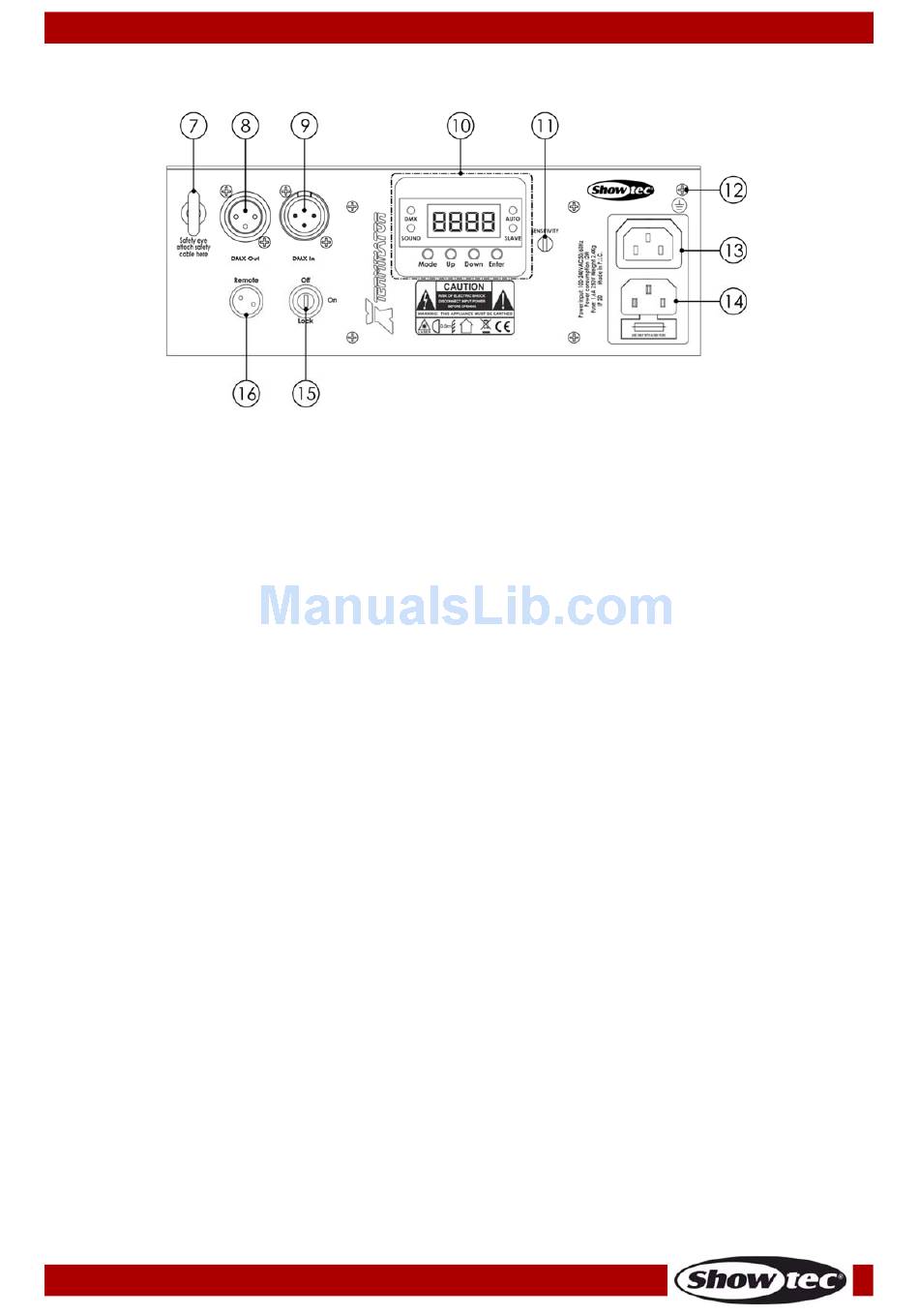

Backside
Fig. 02
07) Safety eye
08) 3-pin DMX signal connector OUT
09) 3-pin DMX signal connector IN
10) LED Display + LED indicators + control buttons
11) Sound sensitivity control
12) Ground/earth connection
13) IEC Power connector AC 100-240V OUT
14) IEC Power connector AC 100-240V IN + Fuse 1,6AL/250V
15) Interlock
16) Remote control plug
Ordercode: 43157
10
