Summary of Contents for SHOWTEC X-Terminator

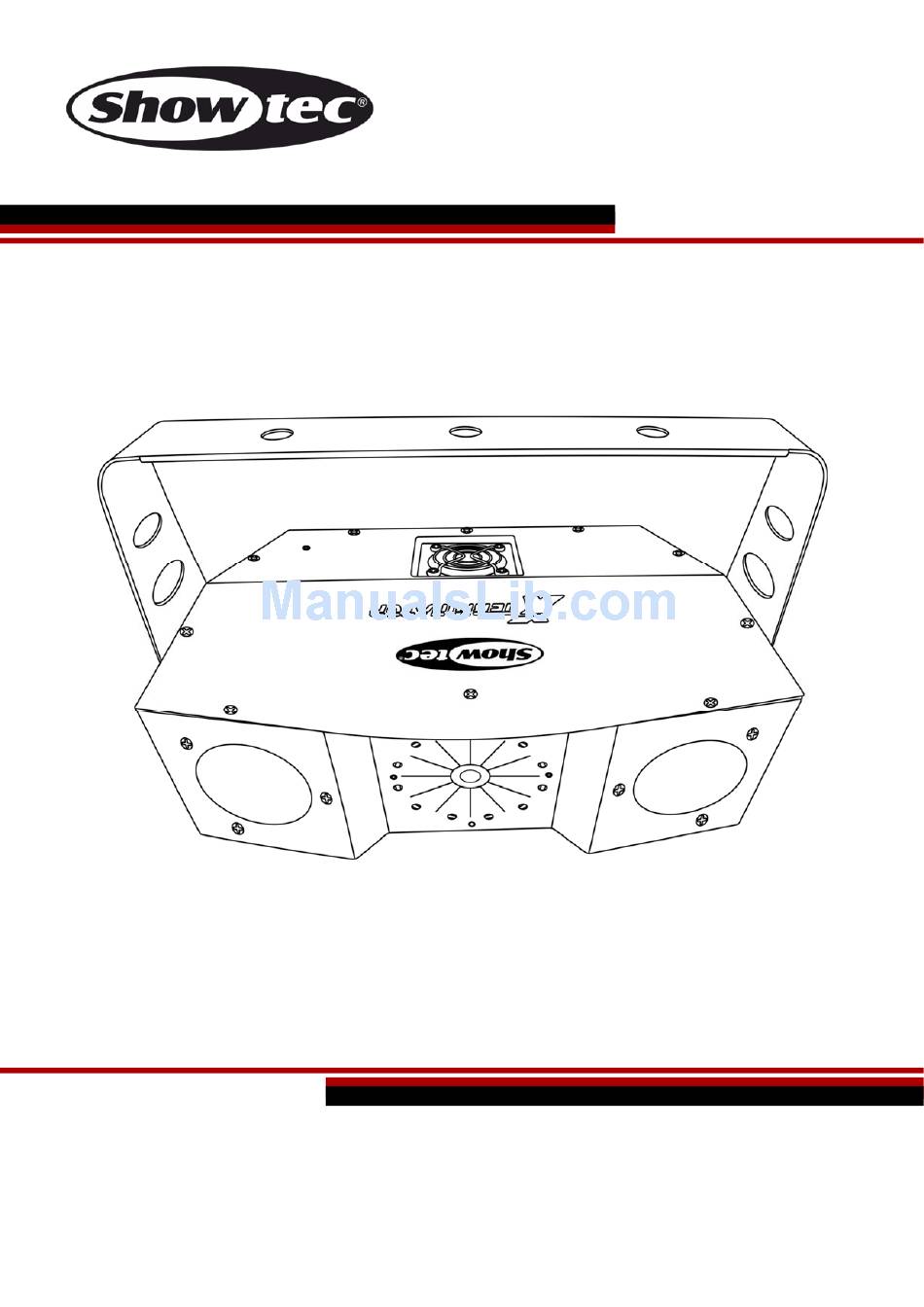

- Page 1 MANUAL ENGLISH X-Terminator Ordercode: 43157 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Installation ..................................11 Set Up and Operation ..............................11 Control Modes ................................. 13 One X-Terminator (Stand-alone) ........................13 One X-Terminator (Sound-controlled) ......................13 Multiple X-Terminators (Master/Slave Mode) ....................13 Multiple X-Terminators (DMX Control) ....................... 14 ... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec X-Terminator IEC power cable – 1,75 m ... -
Page 4: Safety Instructions
X-Terminator Safety Instructions Every person involved with the installation, operation and maintenance of this device have to: • be qualified • follow the instructions of this manual Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device. -
Page 5: Operating Determinations
• If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Laser Safety For A Class 3B Laser Product
The X-Terminator is a Class 3B laser product. Laser Safety and Compliance Information The X-Terminator is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and Drug Administration (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser notices. -
Page 7: Rigging
X-Terminator CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or binoculars within a distance of 100mm may pose an eye hazard. This laser product is a Class 3B laser and has an interlocked housing. -
Page 8: Connection With The Mains
X-Terminator The X-Terminator can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious damage to people and property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 9: Return Procedure
X-Terminator Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 10: Description Of The Device
X-Terminator Description of the device Features The X-Terminator is a laser effect with high output and great effects. • When using multiple units together, you can make a dazzling and cost effective beam show • Power Input: AC 100-240V, 60/50Hz •... -
Page 11: Backside
X-Terminator Backside Fig. 02 07) Safety eye 08) 3-pin DMX signal connector OUT 09) 3-pin DMX signal connector IN 10) LED Display + LED indicators + control buttons 11) Sound sensitivity control 12) Ground/earth connection 13) IEC Power connector AC 100-240V OUT... -
Page 12: Ir Remote Control
Any settings saved with the remote control will be stored until the system has been rebooted. Installation Remove all packing materials from the X-Terminator. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. - Page 13 ● The interlock plug should be placed on the backside (16) of your X-Terminator laser. ● The keys should be put into the lock (15) of your X-Terminator laser. Warning Exclusion of liability Be aware that in some countries, there are additional regulations, regarding the use of laser devices.
-
Page 14: Control Modes
03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) When the X-Terminator is not connected by a DMX-cable, it functions as a stand-alone device. 05) Please see page 18 for more information about the Built-in auto programs. -
Page 15: Multiple X-Terminators (Dmx Control)
X-Terminator Multiple X-Terminators (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 16: Fixture Linking
DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.). The X-Terminator can be operated with a controller in control mode or without the controller in stand- alone mode. -
Page 17: Control Panel
When using multiple X-Terminators, make sure you set the DMX addresses right. Therefore, the DMX address of the first X-Terminator should be 1(001); the DMX address of the second X- Terminator should be 1+11=12 (012); the DMX address of the third X-Terminator should be 12+11=23 (023), etc. -
Page 18: Menu Overview
X-Terminator Menu Overview Ordercode: 43157... -
Page 19: Main Menu Options
X-Terminator Main Menu Options Built-in programs Sound-controlled Master/Slave DMX-512 System Settings 1. Built-in Shows 01) Press the MODE button until the display shows 02) Press the ENTER button to enter the menu. 03) Press the UP and DOWN buttons to run one of the built-in shows: 04) Once your preferred show has been chosen, press the ENTER button to proceed to speed settings. -
Page 20: System Settings
X-Terminator 5. System Settings 01) Press the MODE button until the display shows 02) Press the ENTER button to enter the menu. 03) There are 3 options available. Press the UP and DOWN buttons to toggle between them: Power saving mode... -
Page 21: Channels
X-Terminator 11 channels Channel 1 – Color, Lens A 0-24 Laser off 25-49 50-74 Green 75-99 Blue 100-124 Red + Green 125-149 Red + Blue 150-174 Green + Blue 175-199 Red + Green + Blue 200-224 Color switch 225-255 Color flow Channel 2 –Strobe Effect, Lens A... - Page 22 X-Terminator Channel 7 – Color, Laser 10-49 Red on 50-89 Green on 90-129 Red + Green on 130-169 Red + Green strobe 170-209 Green on + Red strobe 210-255 Red/Green (alternating strobe) Channel 8 –Strobe Effect, Laser 10-254 Strobe speed, from slow to fast Sound control Channel 9 –...
-
Page 23: Maintenance
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the X-Terminator, as this may damage the unit and the warranty will become void. - Page 24 X-Terminator Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check that power is switched on and fixtures do not cables are plugged in. function at all. Primary fuse blown.. ● Replace fuse. Fixtures reset The controller is not connected.
-
Page 25: Product Specifications
X-Terminator Product Specifications Model: X-Terminator Input Voltage: AC 100-240V, 60/50Hz Continuous Power: 40 Watt Fuse: 1,6AL/250V Dimensions: 335 x 215 x 197 mm (LxWxH) Weight: 2,5 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) -
Page 26: Dimensions
X-Terminator Dimensions Ordercode: 43157... - Page 27 X-Terminator Ordercode: 43157...
- Page 28 ©2016 Showtec...
