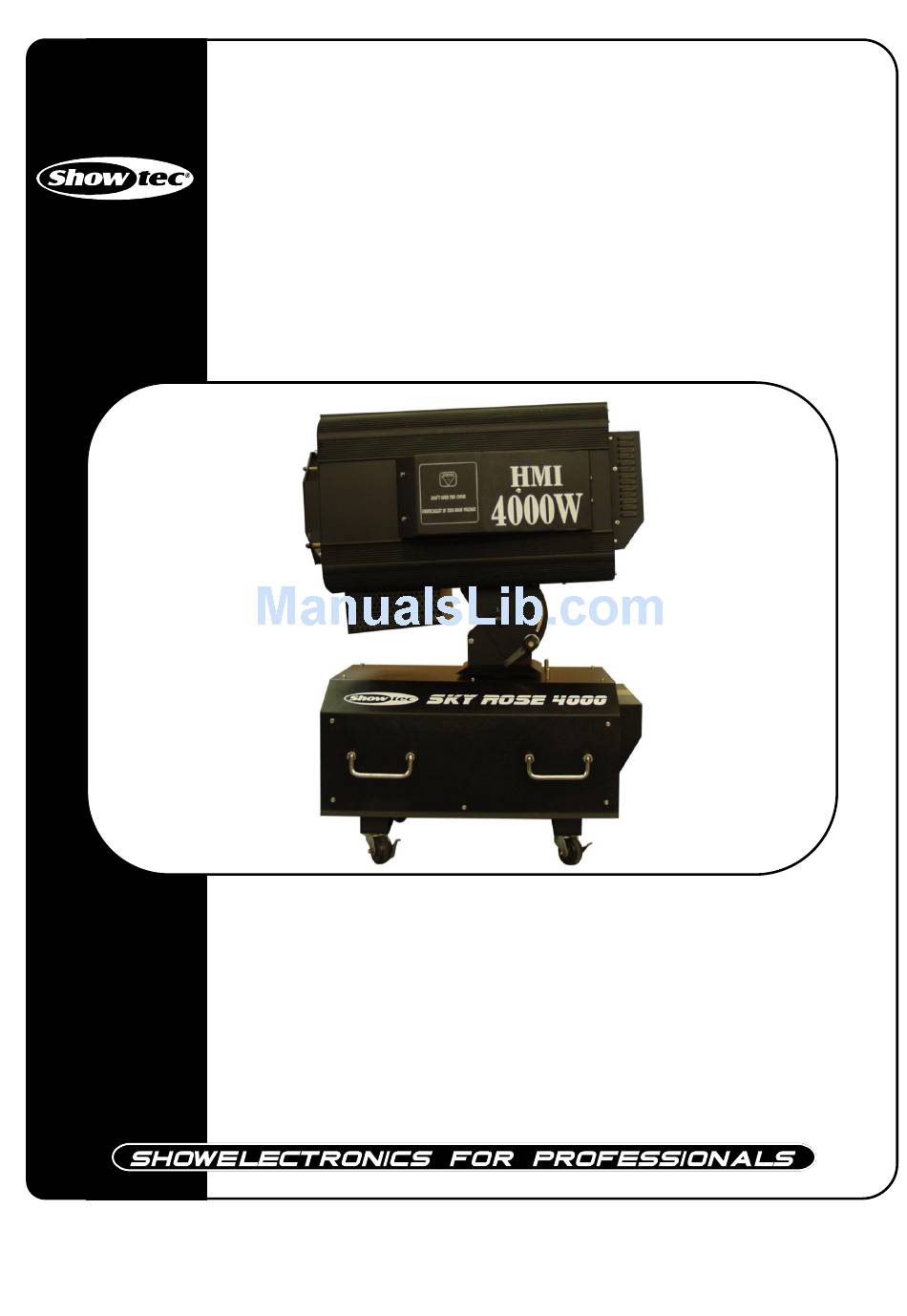

- Page 1 Sky Rose 4000 ORDERCODE 40951...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Sky Rose 4000 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Sky Rose 4000 Product Guide ™ Warning.................…...……………..…………………………….…………. Safety-instructions………………………………………………………………………………………………………. Operating Determinations.…………………………………………………………………………………………… Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….………… Features and Overview ………………………………...….……………….………….……….……….……………. Backside…………………………………………………...…...….……………….…………………...……………….. Installation................…...…………………………………………………..… Installing the Lamp ............…………………………………………………….……… Set Up and Operation..............……..……………………………………………. Maintenance...................………..………….…….……………………..…. Changing the Lamp................…………………….………………...……… Troubleshooting................………………….………………….……………… No Light, No Movement - All Products..........………………….…………………………. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Sky Rose 4000 • User manual WARNING... - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
CAUTION ! EYEDAMAGES !. Avoid looking directly into the light source. (meant especially for epileptics) ! OPERATING DETERMINATIONS • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. •... -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description
Description of the device Features The Showtec Sky Rose 4000 is an immensely powerful color changer with great effects. • Control the Sky Rose with the included controller • IP-23 Protection degree • Stand-alone control or Master –Slave control • Lamp 4000W not included Note: If the lamp has been turned OFF, let the lamp cool down for 15 minutes, before turning the lamp ON again. -
Page 9: Installation
Installation Installing the Lamp The Showtec Sky Rose 4000 uses the 4000W (ordercode 82650) bulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 11: Set Up And Operation
7) LEFT: Manually move Sky Spot Left 8) RIGHT: Manually move Sky Spot Right 9) Blackout: Shutter is closed. 10) Open: Shutter open after blackout 11) Focus No Function on Sky Rose 4000 12) Reset the Sky Rose 13) AUTO / MANUAL 14) Min-Max Angle: Pan... -
Page 12: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Sky Rose 4000 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. - Page 13 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Fuse blown. · Return the Sky Rose to your dealer. completely dead. Fixtures reset The controller is not connected.
-
Page 14: Product Specifications
Product Specification Model: Showtec Sky Rose 4000 Voltage: 380V-400V ~ 2 Fase L1-L2 Power: 4150W Driving Current: 16A Working Current: 16A Dimensions: 410 x 640 x 850mm (LxWxH) Flightcase Dimensions: 700 x 515 x 880 mm (LxWxH) Weight: 88 kg...
