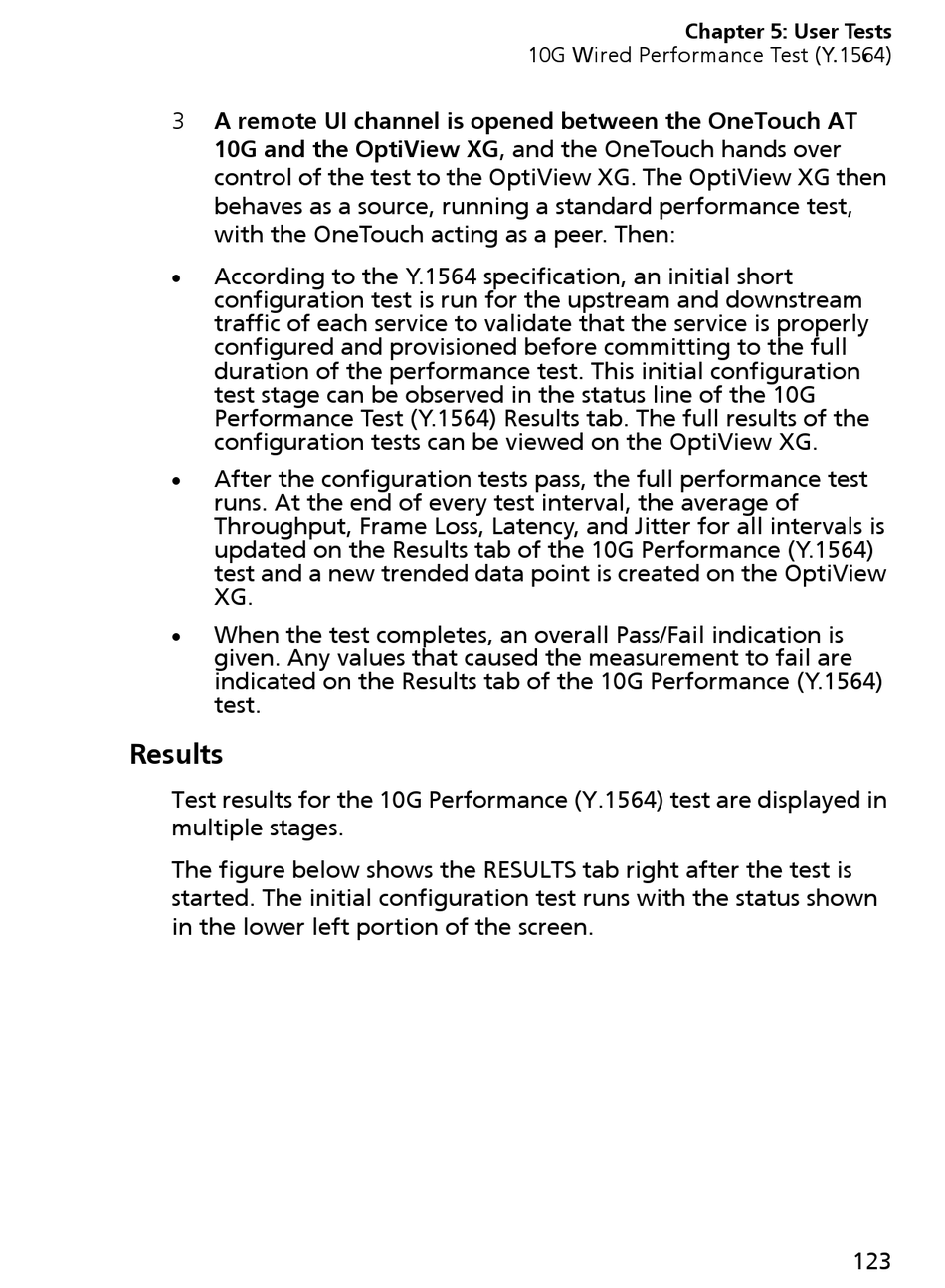

A remote UI channel is opened between the OneTouch AT
3
10G and the OptiView XG, and the OneTouch hands over
control of the test to the OptiView XG. The OptiView XG then
behaves as a source, running a standard performance test,
with the OneTouch acting as a peer. Then:
According to the Y.1564 specification, an initial short
configuration test is run for the upstream and downstream
traffic of each service to validate that the service is properly
configured and provisioned before committing to the full
duration of the performance test. This initial configuration
test stage can be observed in the status line of the 10G
Performance Test (Y.1564) Results tab. The full results of the
configuration tests can be viewed on the OptiView XG.
After the configuration tests pass, the full performance test
runs. At the end of every test interval, the average of
Throughput, Frame Loss, Latency, and Jitter for all intervals is
updated on the Results tab of the 10G Performance (Y.1564)
test and a new trended data point is created on the OptiView
XG.
When the test completes, an overall Pass/Fail indication is
given. Any values that caused the measurement to fail are
indicated on the Results tab of the 10G Performance (Y.1564)
test.

Results

Test results for the 10G Performance (Y.1564) test are displayed in
multiple stages.
The figure below shows the RESULTS tab right after the test is
started. The initial configuration test runs with the status shown
in the lower left portion of the screen.
Chapter 5: User Tests
10G Wired Performance Test (Y.1564)
123
