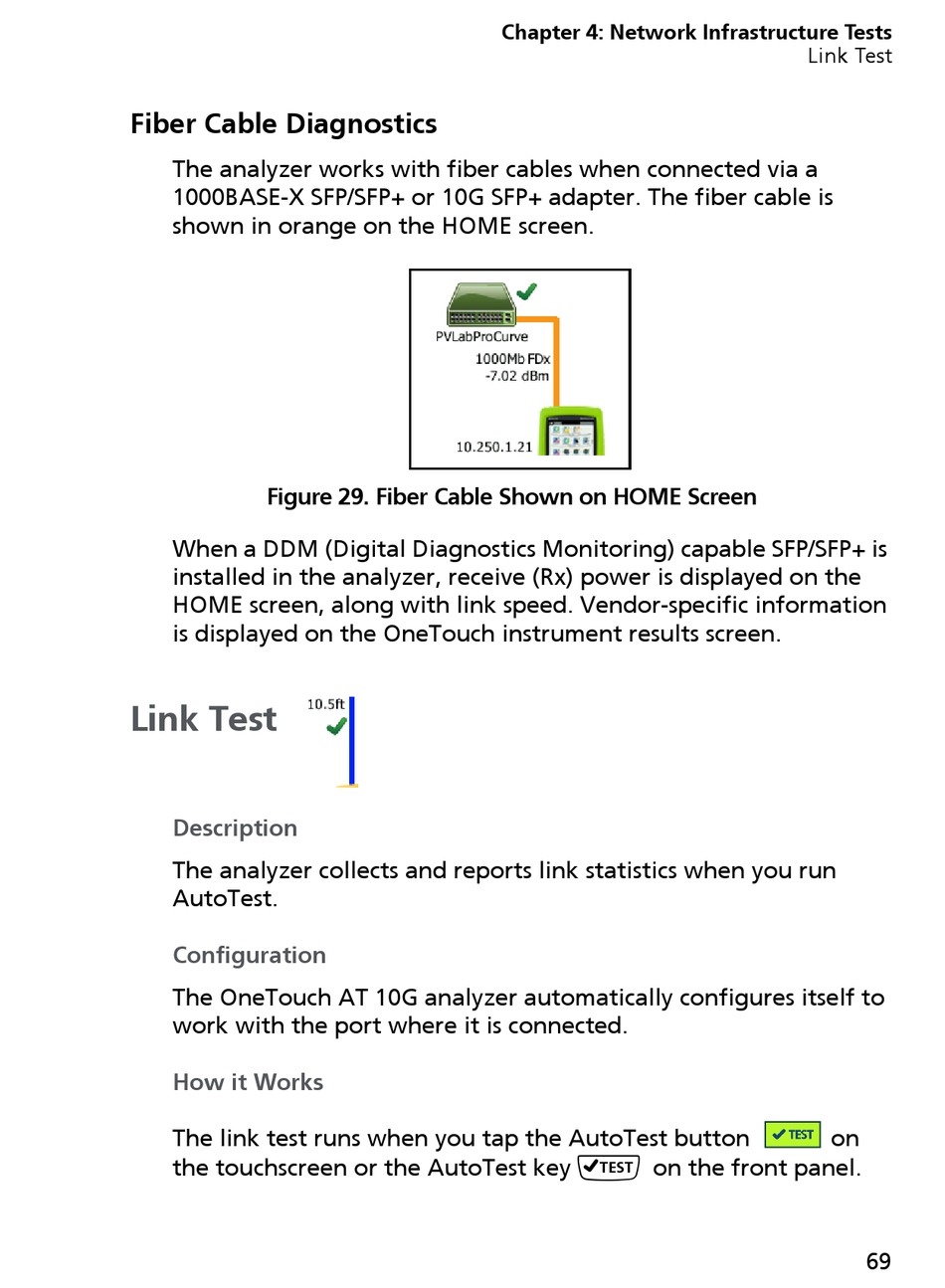

Fiber Cable Diagnostics
The analyzer works with fiber cables when connected via a
1000BASE-X SFP/SFP+ or 10G SFP+ adapter. The fiber cable is
shown in orange on the HOME screen.
Figure 29. Fiber Cable Shown on HOME Screen
When a DDM (Digital Diagnostics Monitoring) capable SFP/SFP+ is
installed in the analyzer, receive (Rx) power is displayed on the
HOME screen, along with link speed. Vendor-specific information
is displayed on the OneTouch instrument results screen.
Link Test
Description
The analyzer collects and reports link statistics when you run
AutoTest.
Configuration
The OneTouch AT 10G analyzer automatically configures itself to
work with the port where it is connected.
How it Works
The link test runs when you tap the AutoTest button
the touchscreen or the AutoTest key
Chapter 4: Network Infrastructure Tests
on the front panel.
Link Test
on
69
