Table of Contents

1 Getting Started
Panel Descriptions ....................................................................2
Front View ..........................................................................2
Rear View ...........................................................................3
Installation ................................................................................4
Basic Connections ..............................................................4
Connecting to the ZyPerMX ................................................4
Using Bonjour Discovery .....................................................5
Sample Application Diagram ...............................................6
2 Basic Operation
The Maestro Web Interface .......................................................8
Logging In ..........................................................................8
Network Configuration ........................................................9
IP Stream Configuration ....................................................11
Adjusting Audio and Video Settings ..................................15
Displaying Device Information...........................................18
Changing the Device Name ...............................................19
Resetting the ZyPerMX .....................................................20
Rebooting the ZyPerMX ....................................................21
Setting the Password .......................................................22
Recovering a Lost Password .............................................23
Updating the Firmware .....................................................24
Using Custom Screens and Icons .....................................25
The Support Page .............................................................27
3 Appendix
Specifications ..........................................................................30
Index .......................................................................................32
Warranty .................................................................................34
iv
1 Getting Started
Panel Descriptions

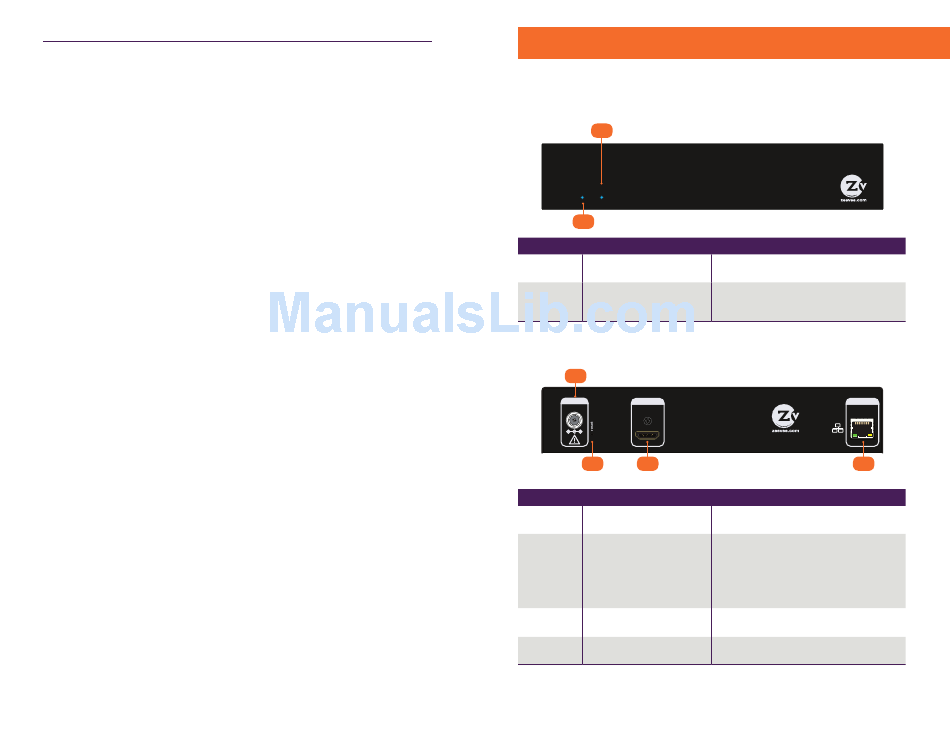

Front View
2
High Performance
Video Encoder
IP Streaming Output
POWER STATUS
1
ID Name
High Performance
Video Encoder
IP Streaming Output
1 POWER
2 POWER STATUS STATUS
POWER MEDIA INPUT
ZyPerMX
+12VDC 1.0A HDMI In
up to 1080p
High Performance
Video Encoder
IP Streaming Output
Rear View
1
POWER
MEDIA INPUT
ZyPerMX
HDMI In
+12VDC 1.0A
up to 1080p
High Performance
Video Encoder
IP Streaming Output
2 3
ID Name
1 POWER
2 Reset
3 HDMI In
4 TRANSPORT
ZyPerMX
Description
ZyPerMX
This LED indicator glows bright blue when
the ZyPerMX is powered.
This LED glows bright blue when the
System Boot Process is complete and the
TRANSPORT
ZyPerMX unit is functioning normally.
Ethernet (POE)
10/100/1000
TRANSPORT
Ethernet (POE)
10/100/1000
4
Description
Connect the included 12V DC power
supply to this power receptacle.
Press and hold this button for
approximately 5 seconds, then release,
to reset the ZyPerMX encoder to
factory-default settings. See Resetting
the ZyPerMX (page 15) for more
iniformation.
Connect an HDMI cable from this port to
the HD video source.
Connect an Ethernet cable from this port to
a switch on the Local Area Network.
1
