Using Custom Screens and Icons

When no video is being passed from the ZyPerMX to the decoder/display, a blank
background will be displayed. This can be changed to display a custom graphic.
Icons are designed for use with the ZyPerMXe and can be associated with the IP stream
in the MXe interface.

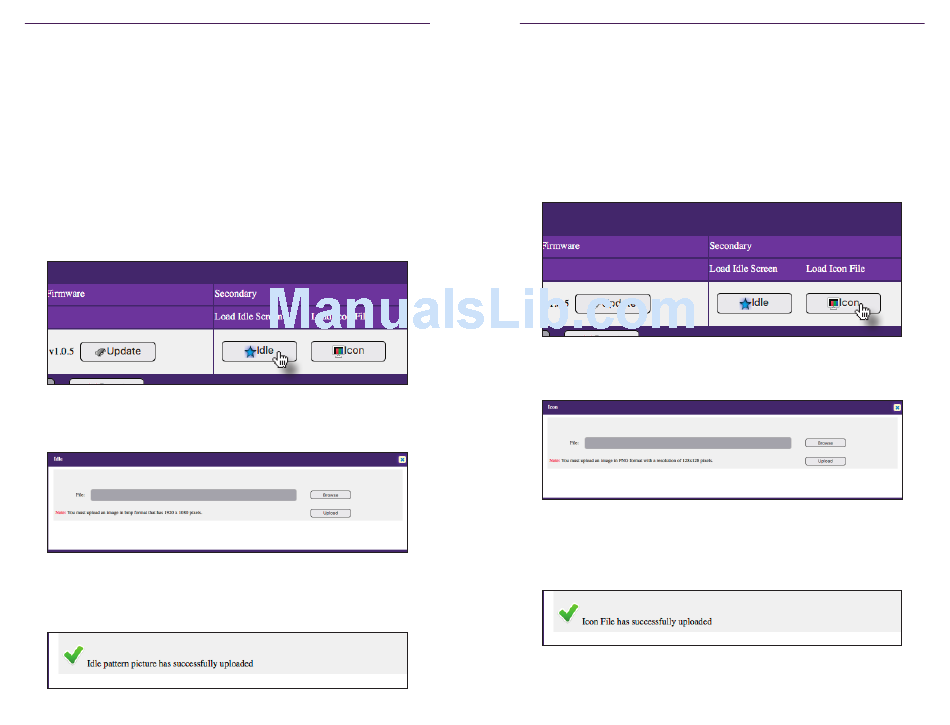

► Adding a Custom Screen
1. Login to the Maestro web interface. See
more information.
2. Click the Device tab.
3. Click the Idle button, under Secondary.
4. The following dialog will be displayed. Click the Browse button to select the desired
image. The image must be a 24-bit (8 bits per color channel) .bmp file at a resolution
of 1920 x 1080 pixels.
5. Click the Upload button to upload the image to the ZyPerMX.
6. Once the upload has been completed, the following message will appear in the Idle
dialog.
Basic Operation
The Maestro Web Interface (page 4) for
20
► Adding a Custom Icon
NOTE: Icons that are uploaded to the ZyPerMX will only be available when using the
ZyPerMXe interface.
1. Login to the Maestro web interface. See
more information.
2. Click the Device tab.
3. Click the Icon button, under Secondary.
4. The following dialog will be displayed. Click the Browse button to select the desired
image. The image file must be in .png format and have a resolution of 128 x 128
pixels.
5. Click the Upload button to upload the image to the ZyPerMX.
6. Once the upload has been completed, the following message will appear in the Icon
dialog.
Basic Operation
The Maestro Web Interface (page 4) for
21
