ZvPro 280
HD MPEG2 Encoder / QAM Modulator
Get Going Guide
ZvPro 280 is a 1U combination HD MPEG 2 Encoder and
frequency agile QAM Modulator. It allows you to convert
any HD video source, Component or RGB (VGA), in real‐
time and very high quality into an HDTV cable
channel. This channel is placed onto standard COAX
wiring, where it can be combined with up to 134 other
HDTV channels and distributed over an entire premise.
This guide will take you through a typical installation
procedure, and will have you broadcasting your own
HDTV channel in less than 10 minutes. For additional
assistance or more complex installations, please refer to
the Zv Support page at www.zeevee.com, where you will
find answers to frequently asked questions, and helpful
tips from ZeeVee experts. If you still cannot find the
answers you need, our technical support hotline at 877‐
5ZEEVEE (877‐593‐3833) is here to help.
Advertisement
Table of Contents
Related Manuals for ZeeVee ZvPro 280
Summary of Contents for ZeeVee ZvPro 280
- Page 1 ZvPro 280 HD MPEG2 Encoder / QAM Modulator Get Going Guide ZvPro 280 is a 1U combination HD MPEG 2 Encoder and frequency agile QAM Modulator. It allows you to convert any HD video source, Component or RGB (VGA), in real‐ time and very high quality into an HDTV cable channel. This channel is placed onto standard COAX wiring, where it can be combined with up to 134 other HDTV channels and distributed over an entire premise. This guide will take you through a typical installation procedure, and will have you broadcasting your own HDTV channel in less than 10 minutes. For additional assistance or more complex installations, please refer to the Zv Support page at www.zeevee.com, where you will find answers to frequently asked questions, and helpful tips from ZeeVee experts. If you still cannot find the answers you need, our technical support hotline at 877‐ 5ZEEVEE (877‐593‐3833) is here to help. ...
- Page 2 Power cord must be accessible to allow for the be placed in proximity to the unit such that removal of power from the unit. they present a risk of spillage onto the apparatus. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. FCC Statement FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. ZvPro 280 www.zeevee.com Page 2 of 8 ZvPRO280_GGG_v1...
-
Page 3: Table Of Contents

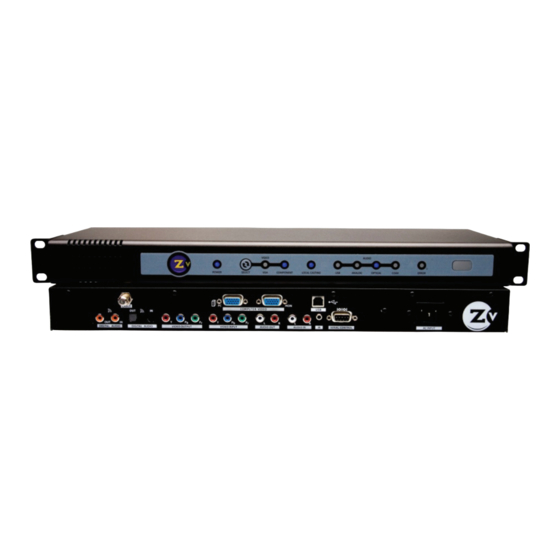

ZvPro 280 (ZP280‐NA) (Shown with rack mount hardware attached) User Manual AC Power Cord Get Going Guide USB Cable Table of Contents Getting Started .................... 4 ‐5 Front Panel ...................... 4 Back Panel ....................... 4 Basic Installation .................... 5 Contact ZeeVee ...................... 6 Warranty ....................... 6 ZvPro 280 www.zeevee.com Page 3 of 8 ZvPRO280_GGG_v1... -
Page 4: Getting Started
6 Component Video output, RCA Looped output for video received at Component Video input, RCA connectors 75 ohm connectors, 75 Ohm 7 Component Video input, RCA Accepts Component Video input connectors, 75 Ohm 8 VGA (RGB) input; HD‐15 connector Accepts standard VGA input 9 VGA (RGB) output; HD‐15 connector Looped output from VGA (RGB) input 10 Analog audio output, R/L RCA Looped output for analog L/R audio input, RCA connectors connectors 11 Analog audio input, R/L RCA connectors Input for analog L/R audio 12 USB audio/control Operates as USB audio device connection, or control interface 13 IR port; 1/8” mini jack Accepts IR commands 14 RS‐232 serial control Console port for system control 15 AC input AC power cord, 120 volt ZvPro 280 www.zeevee.com Page 4 of 8 ZvPRO280_GGG_v1... -
Page 5: Basic Installation
Basic Installation Factory default settings in the product allow ZvPro 280 to broadcast a component HD source with analog audio on channel 2.1, over coax cabling, for reception at connected HDTVs. 1. Plug ZvPro 280 power cord into AC outlet. 2. Connect Component Video output of HD source to Component Video Input of ZvPro 280. 3. Connect L/R analog audio output of HD source to L/R analog audio input of ZvPro 280.* 4. Connect coaxial output of ZvPro 280 to HDTV RF Input. 5. Tune HDTV to channel 2.1 to view Zv channel. *Default audio input is L/R analog. For information on customizing ZvPro for alternative audio inputs, changing RF output channel, etc., go to http://www.zeevee.com/configuration and download the ZvConfig utility. Important: ZeeVee regularly makes improvements to video and audio quality, and overall functionality. Always check for updated firmware for your ZvBox before deploying the unit. This is done in the ZvConfig utility. ZvPro 280 www.zeevee.com Page 5 of 8 ZvPRO280_GGG_v1... -
Page 6: Contact Zeevee
Contact ZeeVee For support, repairs and warranty service: 877‐5ZEEVEE (877‐593‐3833) Warranty Limited Three Year Warranty ZeeVee warrants your ZvPro 280 (ZP280‐NA) against defects in materials and workmanship for a period of three years from the date of purchase. Visit www.zeevee.com for complete warranty details. To Get Warranty Service Warranty service will be provided by ZeeVee. If you believe you need service for your ZvPro 280 (ZP280‐ NA), please contact ZeeVee directly by calling ZeeVee Support at (877) 593‐3833. If it is determined that the product needs to be returned for service or exchange, you will receive a Return Material Authorization (“RMA”) number. Our agents will help you through the process through which you can return the product. ZeeVee is not responsible for Customer products received without an RMA number and may reject such products. To Get Out‐Of‐Warranty Service To obtain out‐of‐warranty service for your ZvPro 280 (ZP280‐NA), please contact ZeeVee by calling ZeeVee Support at (877) 593‐3833 for information on the possibility of and any costs for repair or replacement of out‐of‐warranty products. No agent, company, dealer, distributor, or person is authorized to change, modify, or extend the terms of these warranties in any manner. ZvPro 280 www.zeevee.com Page 6 of 8 ZvPRO280_GGG_v1... - Page 7 This page intentionally left blank ZvPro 280 www.zeevee.com Page 7 of 8 ZvPRO280_GGG_v1...
- Page 8 zeevee.com ...
