- Page 1 ZvPro 600i C ONF IGURAT ION G U IDE i - S E R I E S ZvPro610i • ZvPro620i...
- Page 2 I N S T R U C T I O N S P E R TA I N I N G T O A R I S K O F F I R E , E L E C T R I C S H O C K , O R I N J U R Y T O P E R S O N S Important Safety Instructions.
-
Page 3: Table Of Contents
Warranty ..... 15 Contact ZeeVee ....16... -
Page 4: Front And Back Panels

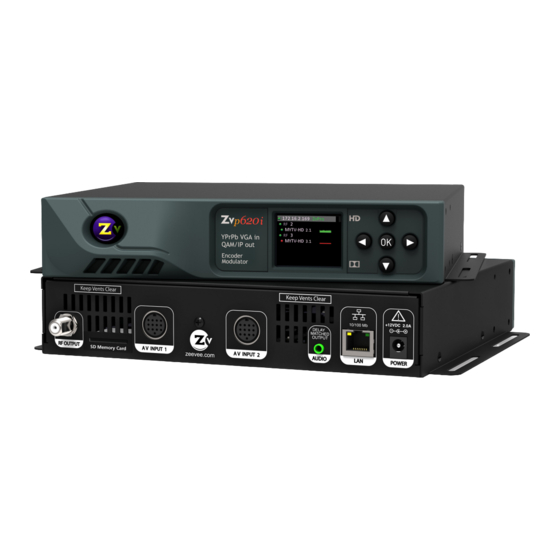

Front and Back Panels Model Number Name and description of unit Color Display Configuration and system status 5-Way Control Navigate options on front panel display Coax Output One channel or one channel pair, frequency-agile QAM RF CATV output channels for up to 2 video sources. -
Page 5: Basic Rf Installation
Basic RF Installation Factory default settings allow ZvPro 600i series modulators to broadcast up to two sources on RF channels 2 and 3 for reception at connected HDTVs. We recommend using the most updated version of firmware. You can find the latest version on the Support section of our website. Audio Out Video Out Video Out... -
Page 6: Front Panel Configuration
Red — No video detected You can set the RF broadcast channels or implement delay matched audio using the front panel controls. In many cases, your ZeeVee modulator will require only these configurations. Setting the RF broadcast channel, To update firmware: RF power or audio delay •... -
Page 7: Cable Tv Channels Vs Rf Frequency (Mhz) Map
Cable TV Channels vs RF Frequency (MHz) Map Map for configuring RF numbers and virtual channels RF Ch. Band (MHz) RF Ch. Band (MHz) RF Ch. Band (MHz) RF Ch. Band (MHz) RF Ch. Band (MHz) The Cable TV Channels vs RF 54-60 240-246 420-426... -
Page 8: Maestro Configuration
You can also set up IP streaming. Connecting with Maestro 1. Connect your computer directly to the ZeeVee modulator using a standard Ethernet cable (not a cross-over cable) or connect the unit and your computer to any LAN that has a DHCP server. -
Page 9: Configuring Ip Streaming
Internet distribution and will quickly overwhelm most Internet infrastructures. Similarly, unless the scope of WiFi distribution is managed correctly and sparingly, the distribution of the ZeeVee IP stream will also overwhelm most local Ethernet WiFi distribution schemes. -
Page 10: Using Other Maestro Tabs
Using the Maestro tabs Click on the Maestro tabs to configure your unit as needed. We provide brief information here. Please click on the Help button on each tab or refer to the Support section of our website for further detail on configuration options. THE AV SOURCE TAB Allows for specifying audio and video inputs and adjusting... - Page 11 THE DEVICE TAB Allows you to change the device password and update firmware as well as configure Emergency Alerts System (EAS). You can find detailed information on EAS in the Support section of the website. THE NETWORK TAB Allows you to assign a static IP address.
-
Page 12: Troubleshooting
IP subnet for them to communicate. For details on how to check for a static IP address, please see the FAQ section of our website. If the page loads, but all you see is a purple background and the ZeeVee logo (and are not prompted ... - Page 13 system. Feed the audio to the ZeeVee unit and send it to the HDTV with the video. Then take the audio out from an HDTV or external QAM tuner (such as the ZvSync) and connect it to your audio system. The audio should have a similar amount of delay since it has gone through the encoding and decoding process just as the video did.
- Page 14 (intentionally blank)
-
Page 15: Warranty
LIMITATION OF LIABILITY and in lieu of all other warranties, guarantees, limited warranties. Except in the case of hardware In no event will ZeeVee be liable for any amount agreements and similar obligations of ZeeVee. or software provided by ZeeVee, installing greater than the retail price of the ZeeVee modifications, “hacks,”... -
Page 16: Contact Zeevee
Year Warranty Ways to Register Maestro ..Click on “ZeeVee Website” in the Support Tab when you begin your configuration Click on the QR code with your Mobile ..mobile device’s code reader app Online ..Go to zeevee.com/register Contact ZeeVee Email ..
