ZvBox 150
HD video distribution over COAX
Get Going Guide

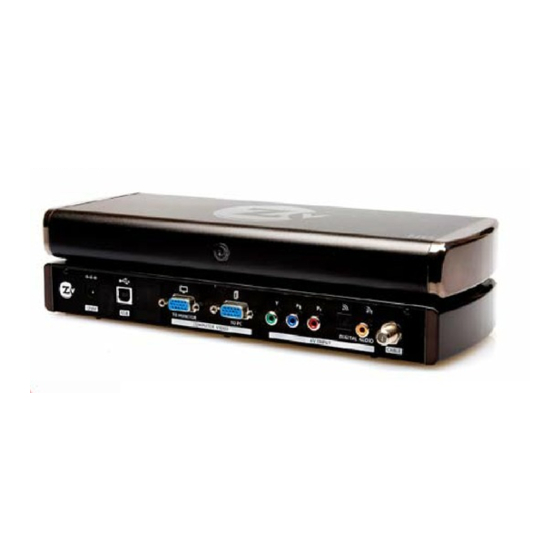

ZvBox 150 is an HD MPEG 2 Encoder and frequency agile
QAM Modulator. It allows you to convert any HD video
source, Component or RGB (VGA), in real‐time and very
high quality into an HDTV cable channel. This channel is
placed onto standard COAX wiring, where it can be
combined with up to 134 other HDTV channels and
distributed over an entire premise.
This guide will take you through a typical installation
procedure, and will have you broadcasting your own
HDTV channel in less than 10 minutes. For additional
assistance or more complex installations, please refer to
the Zv Support page at www.zeevee.com, where you will
find answers to frequently asked questions, and helpful
tips from ZeeVee experts. If you still cannot find the
answers you need, our technical support hotline at 877‐
5ZEEVEE (877‐593‐3833) is here to help.
Advertisement
Related Manuals for ZeeVee ZvBox 150
Summary of Contents for ZeeVee ZvBox 150
- Page 1 ZvBox 150 HD video distribution over COAX Get Going Guide ZvBox 150 is an HD MPEG 2 Encoder and frequency agile QAM Modulator. It allows you to convert any HD video source, Component or RGB (VGA), in real‐time and very high quality into an HDTV cable channel. This channel is placed onto standard COAX wiring, where it can be combined with up to 134 other HDTV channels and distributed over an entire premise. This guide will take you through a typical installation procedure, and will have you broadcasting your own HDTV channel in less than 10 minutes. For additional assistance or more complex installations, please refer to the Zv Support page at www.zeevee.com, where you will find answers to frequently asked questions, and helpful tips from ZeeVee experts. If you still cannot find the answers you need, our technical support hotline at 877‐ 5ZEEVEE (877‐593‐3833) is here to help. ...
- Page 2 Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. ZvBox www.zeevee.com Page 2 of 8 Zv150_GGG_v1.1 ...
-
Page 3: Table Of Contents
DC Power Supply • VGA Cable • USB Cable • Coaxial Cables • Coax Splitters • Channel Filter • Get Going Guide Table of Contents Getting Started .................... 4 ‐5 Back Panel ....................... 4 Basic Installation .................... 5 Contact ZeeVee ...................... 6 Warranty ....................... 6 Specifications ...................... 7 ZvBox www.zeevee.com Page 3 of 8 Zv150_GGG_v1.1 Zv150_GGG_v1_0 ... -
Page 4: Getting Started
Item Description Function 1 DC Power DC power input, 12 volt 2 USB Audio/Control Operates as USB audio device connection or control interface 3 VGA Loop Through Looped output from VGA (RGB) input 4 VGA Input; HD‐15 connector Accepts standard VGA input 5 Component Video Input, RCA RCA connectors, accepts component video input connectors, 75 ohm 6 SPDIF digital audio input, Toslink Accepts digital audio input (PCM, or AC3) connector 7 SPDIF digital audio input, coaxial Accepts digital audio input (PCM, or AC3) connector 8 Coax Output Outputs encoded video as a well‐formed QAM channel ZvBox www.zeevee.com Page 4 of 8 Zv150_GGG_v1.1 Zv150_GGG_v1_0 ... -
Page 5: Basic Installation
Basic Installation Back of ZvBox Factory default settings in the product allow ZvBox 150 to broadcast a component HD source with digital audio on channel 2.1, over coax cabling, for reception at connected HDTVs. 1. Plug ZvBox 150 power supply into AC outlet, and into DC input on Zv 150. 2. Connect Component Video output of HD source* to Component Video Input of ZvBox 150. 3. Connect coaxial digital audio output of HD source to coaxial digital audio input on ZvBox 150.** 4. Connect coaxial output of ZvBox 150 to HDTV RF Input. 5. Tune HDTV to channel 2.1 to view Zv channel. Configuration and firmware updates are done via a software application called ZvCli. Visit www.zeevee.com/commercial/zvcli for a user manual and to download ZvCli. For help with installing ZvBox onto a Coax network and using the optional channel filter, please see our Advanced Installation manual, found on the ZeeVee website: www.zeevee.com/commercial/documentation *Make sure the source component’s video output is set to 720p. **Default audio input is SPDIF coaxial digital. ZvBox www.zeevee.com Page 5 of 8 Zv150_GGG_v1.1 Zv150_GGG_v1_0 ... -
Page 6: Contact Zeevee
Contact ZeeVee For support, repairs and warranty service: 877‐5ZEEVEE (877‐593‐3833) Warranty Limited One Year Warranty ZeeVee warrants your ZvBox 150 (ZV150‐NA) against defects in materials and workmanship for a period of one year from the date of purchase. Visit www.zeevee.com for complete warranty details. To Get Warranty Service Warranty service will be provided by ZeeVee. If you believe you need service for your ZvBox 150 (ZV150‐ NA), please contact ZeeVee directly by calling ZeeVee Support at (877) 593‐3833. If it is determined that the product needs to be returned for service or exchange, you will receive a Return Material Authorization (“RMA”) number. Our agents will help you through the process through which you can return the product. ZeeVee is not responsible for Customer products received without an RMA number and may reject such products. To Get Out‐Of‐Warranty Service To obtain out‐of‐warranty service for your ZvBox 150 (ZV150‐NA), please contact ZeeVee by calling ZeeVee Support at (877) 593‐3833 for information on the possibility of and any costs for repair or replacement of out‐of‐warranty products. No agent, company, dealer, distributor, or person is authorized to change, modify, or extend the terms of these warranties in any manner. ZvBox www.zeevee.com Page 6 of 8 Zv150_GGG_v1.1 Zv150_GGG_v1_0 ... -
Page 7: Specifications
SPDIF Digital Audio Operating +32° to +95°F (0° to +35°C) / Modulator / Upconverter Physical Connections 20% to 80%, non‐condensing Modulation Types TOSLINK optical, RCA and USB MTBF – 30,000 hours QAM 256 (ITU‐T J83 Annex B) Formats Compliance Cable Standard 48K bit PCM Safety UL60065 HRC, IRC or STD AC‐3 Pass‐through FCC Class B Frequency Range Part number ‐ ZV150‐NA Video Encoder 50 – 900 MHz (channels 2‐141) Model name ‐ ZvBox 150 Encoder Video Profile Output Power Warranty ‐ 1 year MPEG2 HD Profile 2: ISO13818‐2 +25 dBmV typical MP@HL (1280x720) Output Level Adjust Video Transport Bit Rate 38.78 Mbps 0 – 20 dB of attenuation in 5dB steps ZvBox www.zeevee.com Page 7 of 8 Zv150_GGG_v1_0 Zv150_GGG_v1.1... - Page 8 ZeeVee, Inc • One Monarch Drive • Littleton, MA 01460 ...
