USB
3
WAN,LAN
4
1~4,(5~8),
5
(9~16)

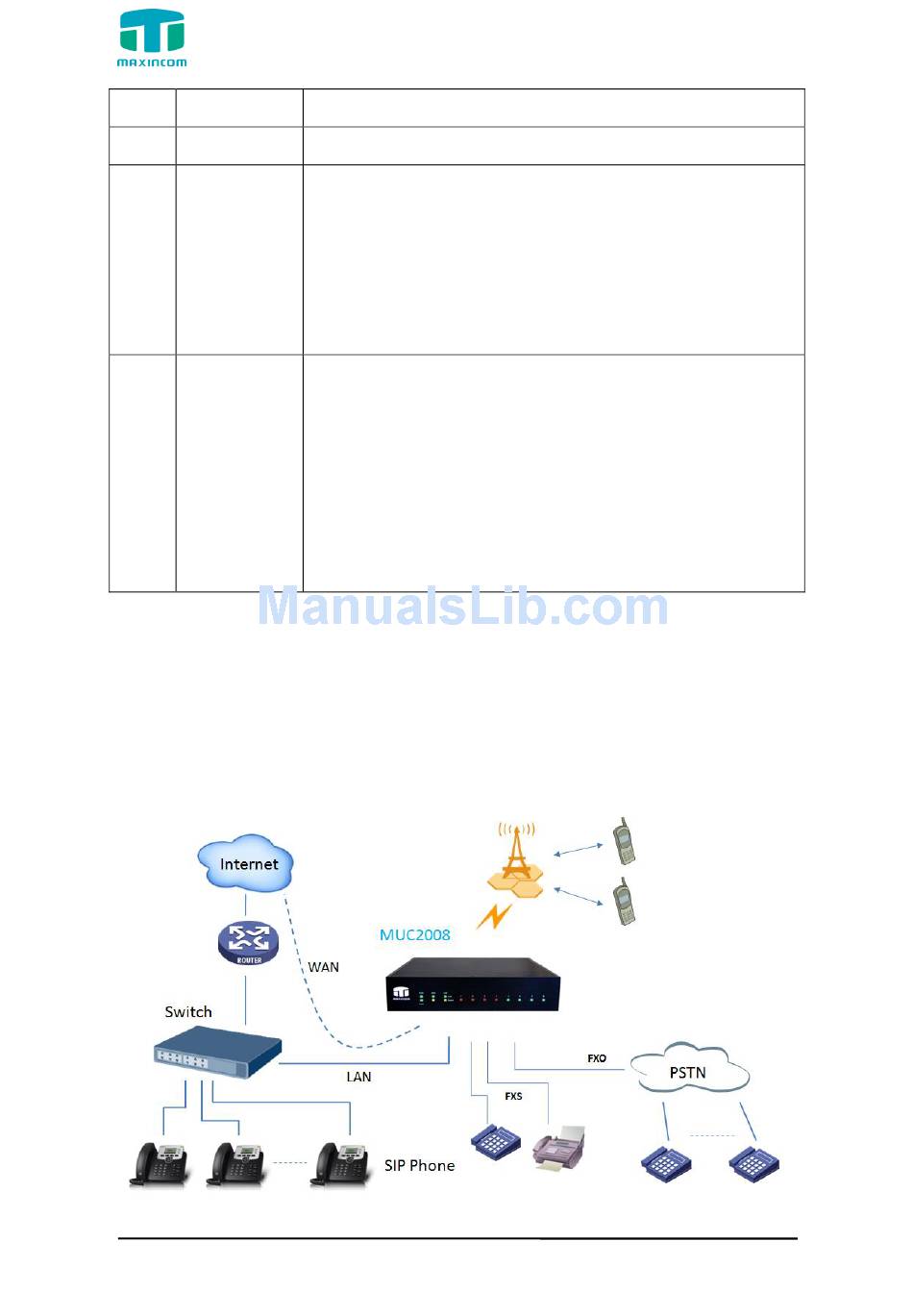

1.4 Scenario of Application

Application 1
Http://www.maxincom.com
MUC1004/2008/2016 Administrator guide
1A(MUC1004 only)
For the storage of call recording files
MUC2008 provides two 10/100 adaptive RJ45 Ethernet
ports, marked as LAN and WAN.
-LAN port :LAN port is for the connection to Local Area
Network
-WAN port:WAN port is the netword port for the
connection to internet. It supports "DHCP
server","PPPoE/dynamic DNS",and"static IP"for IP
address assignment.
FXO port(red light):For the connection of PSTN lines or
FXS port of traditional PBX.MU2008 uers could make or
receive calls via FXO port.
FXS port(green light):For the connection of analog
phones.
BRI port(orange port):For the connection of ISDN BRI
lines. MU2008 uers could make or receive calls via BRI
port.
Note:The sequence number of the port corresponds to
that of the indicator lights in the front panel.
Figure 1.4.1
