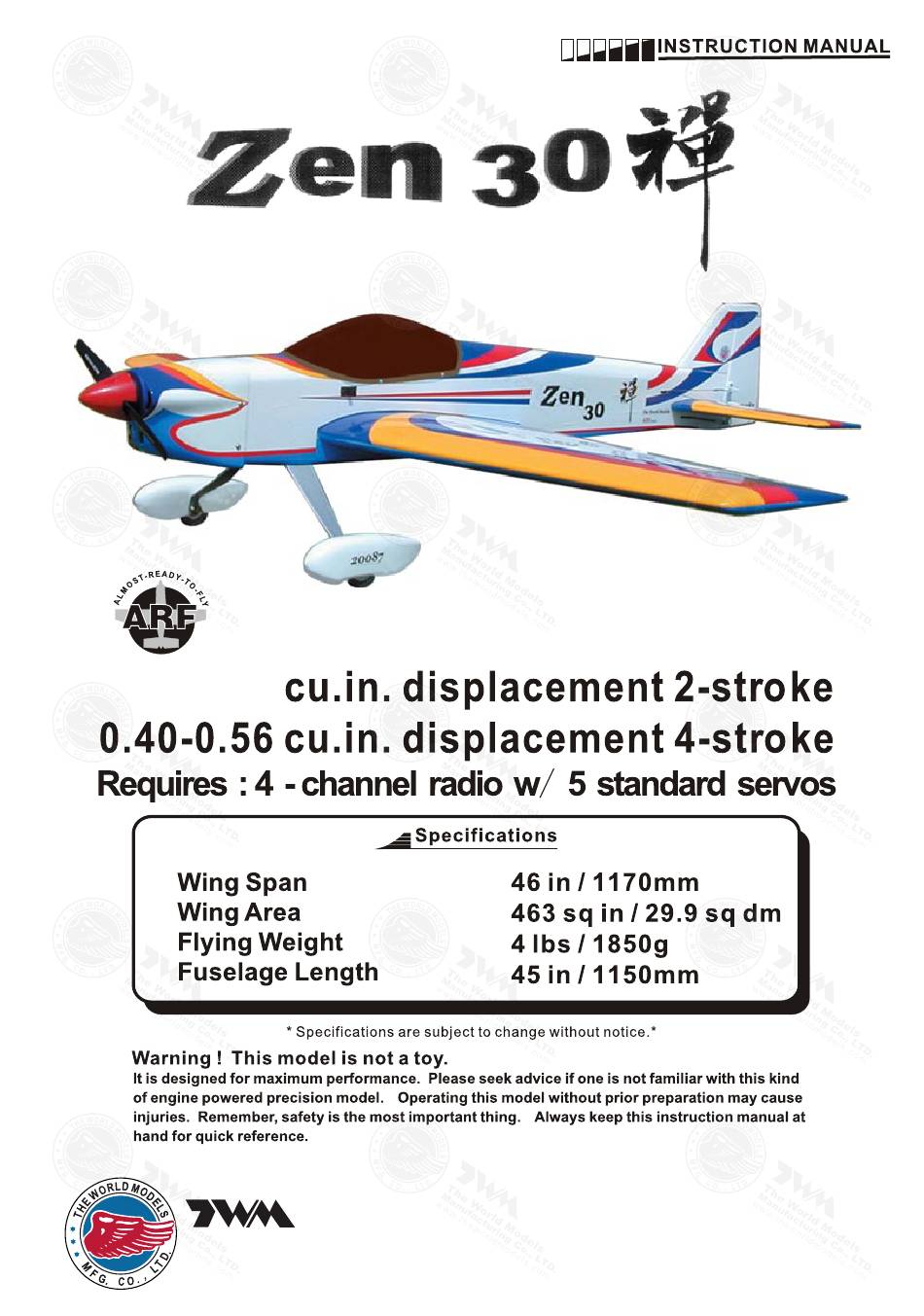

- Page 1 0.25-0.35 FACTORY PRE-FABRICATED The World Models Manufacturing Co., LTD. ALMOST-READY-TO-FLY (ARF) SERIES MADE IN CHINA www.theworldmodels.com A109PO23361005...
- Page 2 Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you find to be defective after the gluing process may be difficult to remove for warranty replacement.
-
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 11. ENGINE MOUNT PL5111030 -- 1 set SOCKET HEAD SCREW M3x20mm -- 4 pcs WASHER d3xD7mm -- 4 pcs 2. SCREW PWA2x8mm -- 8 pcs SERVO MOUNTING PANEL -- 2 pairs 12. FUEL TANK 260cc -- 1 set BALSA 8x8x76mm (For Fuel Tank Position Fixing) -- 1 pc. -
Page 4: Aileron Servo
Main Wing Apply instant type CA glue to both sides of each hinge. Pre-glued Aileron Servos Aileron Servo PB2x22mm TWM PL8210010 PB2x22mm CLEVIS WRENCH Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. A109PO23361005... -
Page 5: Stabilizer & Elevator
Temporary install the main wing, adjust Stabilizer & Elevator leveling of the stabilizer to make it as parallel to the main wing as possible. Apply instant type CA glue to both sides of each hinge. Vertical Fin & Rudder Apply instant type CA glue to both sides of each hinge. -
Page 6: Elevator Pushrod
Ø1mm pilot holes for The World Models tri-horn are pre-drilled. Elevator Pushrod Please look for pin-hole marks at under side of control surfaces. PB2x14mm PB2x14mm TWM PL8210010 CLEVIS WRENCH Rudder Pushrod PB2x20mm PB2x20mm TWM PL8210010 CLEVIS WRENCH Ø1mm pilot holes for The World Models tri-horn are pre-drilled. -
Page 7: Engine Mount
Wheel Pant Main Landing Gear KA2.3x8mm d2xD8mm Quick Release Nylon Rivet KA2.3x8mm d2xD8mm Quick Release Nylon Rivet Engine Mount Blind nuts are off-centered to keep the spinner at the fuselage axis. Fuel Tank Install Balsa 8x8x76mm (For Fuel Tank Position Fixing) A109PO23361005... - Page 8 Engine M3 x 25mm Socket Head Screw Plastic Tube Washer d3 x D7mm d2xD3x240mm Installed Engine Position 110 mm 4.3 in. Cowling Please refer to attached sheet for usage of the transparent 3D template. First insert the grommet to the cowling then apply screw. Screw PWA2.6 X 12mm Fuel Filler...
-
Page 9: Radio Equipment
Install and arrange the servos as shown in the diagram. Radio Equipment J1(Pushrod Ø1.8x110mm) Elevator Pushrod 1.8x110mm M2 Nut Charge Receptacles J2(Pushrod Ø1.8x545mm) KP0041300 KM2x8mm Main Wing M3 x 30mm Socket Head Screw d3xD12 Washer dx1.5xD6.5mm Canopy Screw PWA2.3 X 8mm PW2.3x8mm Silicon Grommet d1.5xD6.5mm... -
Page 10: Control Throws
Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. Adjust the control throws as shown in the diagram. Control Throws These throws are good for general flying. Yon can adjust according to your personal preference. C.G. The ideal C.G. - Page 11 Warning! First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. Pre - flight adjustment must be done before flying, it is very dangerous to fly a badly pre - adjusted aircraft. 2C 0.25-0.35 or 4C 0.40-0.56 is specially designed to be powered by engine, using a more powerful engine does not mean better performance.
- Page 12 A109PO23361005...
- Page 13 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 14 4749-K, Bennett Drive, Livermore, CA 94551 USA. A109PO23361005...
-
Page 15: Optional Parts ( Accessories)
Optional Parts ACCESSORIES) 180mm Extension For Park Flyer Fuel Filler Code No. Size Package Code No. Size Package KW0011800 PL8110030 180mm 1 set 15 x 22 x 49mm 1 x 1 pc 180mm Y-Cord For Park Flyer Code No. Size Package KW0021800 180mm... - Page 16 Ｐａｔｔｅｒｎ Ｄｕｃｔｅｄ Ｆａｎ Ｆｕｎｆｌｙ Ｗａｒｂｉｒｄｓ Ｓｃａｌｅ Ｅｌｅｃｔｒｉｃ Ｓｐｏｒｔｓ Ｇｌｉｄｅｒ Ｂｏａｔ Ｔｒａｉｎｅｒ Ａｃｃｅｓｓｏｒｉｅｓ Ｃｏｖｅｒｉｎｇ （Ｌｉｇｈｔｅｘ ／ Ｔｏｕｇｈｌｏｎ） The World Models Manufacturing Co., LTD. www.theworldmodels.com A109PO23361005...
