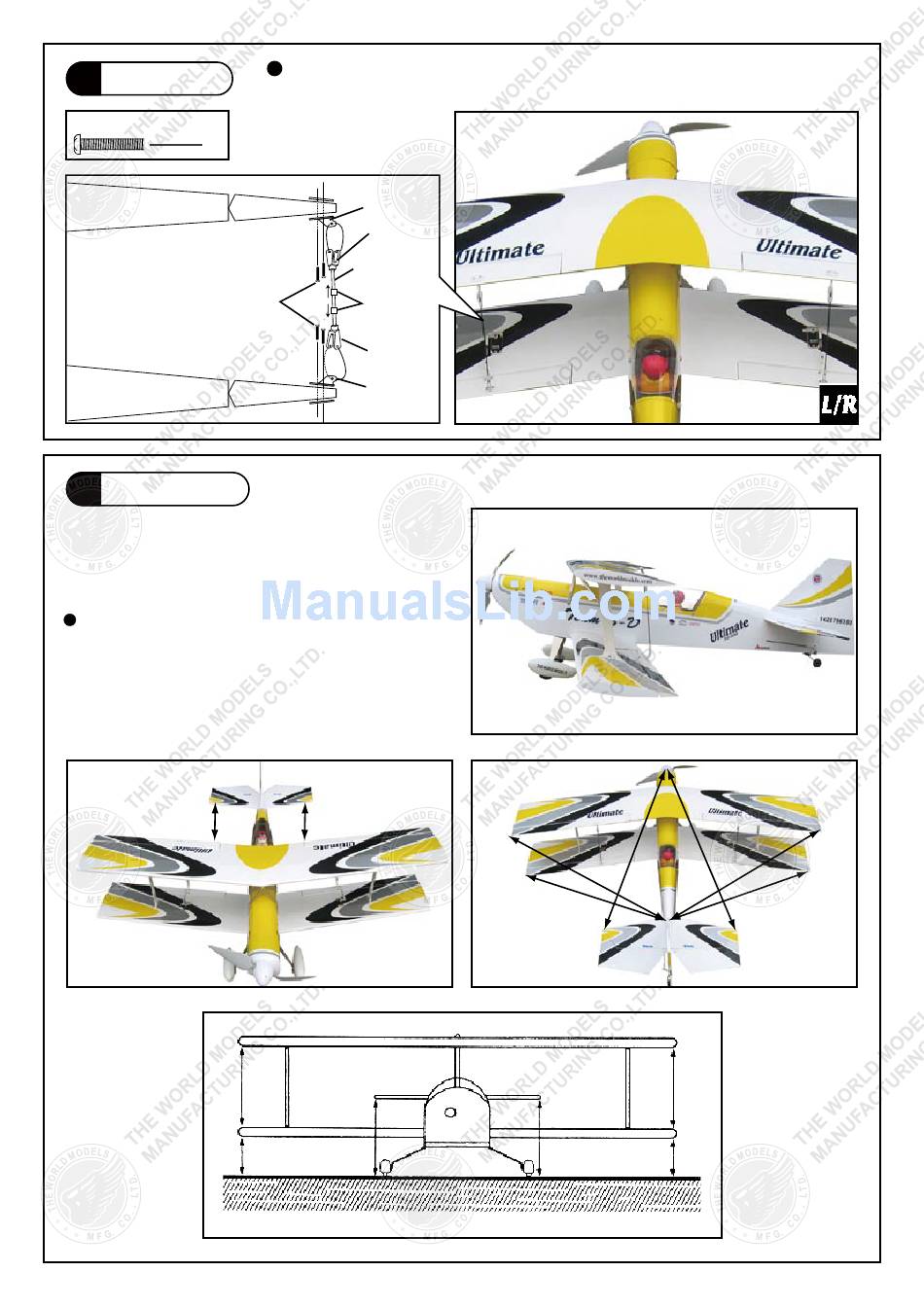

THE WORLD MODELS Ultimate EP Instruction Manual page 10

15
Main Wing
PM2x8mm Screw
8
Main Wing (Upper)
PM2x8mm
Main Wing (Lower)
16
Wing Setting
Adjust the wing and fuselage configuration
as shown in the diagrams.
A
E
F
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
Horn
Clevis
Pushrod
Ø 1.4x138mm
Fuel Tube
d2xD2x4mm
Clevis
Horn
A'
G
A=A' B=B' C=C' D=D' E=E' F=F' G=G'
P.9
C
B B'
D
E'
G' F'
C'
D'
