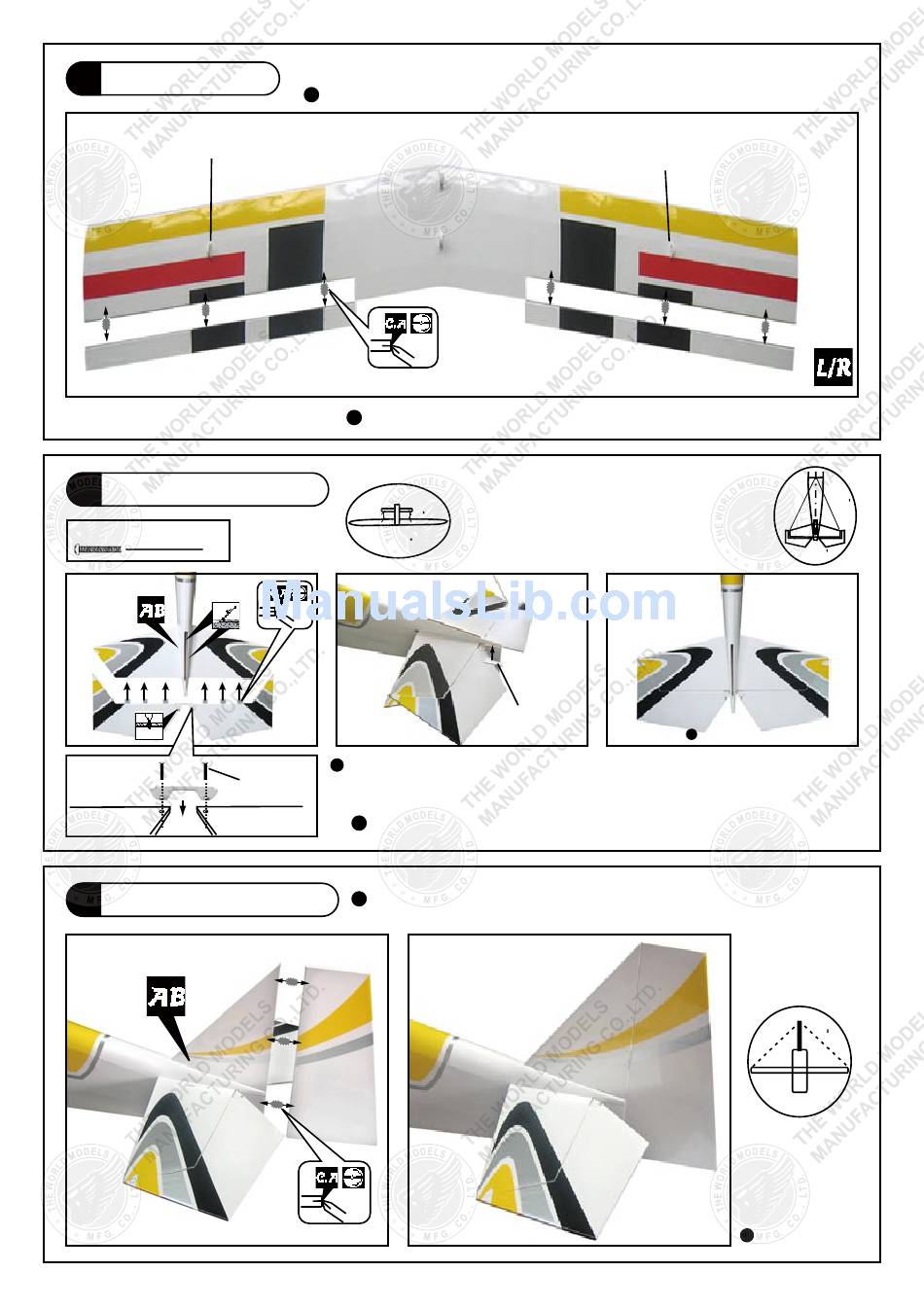

3
Main Wing
(Upper)
Cabane Mount
4
Stabilizer & Elevator
PM2x8mm Screw
2
2mm
PM2x8mm
5
Vertical Fin & Rudder
Apply instant type CA glue to both sides of each hinge.
Bottom View
Temporary install the main wing, adjust
(Stabilizer)
leveling of the stabilizer to make is as
B B
parallel to the main wing as possible.
(Main Wing)
B=B
*Also refer to step 13 Wing Setting
4x12x34.7mm
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at side of control surfaces.
Apply instant type CA glue to both sides of each hinge.
Apply instant type CA glue to both sides of each hinge.
P.4
Cabane Mount
Balsa
A A
A=A
Completed
c
c
c = c'
Completed
