4. ELECTRICAL
Control Box Installation
Electricity Supply 230V, Single Phase 50Hz
All wiring to supply and all system components external to
the boiler must comply with the latest edition BS 7671 IEE
Wiring Regulations.
Insert thermostat phial into the top phial pocket on the
L/H side of the boiler making sure not to trap the ther-
mostat capillary. Secure control box to top L/H side of
boiler fixing with one screw.
Fig. 11

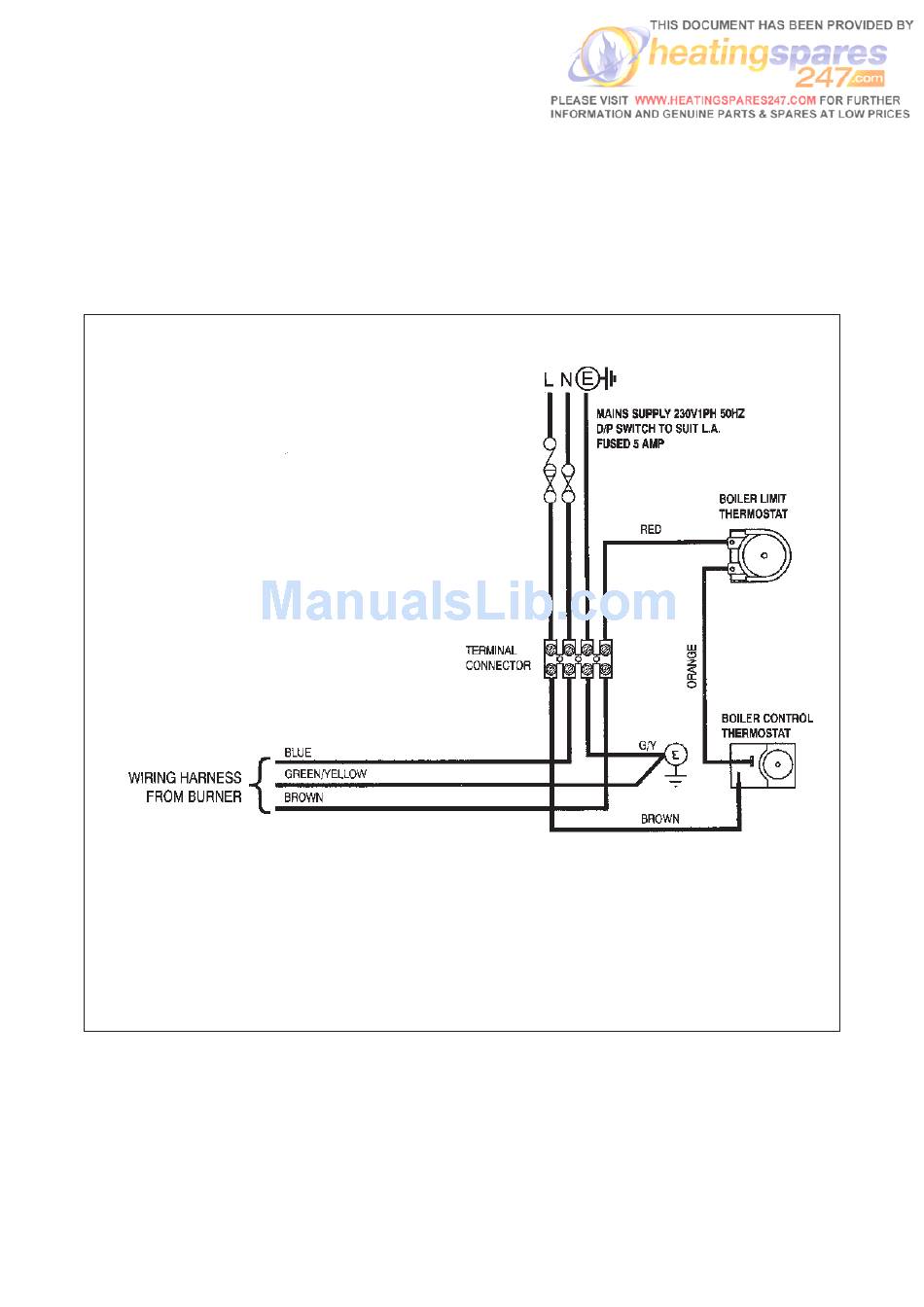

WIRING DIAGRAM
