Universal High Level Bf Adaptor Kit - Trianco EuroTrader 50/90 User, Installation, Commissioning & Servicing Instructions

1
13
2
3
10
4
5
6
7
8
9
Fig. 7

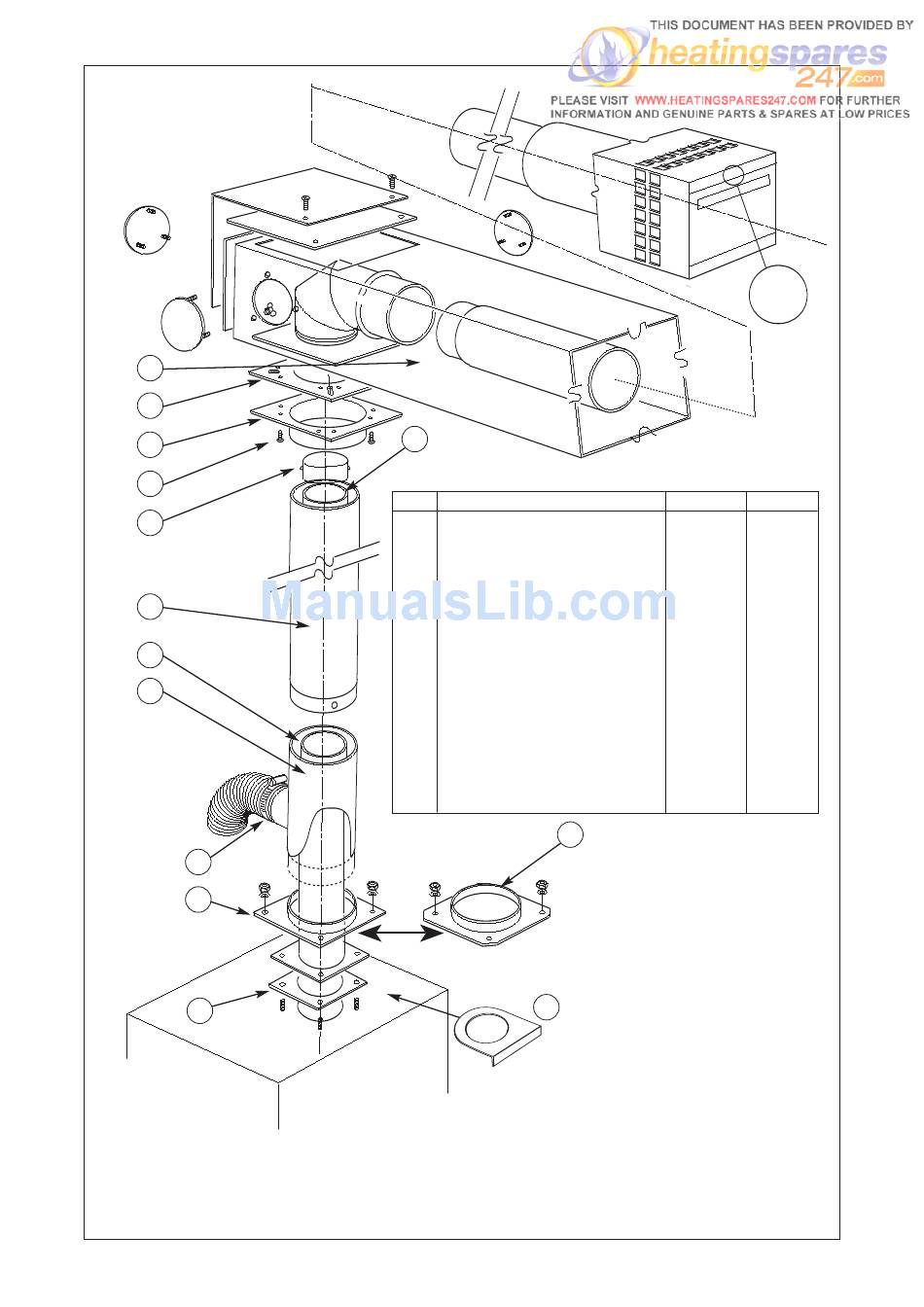

2272 UNIVERSAL HIGH LEVEL BF ADAPTOR KIT

12
Item Description
1 600mm or 1000mm Horizontal Kit
2 Flue spigot terminal to outer
3 No 6 Self tapping screws
4 Outer flue pipe - Long
5 Inner flue pipe - Short
6 Outer pipe with hose connection
7 Jubilee clip
(supplied with either 2270 or 71)
8 Flue socket plate
(supplied with boiler)
9 Gasket (supplied with boiler)
10 Collar piece
11 Flue spigot boiler to outer
12 Inner flue pipe - Long
13 Gasket
(supplied with kit)
14 Flue infill plate
- Inner 'O' ring
- Outer 'O' ring
11
14
14
TOP
Part no. No. Off
2270 or 2271
221716
91523
221725
221668
221662
95256
207772
204072
211707
221648
(WM70 ONLY)
221726
208559
209597
221647
221666
1
1
17
1
1
1
2
1
1
1
1
1
3
1
3
3
