Horizontal Telescopic Bf Kit - Trianco EuroTrader 50/90 User, Installation, Commissioning & Servicing Instructions

Trianco flue kits are designed to incorporate the latest 'O'-ring seals.
Before commencing assembly, please make sure that all 'O'-rings seals are in position.
600mm HORIZONTAL TELESCOPIC BF KIT
ASSEMBLY METHOD (Fig 4/5)
1. Having decided the position of the boiler cut a
hole 170mm square in the wall.
2. Remove the top casing and the flue socket from the
top of the boiler. Ensure that the gasket is on top of
the boiler and then place the white flue box on top of
the gasket. Fit the stainless steel flue spigot plate into
flue box and screw to the top of the boiler, trapping
the gasket and box in position.
3. Fit the flue elbow to the stainless steel pipe on the
terminal. Slide the terminal into the flue box from the
outside and locate the elbow over the spigot plate.
4. Measure from the face of the outside wall to the end
of the terminal. Subtract 140mm. This will give the
length that requires cutting from the terminal inner
pipe.
5. Remove the terminal form the flue box, remove the
elbow from the pipe and then cut the terminal pipe to
the required length. Replace the elbow in the end of
the pipe and slide the terminal into the flue box,
locating the elbow securely onto the spigot.
6. When terminating from the rear of the boiler, fit the air
hose spigot over the hole in the L-shaped blanking
plate, securing it with the M4 wing nuts provided.
When terminating from the side of the boiler, fit the air
hose spigot to the side of the flue box.
7. Fit the L-shaped blanking plate to the flue box. Blank
off the remaining holes with the round sealing plates,
using silicone sealant and the M4 wing nuts.
8. Fit the air hose between the burner and the spigot on
the flue box, securing it using the clips provided.
9. Close any gaps around the terminal on both sides of
the wall and replace the top casing.
TERMINAL GUARDS
When the terminal is positioned where there is the
possibility of accidental contact by persons, or of damage
to the terminal, an approved guard is necessary.
Generally, exhaust 2 metres above ground level
alleviates the necessity for a guard.
A suitable guard is available from Trianco,
part NO. 204123
1000mm HORIZONTAL TELESCOPIC BF KIT
ASSEMBLY METHOD (Fig 4/5)
1. Having decided the position of the boiler, cut a hole
170mm square in the wall.
2. Remove the top casing and the flue socket from the
top of the boiler. Ensure that the gasket is on top of
the boiler and then place the white flue box on top of
the gasket. Fit the stainless steel flue spigot plate into
the flue box and screw to the top of the boiler,
trapping the gasket and box in position.
3. Fix the flue elbow to the stainless steel pipe of the
terminal. Slide the terminal into the flue box from the
outside and locate the elbow over the spigot plate.
4. Slide the terminal inwards over the elbow pipe until it
is in the position required, making sure that there is a
minimum distance of 140mm from the outside wall to
the end of the terminal.
5. When terminating from the rear of the boiler, fit the air
hose spigot over the hole in the L-shaped blanking
plate, securing it with the M4 wing nuts provided.
When terminating from the side of the boiler, fit the air
hose spigot to the side of the flue box.
6. Fit the L-shaped blanking plate to the flue box. Blank
off the remaining holes with round sealing plates,
using silicone sealant and the M4 wing nuts.
7. Fit the air hose between the burner and the spigot on
the flue box, securing it using the clips provided.
8. Close any gaps around the terminal on both sides of
the wall and replace the top casing.
IMPORTANT: TO AID ASSEMBLY, IT IS NECESSARY
TO APPLY A THIN BEAD OF LUBRICANT (E.G.
WASHING - UP LIQUID OR VASELINE) TO ALL FLUE
JOINTS THAT INCORPORATE 'O'- RING SEALS.
AS THE FLUE SYSTEM
POSITIVE PRESSURE, ALL FLUE JOINTS THAT DO
NOT INCORPORATE 'O'- RING SEALS SHOULD BE
SEALED WITH SILICONE SEALANT.

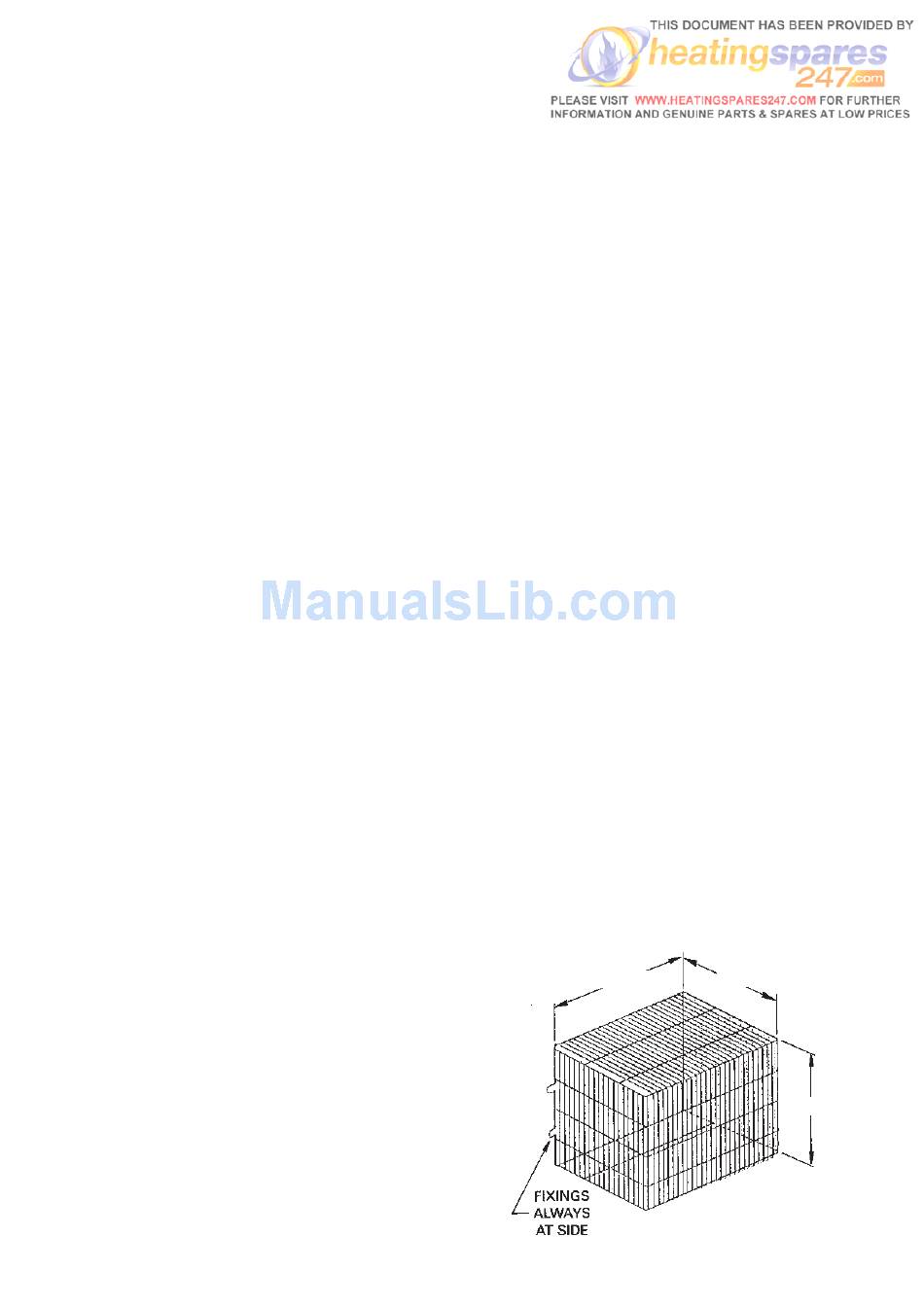

343mm
11
OPERATES UNDER
267mm
300mm
All sizes in mm approximate.
