11-1.3 DHCP Server

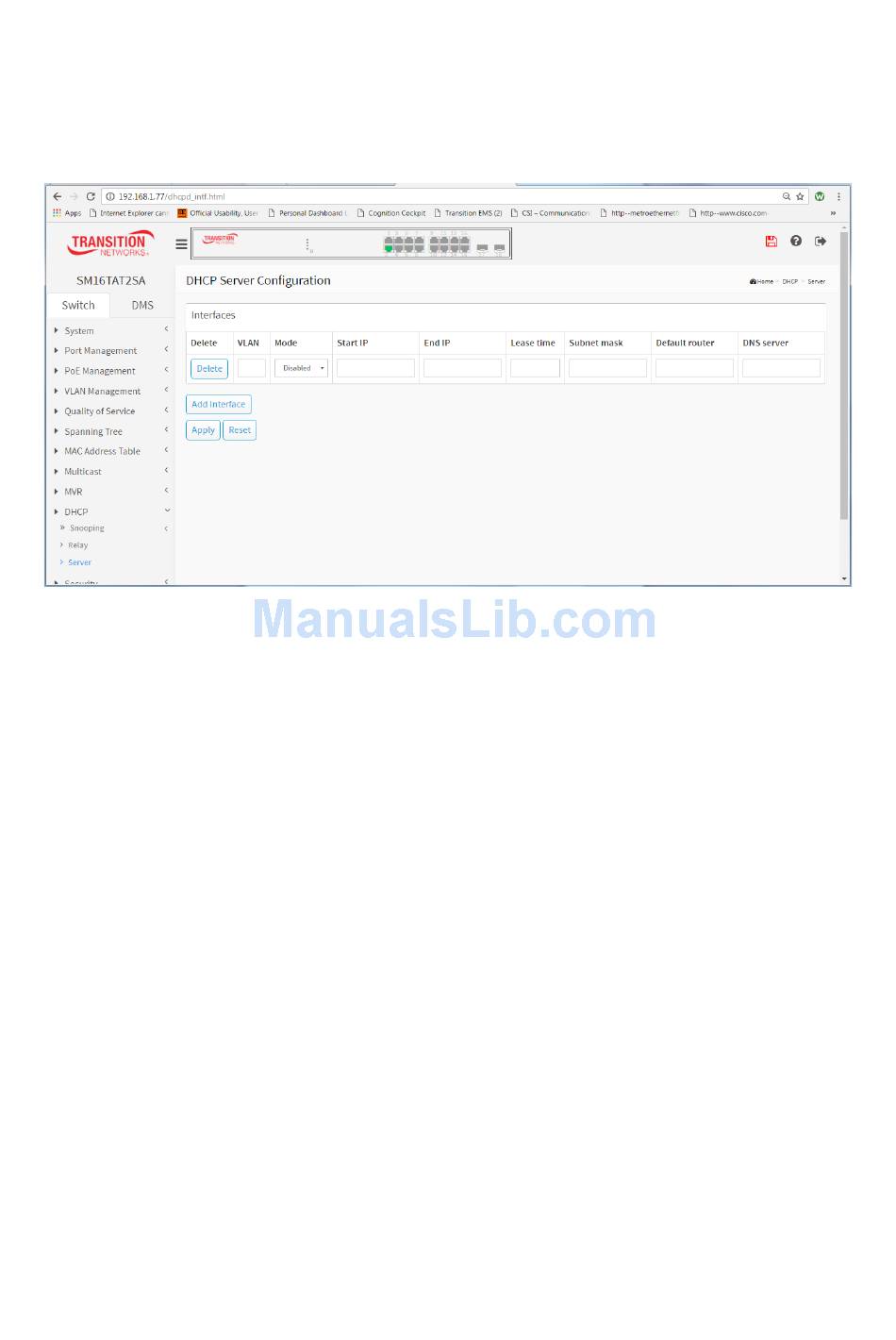

Navigate to the Switch > DHCP > Server menu path to display the DHCP Server Configuration table.
Here you can add and configure new DHCP servers. Click the Add Interface button to start.
This page configures the mode (enable/disable) DHCP server per system and per VLAN, and configures
Start IP and End IP addresses. A DHCP server will allocate these IP addresses to the DHCP client, and
deliver configuration parameters to the DHCP client.
Parameters:
Delete: Check to delete the entry. It will be deleted during the next save.
VLAN: Enter the VLAN ID (VID) for this instance. Configure the VLAN in which DHCP server is enabled
or disabled. Allowed VLAN are in the range 1 – 4095.
Mode: Indicates the operation mode per VLAN. Possible modes are: Enable: Enable DHCP server per
VLAN. Disable: Disable DHCP server per VLAN. The default is Disabled.
Start IP: Enter the starting IP address for the range. The Start IP must be smaller than or equal to the
End IP.
End IP: Enter the ending IP address for the range.
Lease time: Enter a valid DHCP lease time of the pool.
Subnet mask: Enter the Subnet mask.
Default router: Enter the default router IP address.
DNS server: Enter the destination IP network or host address of this route.
Subnet Mask: Configure subnet mask of the DHCP address.
Buttons
Add Interface: Click the button to create and configure an instance.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
