11-1.3 DHCP Relay Configuration

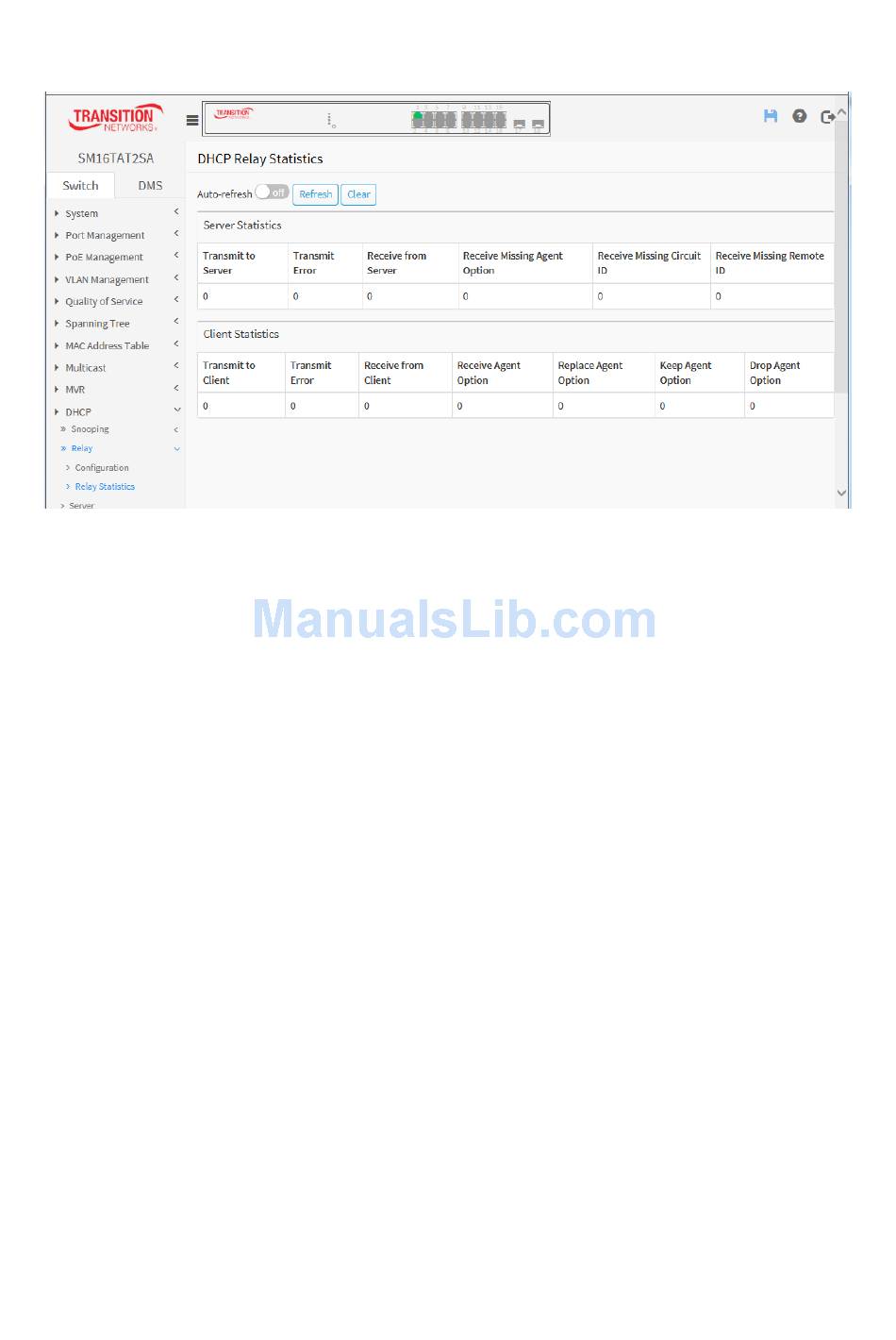

Navigate to the Switch > DHCP > Relay menu path to display the DHCP Relay Statistics table. This page
provides statistics for DHCP relay.
Server Statistics Parameters:
Transmit to Server: The number of packets that are relayed from client to server.
Transmit Error: The number of packets that resulted in error while being relayed from client to server.
Receive from Server: The number of packets received from server.
Receive Missing Agent Option: The number of packets received without agent information options.
Receive Missing Circuit ID: The number of packets received with the Circuit ID option missing.
Receive Missing Remote ID: The number of packets received with the Remote ID option missing.
Client Statistics Parameters:
Transmit to Client: The number of relayed packets from server to client.
Transmit Error: The number of packets that resulted in error while being sent to servers.
Receive from Client: The number of received packets from server.
Receive Agent Option: The number of received packets with relay agent information option.
Replace Agent Option: The number of packets which were replaced with relay agent information
option.
Keep Agent Option: The number of packets whose relay agent information was retained.
Drop Agent Option: The number of packets that were dropped which were received with relay agent
information.
Buttons
Auto-refresh: Check to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
