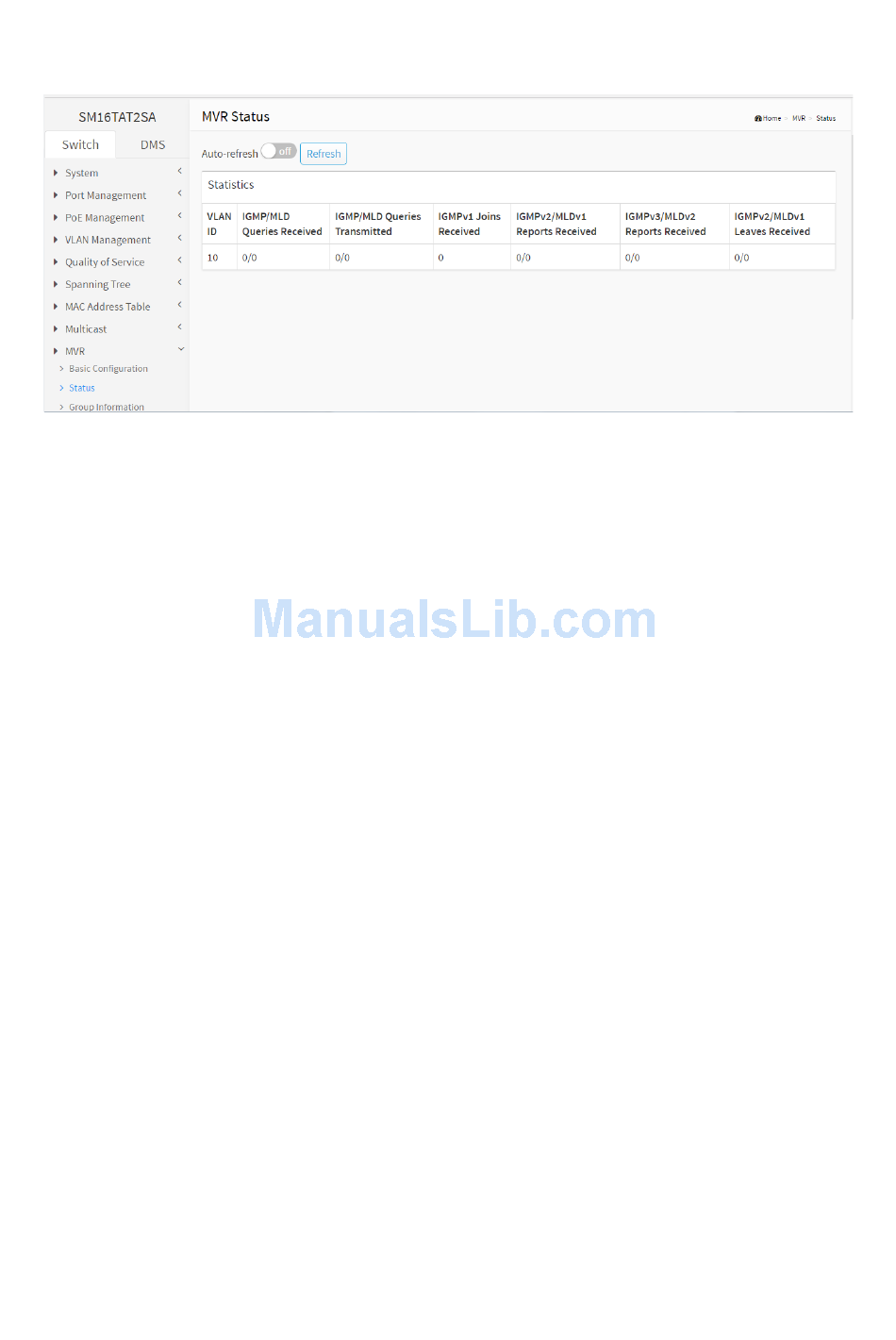

10.4-2 Switch > MVR > Status
The section describes the switch will display the MVR detail Statistics after you had configured MVR on
the switch. It provides the detail MVR Statistics Information.
MVR Statistics parameters:
VLAN ID: Displays the Multicast VID (VLAN ID).
IGMP/MLD Queries Received: The number of Received Queries for IGMP and MLD, respectively
(e.g., x/y).
IGMP/MLD Queries Transmitted: The number of Transmitted Queries for IGMP and MLD,
respectively (e.g., x/y).
IGMPv1 Joins Received: The number of Received IGMPv1 Joins (e.g., 1 Join received).
IGMPv2/MLDv1 Reports Received: The number of Received IGMPv2 Join's and MLDv1 Reports,
respectively (e.g., x/y).
IGMPv3/MLDv2 Reports Received: The number of Received IGMPv3 Join's and MLDv2 Report's,
respectively.(e.g., x/y).
IGMPv2/MLDv1 Leaves Received: The number of Received IGMPv2 Leave's and MLDv1 Dones,
respectively (e.g., x/y).
Buttons
Auto-Refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3
seconds.
Refresh: Click to refresh the page immediately.
