Parking light error codes

The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown. Each
flashing pattern is described below.
Flashes Diagnostic
1 Runtime expired.
2 Over-rev shutdown.
3 Low or no RPM.
4 Shutdown without remote.
5 Brake shutdown.
6 Hood shutdown/Remote start safety override switch is ON.*
7 Remote start safety override switch is ON.*
* If the vehicle hood status is supported through data, the safety override switch input will report 7 flashes.

Soft reset

A module reset will only erase the steps perfomed in "Module programming". The firmware and settings flashed to the module
will not be affected.

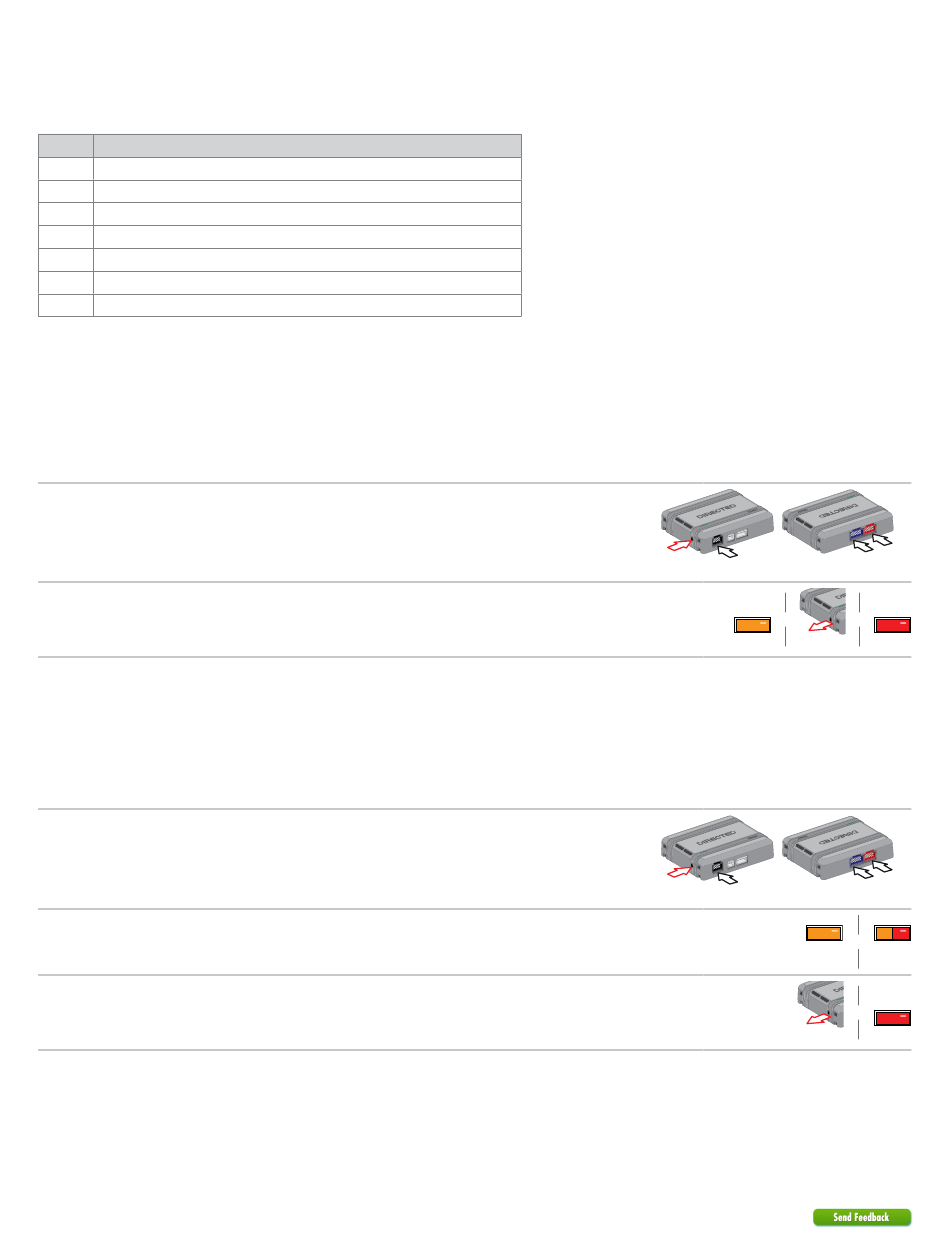

Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
1
programming button, then connect the 14-pin harness to the module.
Wait 3 seconds until the LED turns ON solid orange then release the programming button.
2
The LED turns ON solid red.

Hard reset

Warning Against Executing a Hard Reset!
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. Refer to <FeatureOptionList>.
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
1
programming button, then connect the 14-pin harness to the module.
Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the
2
LED starts to flash orange and red.
3
Release the programming button. The LED turns ON solid red.
