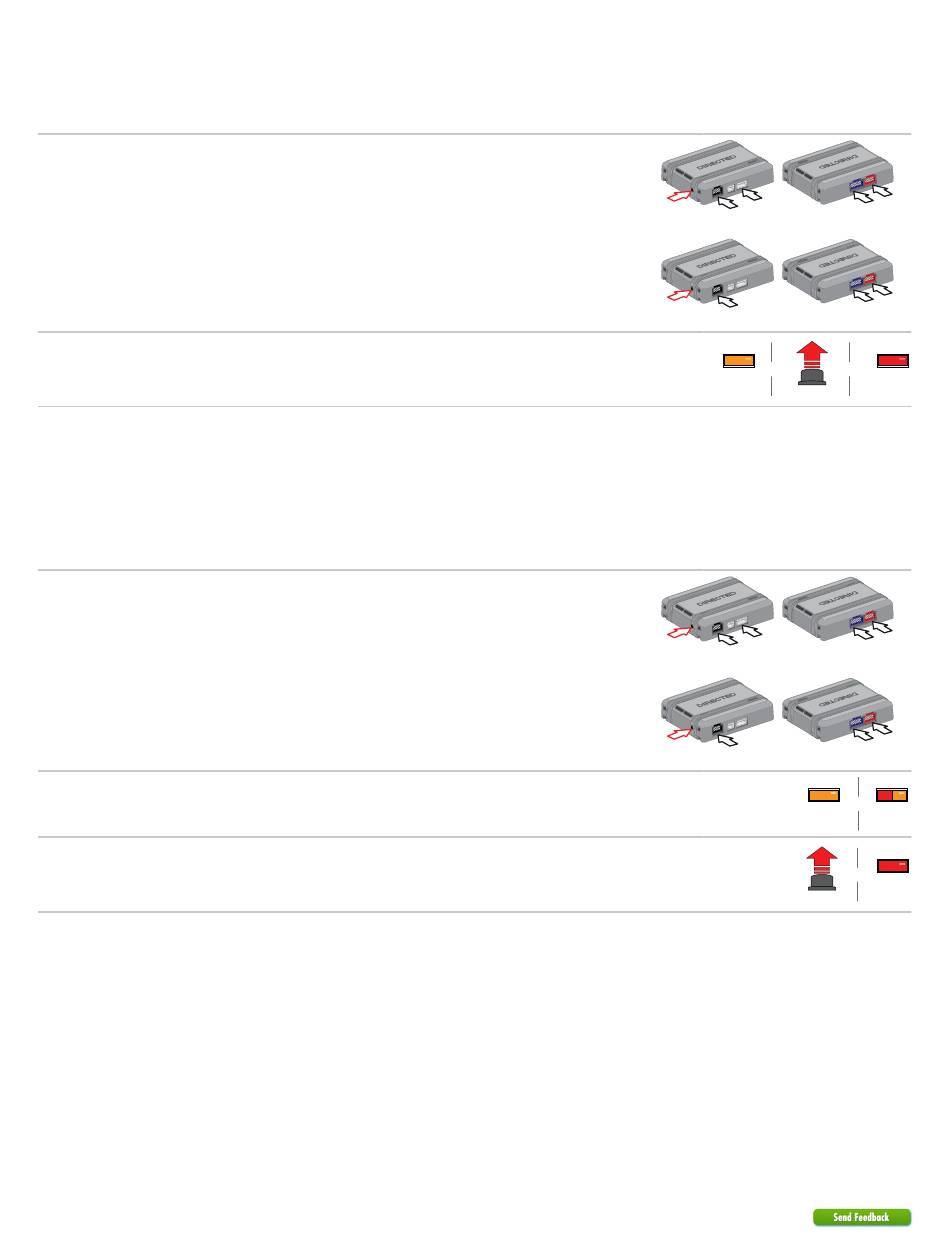

Soft Reset; Hard Reset - Directed DIRECTECHS DB3 Installation Manual

Soft reset

A module reset will only erase the steps perfomed in "Module Programming". The firmware and settings flashed to the module will not be
affected.
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module.
Press and hold the programming button, then connect the 4-pin D2D harness.
1
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module.
Press and hold the programming button, then connect the 14-pin harness to the module.
Wait 3 seconds until the LED turns ON solid orange then release the programming button.
2
The LED turns ON solid red.

Hard reset

Warning Against Executing a Hard Reset!
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings may need to be
reconfigured. Connect your module to a computer and use the web configuration tool to edit its programmable features.
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness.
1
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the LED starts
2
to flash orange and red.
3
Release the programming button. The LED turns ON solid red.
14
403.TL1 5.07.106 2013 Toyota Highlander (Smart Key)
©2024 Directed. All rights reserved.
5 th
4 th
1 st
(D2D)
(Button)
(10-pin)
3 rd
1 st
(Button)
(10-pin)
&
Solid
Release
5
th
4
th
1
st
(D2D)
(Button)
(10-pin)
3 rd
1 st
(Button)
(10-pin)
Solid
Release
2 nd
3 rd
(12-pin)
(14-pin)
2 nd
4 th
(12-pin)
(14-pin)
&
Solid
2
nd
3
rd
(12-pin)
(14-pin)
2
nd
4 th
(12-pin)
(14-pin)
&
Flashes
&
Solid
