Redline RDL-3000 User Manual

Advanced broadband wireless infrastructure solutions
Hide thumbs Also See for RDL-3000:
Table of Contents

Advertisement

Quick Links

See also: User Manual

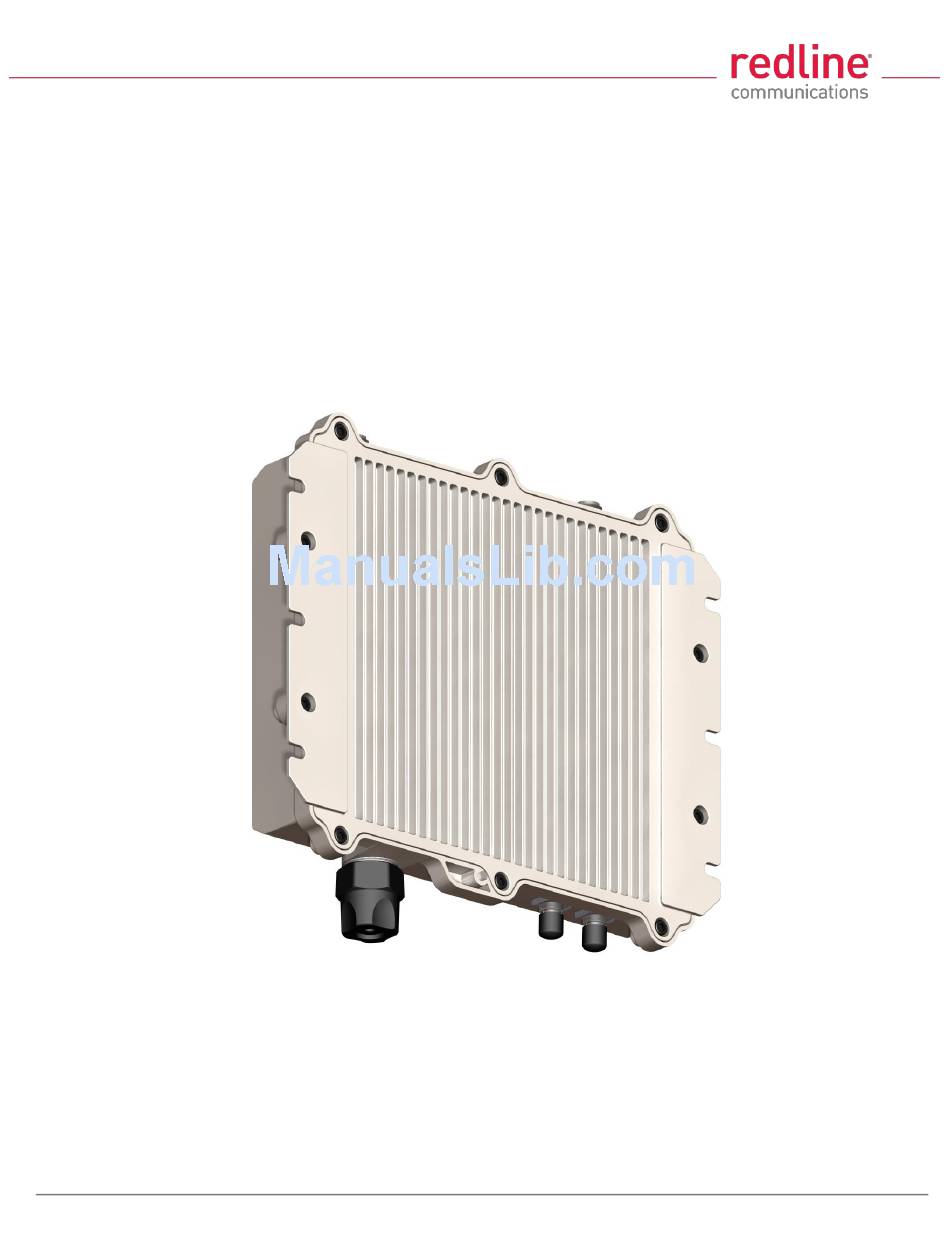

RDL-3000
Advanced Broadband Wireless
Infrastructure Solutions
User Manual
70-00158-01-DRAFT
Proprietary Redline Communications © 2010
Page 1 of 142
November 25, 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RDL-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Redline RDL-3000

Summary of Contents for Redline RDL-3000

  • Page 1 RDL-3000 Advanced Broadband Wireless Infrastructure Solutions User Manual 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page 1 of 142 November 25, 2010...

  • Page 2: Copyright Information

    All rights reserved November 25, 2010. The information in this document is proprietary to Redline Communications Inc. This document may not in whole or in part be copied, reproduced, or reduced to any medium without prior consent, in writing, from Redline Communications Incorporated.
  • Page 3 Utilities Screens ....................86 CLI Interface ................95 Telnet Access ....................95 Command Summary ..................95 Command Set ....................97 Diagnostics & Troubleshooting ......... 118 Interface Connection Issues ................. 118 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 4 HTTPS/SSL for Secure Web ................130 Appendices ................. 132 Technical Specifications ................132 Classification: Services and Service Groups ..........134 Regional Codes ....................138 FCC & IC Certified Antennas ................. 140 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 5 VLAN Tagged Management ................30 3.2.7 PMP Configurations ..................31 VLAN Services ..................... 31 TLS (Transparent LAN Services) ..............34 Tagged Traffic ....................35 PTP Mode ......................38 Web Interface ................ 39 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 6 SNMP Trap Settings ..................65 4.5.4 Wireless Configuration ..................66 Basic Wireless Configuration................ 66 Advanced Wireless Configuration ..............68 Frequency Management Screen ..............70 4.5.5 Wireless Security .................... 72 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 7 5.3.2 arp ........................97 5.3.3 chgver ......................98 5.3.4 clear ........................ 98 5.3.5 del ........................98 5.3.6 enable ......................99 5.3.7 freq ......................... 99 5.3.8 generate ......................100 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 8 Load Wireless X.509 Certificate and Key Files ..........127 7.2.4 Enable Authentication ................... 127 AES Encryption ....................128 7.3.1 Out of Box Operation ..................128 7.3.2 Enabling AES ....................128 SSH for Secure CLI ..................129 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 9 FCC & IC Certified Antennas ................. 140 8.4.1 4.94 - 4.99 GHz Radio: FCC & IC Antennas ..........140 8.4.2 5.8 GHz Radio: FCC & IC Antennas ............. 140 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 10 Table 37: Diag. - PMP Status Codes ................119 Table 38: Diag. - Factory Default Settings ..............121 Table 39: Spec. - RDL-3000 Technical Specifications ..........132 Table 40: Spec. - Classification: Packet Received on SC Ethernet Port ...... 134 Table 41: Spec.
  • Page 11 LIST OF FIGURES Fig. 1: Intro - RDL-3000 System Components ............... 17 Fig. 2: Intro - RDL-3000 - Ethernet and Sync Ports (Bottom View of Radio) ....18 Fig. 3: Intro - RDL-3000 RF Ports (Top View of Radio) ..........19 Fig.
  • Page 12 Fig. 59: Web - Antenna Alignment Tool Screen ............. 92 Fig. 60: Web - Firmware Management Screen .............. 93 Fig. 61: Telnet - Connecting a PC to the RDL-3000 ............95 Fig. 62: Diag: - Saving Parameters in Non Volatile RAM ..........120 Fig.

  • Page 13: Important Notices

    Bodily injury may result if you are not aware of the safety hazards involved in working with electrical equipment and radio transmitters. Familiarize yourself with standard safety practices before continuing. Electro-Magnetic Radiation High Voltage 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 14: Lightning Protection

    Also, record the MAC address identified on the unit product label. Redline does not endorse or support the use of outdoor cable assemblies: i) not supplied by Redline, ii) third-party products that do not meet Redline's cable and connector assembly specifications, or iii) cables not installed and weatherproofed as specified in the RDL-3000 Installation Guidelines manual.

  • Page 15: Regulatory Notices

    Deployment in USA and Canada: FCC & IC Notices Read the following notices about deployment in the USA and Canada: The Model RDL-3000 and its antenna must be professionally installed. WARNING -- FCC & IC RF Exposure Warnings To satisfy FCC and IC RF exposure requirements for RF transmitting devices, the...

  • Page 16: Ul Information

    RDL-3000 must be installed in compliance with relevant articles in National Electrical Code-NEC (and equivalent Canadian Code-CEC) including referenced articles 725, 800 and 810 in NEC. RF coaxial cable connecting an antenna to the RDL-3000 must comply with the local electrical code. 70-00158-01-DRAFT Proprietary Redline Communications ©...

  • Page 17: System Features

    Ethernet network. The outdoor unit can be used with a selection of antennas. One RDL-3000 must be configured as a Sector Controller (PMP SC) to control all RF transmissions in a sector that may contain many subscribers. The Sector Controller uses...

  • Page 18: Ethernet Port

    The Ethernet port connects to the PoE Adapter using a weatherproof CAT-5e Ethernet cable. The maximum total length of the Ethernet cable is 100 m (328 ft). For example, 98 m from the RDL-3000 to the PoE and 2 m from the PoE to the local network equipment.

  • Page 19: Ground Lug

    Ground Lug A ground-lug is provided on the RDL-3000 chassis. Use this connection to terminate a grounding wire. All RDL-3000 systems must be properly grounded to protect against power surges and accumulated static electricity. Audible Alignment When enabled, the audible alignment signal chirps slowly when a low signal level is detected, and faster for stronger signals.

  • Page 20: Management Interfaces

    (administrator) and a second concurrent session with read-only access (e.g., monitor or show parameter settings). To connect to the RDL-3000 CLI management, open a Telnet session to the IP address of the RDL-3000. When the command prompt screen appears, login to the RDL-3000.

  • Page 21: Poe Power Adapter

    Customer equipment including personal computers, routers, etc., must be connected only to the INPUT (DATA) port on the PoE unit. Only the outdoors Ethernet interface cable connecting to the RDL-3000 can be safely connected to the OUTPUT (DATA & POWER) connector. Connecting customer premises Ethernet equipment directly to the OUTPUT (DATA &...

  • Page 22: Functional Overview

    Operation in PMP mode is controlled by the options keys. When a PMP-only options key is activated, the RDL-3000 operation is restricted to the number of purchased subscriber connections. This mode is not equivalent to operating the RDL-3000 in PTP mode with multiple remote units. Enter PMP-only options keys before deploying and configuring the RDL-3000 units.

  • Page 23: Pmp Mode

    The RDL-3000 can operate as a VLAN-aware wireless L2 switch, with traffic being classified and processed based on the packet VLAN ID. The RDL-3000 also provides a Pass through mode that can be used to process traffic that is not matched to a known VID, or simply to forward all traffic received on a port.

  • Page 24: Services And Service Groups

    The RDL-3000 can operate as a VLAN-aware wireless L2 switch, with traffic being classified and processed based on the packet VLAN ID. The RDL-3000 also provides a Pass through mode that can be used to process traffic that is not matched to a known VID, or simply to forward all traffic received on a port.

  • Page 25: Fig. 10: Pmp - Services (Subscriber)

    Ethernet port. Note: At least one Service Group (sector controller) and one Service (subscriber) must be defined before Ethernet traffic can be exchanged over the wireless interface. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 26: Fig. 11: Pmp - Service Groups (Sector Controller)

    Service Group VID is added to the packet (Q-in-Q), and the packet is forwarded over the Ethernet port. Note: At least one Service Group (sector controller) and one Service (subscriber) must be defined before Ethernet traffic can be exchanged over the wireless interface. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 27: Setting Wireless Rates

    Group Downlink CIR / PIR Fig. 12: PMP - Wireless Rates *Unicast traffic with an unknown destination (all RDL-3000 units maintain a forwarding table) is transmitted two modulation steps below the lowest rate currently in-use across all active Services. 70-00158-01-DRAFT Proprietary Redline Communications ©...

  • Page 28: Pass Through Mode

    1. Only one Service Group (sector controller) may be set to 'Pass though' mode. 2. Only one Service on a subscriber may be set to 'Pass though' mode. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 29: Subscriber-To-Subscriber Traffic

    Service Group of the originating Service. Fig. 14: PMP - Subscriber-to-Subscriber Unicast Traffic Notes: 1. SS to SS broadcast and multicast traffic may optionally be blocked. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 30: Vlan Tagged Management

    Note: If the Management VLAN Tagging feature is to be used, it is strongly recommended to create and test VLAN connectivity before enabling VLAN Management. If any connectivity issue exists with VLAN services, the RDL-3000 unit management functions will be unreachable and a site visit and/or long reset operation may be required to recover control of the unit.

  • Page 31: Pmp Configurations

    Note: This configuration does not enforce a Service Group to have a Service on every subscriber, or be enabled to the sector controller Ethernet port. Fig. 16: PMP - Operation - VLAN Services - Default Groups and Services 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 32: Fig. 17: Pmp - Operation - Vlan Services - Vlan Mapping

    User Manual VLAN Mapping Fig. 17 displays an example of the RDL-3000 VLAN mapping feature. Similar to Label Switch Router (LSR) in Multi-protocol Label Switching (MPLS), the RDL-3000 PMP system can map (change) the VLAN tag based on the ingress and egress port. The VLAN tagging can be specified separately for each Service Group (sector controller port) and Service (subscriber port).

  • Page 33: Fig. 18: Pmp - Operation - Strict Vlan Tagging

    Controller port has no pass-through group, then that port does not accept untagged traffic or tags that are not explicitly configured. Fig. 18: PMP - Operation - Strict VLAN Tagging 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 34: Tls (Transparent Lan Services)

    TLS Group, the outer tag is removed before the packet is forwarded to Network B or C. Fig. 19: PMP - Operation - TLS - Extended TLS and Double Tagging 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 35: Tagged Traffic

    Sector Controller as well as the Subscribers. The system will map (change) the VLAN tags depending on the ingress and egress ports. Fig. 20: PMP - Operation - Tagged Traffic - Designated Management Group 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 36: Fig. 21: Pmp - Operation - Tagged Traffic - Port-By-Port Tagging

    Subscriber ports. Note also in Fig. 21 that tagged traffic entering one of the Subscribers exits the Sector Controller port double-tagged. Fig. 21: PMP - Operation - Tagged Traffic - Port-by-Port Tagging 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 37: Fig. 22: Pmp - Operation - Tagged Traffic - Tagging Groups Of Ports

    (i.e., the same tag extends over a number of Subscriber ports). Fig. 22: PMP - Operation - Tagged Traffic - Tagging Groups of Ports 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 38: Ptp Mode

    PTP Mode Operation in PTP mode is controlled by the options keys. Enter PTP-only options keys before deploying and configuring the RDL-3000 units. When a PTP-only options key is activated, the RDL-3000 operation is restricted to a single point-to-point connection. A separate range of RF power settings are provided for PTP operation.

  • Page 39: Web Interface

    Web Interface Connecting With a Web Browser The RDL-3000 can be configured and monitored using a PC equipped with a standard Web browser (Internet Explorer 6.0 or higher). The following diagram illustrates the required standard Ethernet Cat-5e cable connection from the RDL-3000 Ethernet port to the PoE, and the Ethernet Cat-5e crossover cable from the PoE to the PC.

  • Page 40: Fig. 25: Web - Login Screen

    Net Mask = 255.255.255.0 2. On the PC, open a browser and enter the unit RDL-3000 IP address. The factory default IP address is 192.168.25.2. 3. Enter the username and password to login. The factory default username is 'admin', and the default password is 'admin'.

  • Page 41: System Menu

    RDL-3000 User Manual System Menu 4.2.1 Sector Controller and Subscriber Menus The following functions are available for configuring and monitoring the RDL-3000. Sector Controller Menu Subscriber Menu Fig. 26: Web - Main Menus for Sector Controller and Subscriber 70-00158-01-DRAFT Proprietary Redline Communications © 2010...

  • Page 42: Command And Screen Account Permissions

    Display all Service Groups. √ Group Status Service Group Status √ Group Service Group Configuration Configuration √ √ Services Services Display all Service Groups. √ Service Service Status Status 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 43 Misc. √ √ Save All Save all configuration changes. Notes: The following settings are not affected: system name, location, details and contact, frequency list, SNMP configuration, Idtable. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 44: Dashboard Display

    UBR setting. Adaptive Modulation Disabled: LED lights solid green when the wireless link is established. 4.3.3 Ethernet LEDs These LED indicators provide a summary of the Ethernet port status. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 45: Link Led

    FD LED The FD LED lights solid green when the Ethernet connection is operating in full duplex mode and blinks when collisions are detected on the Ethernet port. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 46: Status Screens

    Start Up Time: Time and date of the last system reboot/powered-cycle. Current Time: Current time on the RDL-3000 internal clock. The time may be unavailable if the SNTP (time server) feature is disabled. The screen will display 'N/A (GMT +0:00'.

  • Page 47: Ethernet

    Ethernet MAC Address: MAC address of the network interface on this unit. IP Address: Network IP address for this unit. IP Subnet Mask: Network IP subnet mask. Default Gateway Address: Network IP address of the default router or gateway. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 48: System Status

    Tx Off: Radio transmitter is disabled for 30 minutes. Chg Freq: Radio transmitter is changed to a different RF frequency. Status Code: Code indicating the status of the RDL-3000 system. Code '0000 0000' indicates normal operation. Refer to section 6.2: Status Codes on page 119.

  • Page 49: Wireless Summary

    Tx: Number or egress packets transmitted on the Ethernet port. Discarded Packets: Total number of packets discarded due to buffer overflow. Rx: Received packets discarded due to errors (e.g., CRC or buffer overflow). 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 50: Subscriber Links Summary Screen (Sc Only)

    Retransmitted Wireless Packets: Total number of wireless packets that have been retransmitted over the wireless interface. DL: Total packets retransmitted over the wireless interface. UL: Total packets retransmitted by the remote end. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 51: Subscriber Link Status

    Link Up Time: Total time the wireless link has been operational. Link lost Count: Number of times link has been out of service. Status Code: Code indicating the condition of the RDL-3000 system. Configured Subscriber Services: The number of Services provisioned on this link.

  • Page 52: Wireless

    DL: Operator-assigned maximum downlink burst rate setting. UL: Operator-assigned maximum uplink burst rate setting. Controls Refresh: Click to update displayed statistics counters. Reset: Click to reset displayed statistics counters. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 53: Subscriber Services Summary Screen (Ss Only)

    Rx Packets: Total packets successfully received over the wireless interface. Total does not include discarded or errored packets. DL: Total packets subscriber has received from sector controller. UL: Total packets sector controller has reported receiving from subscriber. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 54: System Messages (Log)

    System Messages (Log) Click System Log in the main menu to view the system activity and error messages recorded by the RDL-3000. This screen is identical for the sector controller and subscriber units. Fig. 34: Web - System Log Messages Clear Log: Click to erase all messages from the system log file.
  • Page 55 Factory Data Corrupted (use fallback values) 2028 TFTP: Error 2029 Firmware configuration: Error 2031 Factory Data Save: Error 2034 HTTP(User Mgm): Invalid password 2035 HTTP(User Mgm): Invalid User 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 56 The options key expires in less than 6 days 2092 SSL Certificate missing, HTTPS disabled 2093 Wireless Security Certificates missing 2094 Firmware validation: ERROR (%s) 2095 Image validation: ERROR 2099 Unknown Message 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 57: Configuration Screens

    Ethernet settings. This screen is identical for the sector controller and subscriber units. Click to expand or to hide fields. Fig. 35: Web - Config - PMP SC System Configuration Screen 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 58: System Identification

    User Manual System Identification System Name: Enter the name for this RDL-3000. The system name may be up to thirty alpha-numeric characters including a-z, A-Z, 0-9, dash (-), and underscore (_). System Details: Enter additional descriptive details about this RDL-3000. The system details may be up to thirty alpha-numeric characters including a-z, A-Z, 0-9, dash (-), and underscore (_).
  • Page 59 3000. This method is supported by all versions of RDL-3000 firmware. RADIUS Only: Use only RADIUS for user authentication. An access request to the RDL-3000 is forwarded to the RADIUS server. At least one RADIUS server must be enabled in this mode. The configuration can be done through the CLI or HTTP.

  • Page 60: Fig. 36: Web - Vlan Tagged Management

    Ethernet packet has this VLAN ID. Important: If the Management VLAN Tagging feature is required, it is recommended to test the VLAN connectivity before activating this function. Otherwise, the RDL-3000 unit may become unmanageable require a long reset operation to recover control.

  • Page 61: Radius Setup

    Add user account usrjoe: Auth-Type := Local, User-Password == "pass" Service-Type = NAS-Prompt-User Reject an account. users.conf lameuser: Auth-Type := Reject Reply-Message = "Account has been disabled." 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 62: Snmp Configuration

    Fig. 39: Web - SNMP Configuration Screen SNMP Community Settings Use this section of the screen to manage the SNMP community settings. The RDL-3000 supports up to eight separate community strings. Each community name is assigned specific access rights (read/write). The 'public' and 'private' community strings are default access values and should be changed to secure system access.

  • Page 63: Snmp V3 Security Settings

    SNMP v3 Security Settings SNMP v3 supports authentication and privacy settings to provide secure management access. Security methods are associated with RDL-3000 user accounts. Fig. 41: Web - SNMP V3 Configuration Security Name: User name of the SNMP v3 account.

  • Page 64: Snmp Trap Destination Settings

    Edit SNMP Trap Destinations Click Change in the SNMP Trap Destinations section of the screen to modify the list of trap listeners. The following popup dialog is displayed: 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 65: Snmp Trap Settings

    Enabled ( ): The RDL-3000 sends SNMP trap messages. Link Up/Down Trap Enabled: Control SNMP trap messages for the link status. Disabled ( ): The RDL-3000 does not send SNMP trap messages based on changes to the wireless link status.

  • Page 66: Wireless Configuration

    Basic Wireless Configuration System Mode: The system designated as sector controller establishes and manages the bi-directional data link with a remote end RDL-3000. Only one system in a wireless link must be set for Sector Controller mode (PMP SC). PMP SC: RDL-3000 automatically sends poll messages to locate and register remote RDL-3000 subscribers, and negotiates operating settings for the link.

  • Page 67: Table 7: Web - Maximum Tx Power Settings (Dbm) For All Modes

    Auto scan: (Subscriber Only) Check this box to enable the subscriber to automatically scan available channels to locate and register with an RDL-3000 PMP Master. When Auto scan is not enabled, the wireless link can be established only at the frequency specified in the RF Freq.

  • Page 68: Advanced Wireless Configuration

    It is important to enter the correct value. If this value is set higher than the true gain, the sensitivity is too low and the RDL-3000 will not be operating in compliance with the UK/ETSI standard. If this value is set lower than the true gain, the RDL-3000 is more sensitive to interference and may experience false triggers.
  • Page 69 (packet rate, packet size, etc). Fixed Frame: Select the wireless frame mode. Disabled ( ): RDL-3000 adjusts the wireless frame size dynamically based on uplink and downlink traffic patterns. Enabled ( ): Wireless frame size is fixed at the value specified in the Frame Size field.

  • Page 70: Frequency Management Screen

    Frequency ranges downloaded from the sector controller, or programmed manually, are scanned as the first priority. Downloaded ranges are deleted when the subscriber is rebooted. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 71 Apply: Check the validity of the current range settings in the Local Frequency Range list. All valid settings are activated. Note: Click Save All in the main menu to save changes permanently. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 72: Wireless Security

    CLI 'load' command. Uncheck this box to allow network connections without requiring authentication. Note: This dialog item is visible only if enabled by the Options Key and X.509 certificates are loaded on the RDL-3000. Fast Registration Enable: (Subscriber only) Check this box to enable the sector controller to use pre-shared keys for quick authentication of a subscriber (bypass Diffie- Hellman method).

  • Page 73: Fig. 48: Web - Wireless Security Screen - Subscriber

    2. HTTPS (SSL) is not available until an X.509 certificate and DSA private key have been loaded (ssl_cert_<mac>.pem and ssl_key_<mac>.pem). 3. AES encryption is not available until the X.509 certificate and key files have been loaded (usr_wacert_<mac>.der, usr_wcert_<mac>.der, and usr_wkey_<mac>.der). 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 74: Provisioning Screens

    Service has this VID added (Q-in-Q) before the packet is forwarded over the subscriber Ethernet port. DL Broadcast (Kbps): Broadcast traffic downlink rates. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 75 OIR: Available downlink bandwidth (based on scheduling cycle). UL Unicast (Kbps): Unicast traffic uplink rates. CIR: Requested minimum committed uplink bandwidth. OIR: Calculated available uplink bandwidth (based on scheduling cycle). 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 76: Subscriber Link Configuration

    Advanced Subscriber Link Configuration Adaptive Modulation: The adaptive modulation feature automatically adjusts modulation and coding settings to maintain wireless link operation during periods of 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 77 Example: In a link operating at 16 QAM 3/4, transient interference may result in a temporary change from to 16 QAM 1/2 to maintain the required PER. The RDL-3000 periodically tests transmission at a higher rate and resumes operation at the normal rate after the interference has cleared.
  • Page 78 PIR of that wireless link. Incorrect PIR settings may result in excessive latency or dropped packets (buffer full condition). DL Burst Rate: Downlink burst rate for unicast traffic. The RDL-3000 will establish a wireless link only at the specified rate. The communicating wireless unit must also be operating at the same fixed rate.

  • Page 79: Service Groups

    UL Unicast (Kbps): Minimum rate for uplink unicast traffic. CIR: Operator requested bandwidth. OIR: Assigned bandwidth. DL Unicast (Kbps): Minimum rate for downlink unicast traffic. CIR: Operator requested bandwidth. OIR: Assigned bandwidth. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 80: Service Group Status

    Transmitted Packets: Total broadcast (or multicast) packets successfully transmitted over the wireless interface (does not include discarded or errored packets). Controls Reset: Click to reset displayed statistics counters. Refresh: Click to update displayed statistics counters. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 81: Service Group Configuration

    802.1Q VLAN ID [0-4095]: Enter the VID associated with this Group definition. This field is used only when 'Tagged' is selected in the Group Tagging Mode field. Default Priority: Enter the default 802.1p priority setting. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 82: Advanced Service Group Configuration

    When adaptive modulation enabled, automatic adjustments modulation/coding will result in relative changes to the CIR/PIR of that wireless link. Controls Apply: Click to accept and activate displayed settings. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 83: Subscriber Service Status

    Rx: Total received wireless packets. Tx: Total transmitted wireless packets. Controls Reset: Click to zero all displayed statistics counters. Refresh: Click to update displayed statistics counters. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 84: Subscriber Service Configuration

    Use the drop-down menu to choose the Service Group for this service. VLAN Tagging: Select the classification mode for this Service. Tagged: Select tagged to associate a unique VID with this Group. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 85: Advanced Service Configuration

    PIR of all Services and Service Groups using that wireless link. Incorrect PIR settings may result in excessive latency or dropped packets (buffer full condition). Controls Apply: Click to accept and activate displayed settings. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 86: Utilities Screens

    User Manual Utilities Screens 4.7.1 Spectrum Sweep Use the RDL-3000 Spectrum Sweep feature to determine if RF spectrum is clear of Spectrum Sweep interference. Click Utilities -> in the left hand menu to display the Spectrum Sweep configuration screen. Click to expand or to hide fields.

  • Page 87: Spectrum Sweep Chart

    +/- 10 MHz from the candidate channel. When a potentially clear channel is identified, reduce the frequency range and step size while increasing the sample size to monitor the channel over a longer period. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 88: Users Management

    (_). Important: There must always be at least one 'administrator' account active on the RDL-3000. You can not manage the RDL-3000 if all accounts are 'user'. Note: When user authentication is set to RADIUS Only or Local + RADIUS, the authorization data is retrieved from the RADIUS server at ten minute intervals.

  • Page 89: System Users

    User name: Select an existing user account. Admin User: Enter the name of the administrator authorizing this change. Admin Password: Enter the administrator password. Del: Click to delete user and permanently save changes. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 90: Product Options

    The options keys (a string of numbers, letters, and dashes) enable RDL-3000 features including the maximum uncoded burst rate and frequency ranges (See 8.3: Regional Codes on page 138). Options key are unique to a specific RDL-3000 (keyed to MAC address).

  • Page 91: Table 8: Defaults With No Options Key

    RDL-3000 User Manual The RDL-3000 has the following default settings when operating with no option key: Table 8: Defaults with No Options Key System SNMP VLAN for Data (Classification) Disabled VLAN for Management Disabled Wireless System Mode PMP SS Only...

  • Page 92: Antenna Alignment Screen

    If Wi-Fi service is available, you may also be able to access the web alignment page directly from a laptop computer and most web-enabled handheld devices using the following URL: http:// [RDL-3000 IP Address] / usr / aa.html For example: http:// 192.168.20.25 / usr / aa.html 70-00158-01-DRAFT Proprietary Redline Communications ©...

  • Page 93: Firmware Management Screen

    Click Utilities -> in the main menu to display the Firmware Management screen. This screen is used to upgrade the RDL-3000 with new firmware. The RDL-3000 contains non-volatile storage for two versions of the firmware. The upload overwrites the Alternative (inactive) version.
  • Page 94 Do not interrupt the transfer process. When the transfer is complete, the RDL-3000 checks the integrity of the uploaded file and registers a status message in the event log. If errors were introduced during the transfer process, the firmware file is discarded and the upload must be repeated.

  • Page 95: Cli Interface

    192.168.25.11, Net Mask = 255.255.255.0 Telnet Access Use the following steps to establish a Telnet session with the RDL-3000. Refer to the RDL-3000 User Manual section 5: CLI Interface for a complete description of the available commands. 1. On the PC, open a Telnet client and enter the unit IP address. The factory default IP is '192.168.25.2'.

  • Page 96: Table 9: Cli - Command Summary

    User Manual Table 9: CLI - Command Summary Command Description apply Activate changes without overwriting saved configuration. Add static ARP definitions to the RDL-3000 ARP table. chgver Change default version of firmware and reboot. clear Clear commands. Delete an ID.

  • Page 97: Command Set

    Table 12: CLI - arp arp <add> <del> <print> add <Host> <MAC> Add a new static entry in the RDL-3000 ARP table. Use 'save config' to save these entries permanently. A maximum of two static entries can be added to the table. Host Host IP address.

  • Page 98: Chgver

    RDL-3000 User Manual 5.3.3 chgver Use the chgver command to change the firmware version loaded when the RDL-3000 is rebooted. Table 13: CLI - chgver Use this command to switch to alternate firmware version. chgver (no options) Switch to the binary saved in the alternate version of firmware. This command works silently (no operator confirmation) and the RDL-3000 reboots immediately.

  • Page 99: Enable

    - Frequency validation range index. Use 'print' to display IDs. print Print the list of frequency ranges. Local frequency ranges: index begin ------------------------------- 5810.0 5820.0 5830.0 5835.0 reload Reload the active list of frequency validation ranges. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 100: Generate

    Table 18: CLI - generate Use the built-in utility to create SSH keys. generate <sshkey> The RDL-3000 will generate a key using its internal encryption engine. sshkey <dsa | rsa> Generate DSA key for SSH. Generate RSA key for SSH.
  • Page 101 Link status code. lulblk Uplink total blocks. lulbr Uplink burst rate. luldblk Uplink discarded blocks. lullfr Uplink lost frames. lulrblk Uplink retransmitted blocks. lulrssi Uplink RSSI. lulsnr Uplink SINADR. luptime 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 102 Uplink Rx packets. ultpkt Uplink Tx packets. werxpkt Wireless Eth Rx packets. werxpktdis Wireless Eth Rx discarded packets. werxpkterr Wireless Eth Rx packets with errors. wetxpkt Wireless Eth Tx packets. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 103: Load

    <server IP> <filename> Use this command to load the RDL-3000 configuration information from a file (created using script command) located on a remote TFTP server. The file must be located in the TFTP default directory. The 'save config' command must be used to save the loaded configuration in non volatile memory.

  • Page 104: Logout

    - Specify a unique ID for this Link: 5.3.13 ping Use the ping command to initiate an ICMP ping command from the RDL-3000. Table 23: CLI - ping Send an ICMP ping command. This can be used to confirm network access to FTP/TFTP servers, syslog servers, etc.

  • Page 105: Save

    Use the script command to save a file containing a string of Commands that can be used to restore the current (active) configuration of the RDL-3000. Saved configuration files can be viewed, copied, and/or modified using a text editor.

  • Page 106: Table 28: Cli - Set

    (faster rate = stronger signal). chsize <bandwidth> Enter the channel bandwidth (enabled by options key). bandwidth Enter bandwidth in MHz (e.g., 20). congid <id> <gid> Assign a Service Group to this Service. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 107 = Link ID number. dlratio <20-80> Set the downlink ratio. encmode <0 - 4> Set the encryption mode. The same encryption level must be selected on communicating systems. 0 - Disable 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 108 - Group reference ID number. pri - Group 802.1p priority setting (0-7). grpvid <id> <vid> Display/set the value of the VLAN ID for this Service Group. id - [id number] 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 109 - ID for Link, Service, or Service Group. name - Name (maximum 15 text characters). ipaddr <ip> <mask> Enter the IP address and subnet mask of the RDL-3000. Confirmation is required. Example: set ipaddr ip 192.168.100.10 mask 255.255.255.0 ldlpir <id> <50-50000>...
  • Page 110 Event messages are logged for each of these operations. Enter the 'show log' command to view event messages. peermac <MAC> MAC address of the communicating RDL-3000. Required for wireless encryption. Use form: aa:bb:cc:dd:ee:ff pskey <key>...
  • Page 111 <id> <lid> Assign a Link ID to this Service. id - Service ID number. lid - Link ID number. srvpri <id> <pri> Assign a priority to this Service. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 112 A-Z, 0-9, dash (-), and underscore (_). sysloc <location> Enter location description for this RDL-3000 location. Enter up to thirty (30) alpha- numeric characters including a-z, A-Z, 0-9, dash (-), and underscore (_). syslog <off | on>...
  • Page 113 User Manual Table 28: CLI - set sysname <text> Enter the name for this RDL-3000. Use any combination of up to 20 letters and numbers. telnet <off | on> Enable or disable the Telnet port. If the Telnet port is disabled, it will not be possible to use the CLI interface.

  • Page 114: Show

    Link Down Sub C Link Down Sub D Link Down Display the system events log. service Show the list of enabled service connections. 192.168.25.2(show)# service 17 service1 Conn 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 115: Snmpcommunity

    Create a new SNMP trap. The index value is assigned automatically. Up to eight settings may be entered. ipaddr Enter destination IP address port Enter destination port address. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 116: Upgrade

    List all SNMP trap settings. 5.3.22 upgrade Use the upgrade command to upload a new firmware binary file to the RDL-3000. Table 32: CLI - upgrade Configure SNMP community permissions. upgrade <ip addr> <file name> <user name> <password> ip addr IP address of the FTP/TFTP server.

  • Page 117: User

    (_). The operator must confirm their own password and a password for the new account. The RDL-3000 supports administrator and user accounts. See Table 4: Web - Screens and User Access on page 42 for permissions associated with each group.

  • Page 118: Diagnostics & Troubleshooting

    For correct operation the host computer and the RDL-3000 must be on the same subnet. For example, if the RDL-3000 is using the factory default settings, the host computer could be set for an IP of 192.168.25.3 and a subnet mask of 255.255.255.0.

  • Page 119: Status Codes

    4, 5, 6 PLL Errors Firmware Error No Ethernet packets received by the wireless MAC 17, 18, 19, 20, 21, 22, MAC Internal Errors 23, 24, 25, 26, 27, 28 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 120: Working With System Parameters

    RDL-3000 User Manual Working with System Parameters The RDL-3000 is a highly configurable communications device. This section describes how to view, modify, test, and save parameter settings. 6.3.1 Parameters Overview The RDL-3000 maintains the following sets of parameters: Runtime Parameters Currently active system settings.

  • Page 121: Factory Default Settings

    1. Make all necessary editing changes to the configuration. 2. Issue the command 'reboot 300'. This will set a timer to reboot the RDL-3000 in five minutes (5 x 60 seconds). A longer or shorter time can also be specified.
  • Page 122 No change. buzzer Buzzer dlcir Service DL CIR encmode Encryption Type None files No change freq Frequency List No change. grpcir Service UL CIR idtable No change 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 123: Long Reset (Recover From Lost Password Or Ip)

    If the operator can not access the RDL-3000 management interface (forgotten IP, username, and/or password), a long reset operation must be performed to provide access the unit. The long reset provides an opportunity to login to the RDL-3000 using the default IP, usernames and passwords. The long reset procedure requires local access to the RDL-3000 PoE adapter to power-cycle the RDL-3000, and a PC with an Ethernet cable and a Telnet client or Web browser.

  • Page 124: Restore Default Passwords Only

    Modify settings as required and reboot the RDL-3000 to exit from long reset mode. If using a web browser to access the RDL-3000, prepare the PC for by opening a Web browser on the PC and typing the following URL into the address bar: http://192.168.25.2...
  • Page 125 IP address (192.168.25.2) and the default administrator username (admin) and password (admin). Perform a long reset and use a Web browser to login to the RDL-3000 using the default IP address (192.168.25.2), and the default administrator username (admin) and password (admin).

  • Page 126: Security

    Chapter 7 Security Overview The Redline RDL-3000 provides a high level of security and reliability. Security features include wireless authentication using X.509 certificates, and wireless encryption using AES encryption. AES encryption is optional and may be purchased separately and enabled by loading an AES-enabled options key.

  • Page 127: Wireless Authentication

    Always use secure transfer (e.g., SSH or SSL) when working with encryption keys and certificates. It is recommended to use the RDL-3000 local Ethernet port to transfer encryption keys and certificates, or sftp if loading certificates or keys across an open network.

  • Page 128: Aes Encryption

    1. Obtain an AES-enabled upgrade options key for all communicating RDL-3000 systems. 2. Copy the new options key to each RDL-3000 and set this to be the active key. See section 4.7.3: Product Options on page 90. 3. Choose the same AES encryption setting on all communicating RDL-3000 systems.

  • Page 129: Ssh For Secure Cli

    5. Login to the RDL-3000 and verify the files have been successfully loaded. Example Use TFTP server at IP address 192.168.25.10 to load an SSH key file for the RDL-3000 with MAC address 00 09 02 01 C1 9A. 192.168.25.2# load file 192.168.25.10 dsa_key_00-09-02-01-C1-9A.pem usr tftp 192.168.25.2# show files usr...

  • Page 130: Https/Ssl For Secure Web

    The security certificate presented was issued for a different website address.) e operator has full access to the secure Web interface. It is recommended that system operators generate a unique certificate and private-public keys, and load these on the RDL-3000 before using the HTTPS feature in a production environment. 7.5.2 Enable HTTPS/SSL HTTPS is disabled by (factory) default.
  • Page 131 Ethernet port when transferring encryption keys and certificates to the RDL-3000. 4. Use the command 'show files usr' to verify the files have been successfully loaded. 5. Reboot the RDL-3000 to activate changes to the key files. HTTPS is available when the system reboot is completed. Example Load HTTPS (SSL) key and certificate files from the TFTP server at 192.168.25.1 to the RDL-...

  • Page 132: Appendices

    RDL-3000 User Manual Chapter 8 Appendices Technical Specifications Table 39: Spec. - RDL-3000 Technical Specifications T502 Radio: RF Band: 4.940 - 5.850 GHz (TDD) Rx Sensitivity: -89 dBm @ 3 Mbps max. Center Freq. Steps: 2.5 MHz Channel Size: 5, 10, 20 MHz (firmware selectable) Rx Sensitivity: -98 dBm @ 3 Mbps max., 5 MHz channel, BPSK...
  • Page 133 With lightning arrestor installed. Pending. Specifications are subject to change without notice. Note: Refer to the RDL-3000 antenna Guide for a list of supported antennas and mounting brackets. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page...

  • Page 134: Classification: Services And Service Groups

    8.2.1 Packet Classification at the Sector Controller The RDL-3000 PMP deployment can be configured for use with VLAN tagged traffic, untagged traffic, or a combination these two types. Ingress packets received on the sector controller Ethernet port are classified according to the criteria in the following table.

  • Page 135: Table 41: Spec. - Classification: Packet Received On Sc Wireless Interface

    --- AND --- Forward: Packet unmodified to the sector controller Ethernet port Notes: 1 If sector controller Ethernet port is enabled, 2. If SS to SS Multicast enabled. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 136: Packet Classification At The Subscriber

    8.2.2 Packet Classification at the Subscriber The RDL-3000 PMP deployment can be configured for use with VLAN tagged traffic, untagged traffic, or a combination these two types. Ingress packets received on the subscriber Ethernet port are classified according to the criteria in the following table.

  • Page 137: Vlan (802.1Q) Fields

    VLAN Identifier (VID): 12-bit field specifying the VLAN. Value 0 indicates the frame does not belong to any VLAN and the 802.1Q tag is specifying only a priority. VLAN value may be 1 to 4094. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 138: Regional Codes

    A regional code is integrated into each options key. This feature enforces compliance to regional regulatory statutes. Options keys are unique to a specific RDL-3000 (keyed to MAC address). Available frequencies are limited to the radio type (e.g., 5.4 GHz).
  • Page 139 2. Center frequencies. FCC Part 15 ETSI EN302 502 v1.2.1 5. IC RSS-210 6. TKG § 55/EN302 502 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...

  • Page 140: Fcc & Ic Certified Antennas

    * 5 MHz channel set to the lowest/highest channel setting is allowed only at reduced power. See Table 48: Spec. - FCC & IC Certified Antennas: 5.8 GHz PTP Band Edge Operation. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142...

  • Page 141: Table 48: Spec. - Fcc & Ic Certified Antennas: 5.8 Ghz Ptp Band Edge Operation

    A6015MTD 60°, 4.9-5.9 GHz, Panel, Dual Pol. A2308MFD 8°, 4.9-5.9 GHz, Panel, Dual Pol. A2FT2906LTPD 6°, 4.9-5.9 GHz, Parabolic, Dual Pol. A3FT3204LTPD 4°, 4.9-5.9 GHz, Parabolic, Dual Pol. 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page of 142 November 25, 2010...
  • Page 142 302 Town Centre Suite 100 Markham, Ontario Canada L3R 0E8 www.redlinecommunications.com 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page 142 of 142 November 25, 2010...
