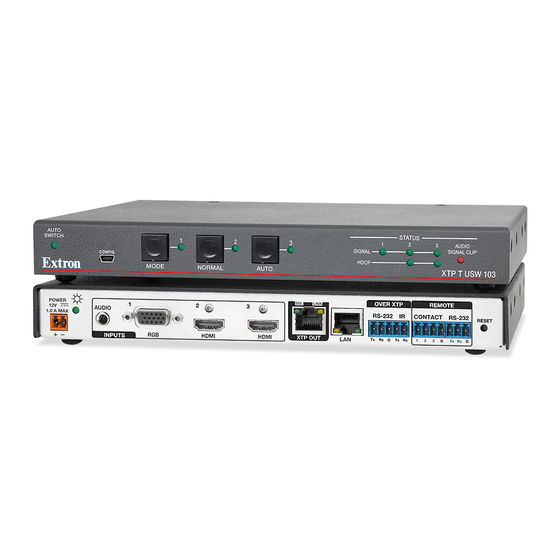

Extron electronics XTP T USW 103 User Manual

Xtp systems three input switcher with an integrated xtp transmitter
Hide thumbs Also See for XTP T USW 103:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
XTP Systems
XTP T USW 103
Three Input Switcher
with an Integrated XTP Transmitter
68-2292-01 Rev. F
07 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTP T USW 103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics XTP T USW 103

Summary of Contents for Extron electronics XTP T USW 103

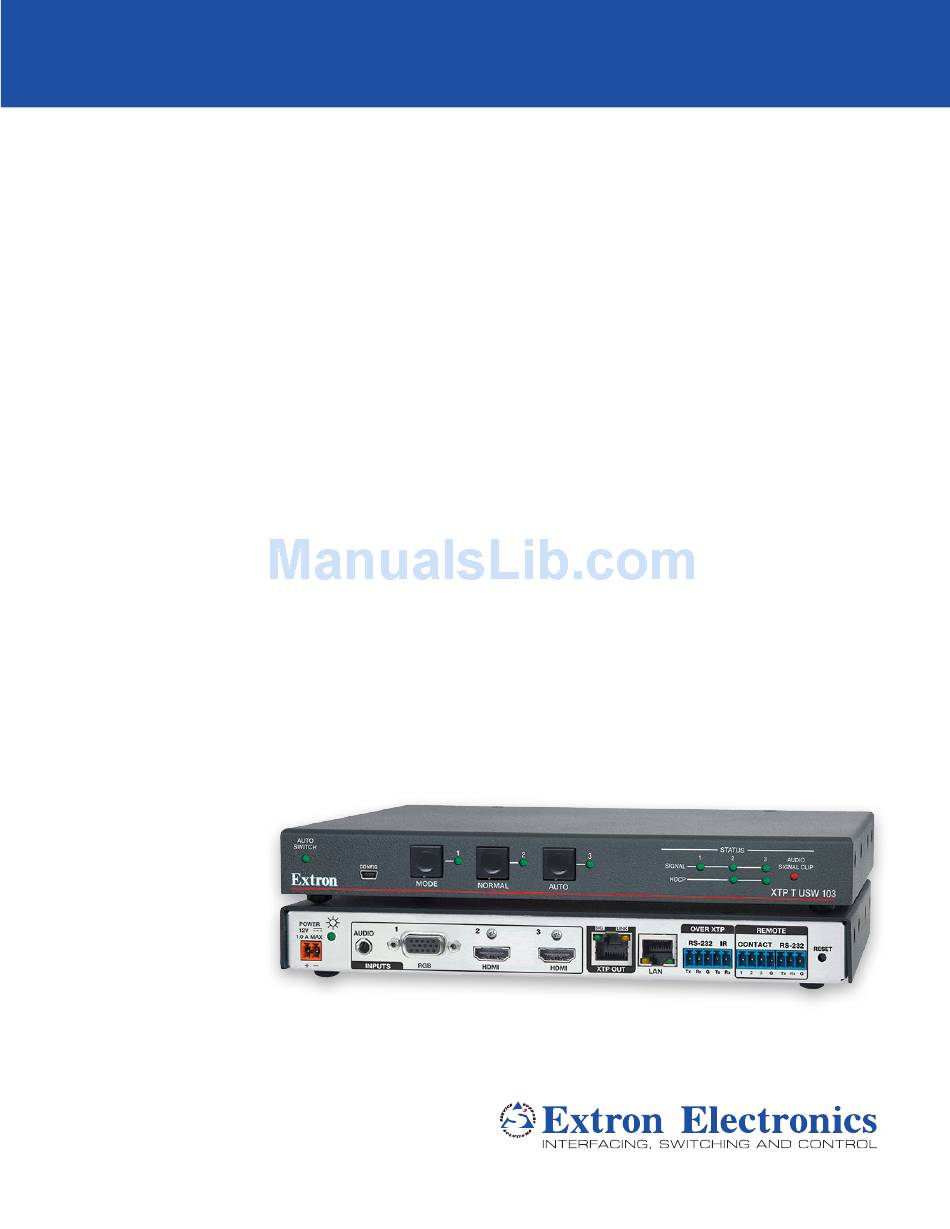

  • Page 1 User Guide XTP Systems XTP T USW 103 Three Input Switcher with an Integrated XTP Transmitter 68-2292-01 Rev. F 07 17...

  • Page 2: Safety Instructions

    Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVISO: Il simbolo, , se usato sul prodotto, serve ad avvertire l’utente WARNING: This symbol, , when used on the product, is intended to della presenza di tensione non isolata pericolosa all’interno del contenitore alert the user of the presence of uninsulated dangerous voltage within the del prodotto che può...
  • Page 3 ついては、 エクス トロンのウェブサイ ト より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright © 2017 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks( ®...
  • Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 5: Conventions Used In This Guide

    Conventions Used in this Guide Notifications The following notifications are used in this guide: Potential risk of severe injury or death. WARNING: AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information.
  • Page 7 Introduction ..........1 Commands ............19 Guide Overview ........... 1 Input Commands ........... 19 XTP T USW 103 Switcher Description ....1 Audio Configuration Commands ....19 System Compatibility ........... 2 Picture Adjustment Commands Features .............. 2 (Analog Only) ..........20 Preset Commands .........
  • Page 8 XTP T USW 103 Switcher • Contents...

  • Page 9: Introduction

    Guide Overview This guide provides installation, operation, control, and reference information for the XTP T USW 103 Switcher. In this guide, the terms “switcher” and “XTP T USW 103” are used interchangeably to refer to the XTP T USW 103 Switcher.

  • Page 10: System Compatibility

    The following diagram shows one way the XTP T USW 103 can be integrated in an XTP point-to-point application. The switcher can also be used with an XTP matrix switcher (see the XTP matrix switcher user guide for more details on matrix applications and configuration).
  • Page 11 • Remote power capability — Allows the XTP T USW 103 to be powered by an XTP CrossPoint Matrix Switcher or XTP Power Injectors to simplify integration. Internal test patterns — Include five test patterns for calibration and setup.

  • Page 12: Installation

    Topics in this section include: • Rear Panel Connectors • Connection Details The XTP T USW 103 can be placed on a tabletop or mounted in a rack or under a desk (see Audio Plugs.eps Mounting on page 37). Rear Panel Connectors...
  • Page 13 • For HDMI cables, the maximum cable length is 15 feet (4.6 meters). • Use Extron LockIt Cable Lacing Brackets to secure HDMI connectors to the device (see HDMI Connection on page 7). XTP T USW 103 Switcher • Installation...
  • Page 14 • Ethernet communication • System communication • Signal LED indicator — Lights green when the XTP T USW 103 Signal outputs a video signal or a test pattern. Link LED indicator — Lights yellow when XTP devices are connected Link and communication is established.

  • Page 15: Connection Details

    4). For wiring considerations, see Power Connection on page 11. The Power LED lights to indicate the device is receiving power. NOTE: The XTP T USW 103 can also be powered remotely (see Remote power on page 13). Connection Details HDMI Connection To secure the HDMI cable to the HDMI input connector, use an Extron LockIt Cable Lacing Bracket and a tie wrap.

  • Page 16: Tp Cable Termination And Recommendations

    Connector Figure 6. Twisted Pair Cable Termination Supported cables The XTP T USW 103 is compatible with shielded twisted pair (F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cables. ATTENTION: • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the XTP products.

  • Page 17: Contact Closure Communication

    Wire the connector as shown in figure 7. CONTACT 1 2 3 G Heat Shrink Over Shield Wires Ground Wire Nut Device 3 (Switches, Switch relays, or Device 2 similar items) Device 1 Figure 7. Wiring the Contact Closure Connector XTP T USW 103 Switcher • Installation...

  • Page 18: Rs-232 And Ir Over Xtp Communication

    Any shorter and the wires can be easily pulled out even if tightly fastened by the captive screws. • S’ils sont un peu plus courts, ils pourraient sortir, même s’ils sont attachés par les vis captives. XTP T USW 103 Switcher • Installation...

  • Page 19: Power Connection

    (5 mm) Max. Smooth Ridges Power Supply Output Cord Figure 9. Power Wiring The switcher can be powered by a local power supply (see the notifications on the next page for local power considerations). XTP T USW 103 Switcher • Installation...
  • Page 20 La longueur idéale est de 5 mm (3/16 inch). TIP: Do not tin the stripped power supply leads. Tinned wires are not as secure in the captive screw connectors and could be pulled out. XTP T USW 103 Switcher • Installation...

  • Page 21: Remote Power

    Remote power The XTP T USW 103 can be powered remotely through an XTP Power Injector or through an XTP matrix switcher. ATTENTION: • XTP remote power is intended for indoor use only. No part of the network that uses XTP remote power should be routed outdoors.

  • Page 22: Operation

    Operation This section contains information for front panel operation and configuration of the XTP T USW 103. Topics in this section include: • Front Panel Features • Front Panel Operation EDID • • Reset Mode Front Panel Features AUTO STATUS...

  • Page 23: Front Panel Operation

    SIS commands on page 19). Normal Switch Mode Press and hold (for about 8 seconds) inputs 1 and 2 simultaneously until the Auto Switch LED turns off. This is the default switch mode. XTP T USW 103 Switcher • Operation...

  • Page 24: Edid

    EDID To manage EDID on the XTP T USW 103, use the XTP System Configuration Software (see EDID Minder on page 35). The XTP T USW 103 can record and save EDID in a user memory location, select a pre-defined EDID, or use EDID from a display connected to a receiver.

  • Page 25: Sis Configuration And Control

    Host Device Connection Use a computer running the Extron DataViewer utility or use a control system to enter SIS commands. To connect directly to an XTP T USW 103, connect the computer to the front panel configuration port (see figure...

  • Page 26: Error Responses

    Error Responses When the XTP T USW 103 receives an SIS command and determines that it is valid, it performs the command and sends the corresponding response to the host device. If the command is determined invalid or contains invalid parameters, the receiver returns an error response to the host.

  • Page 27: Commands

    = priority to the lowest numbered active input X& = 720p @ 50 Hz = Black video signal resolution = 720p @ 60 Hz (default) = 1080p @ 60 Hz XTP T USW 103 Switcher • SIS Configuration and Control...

  • Page 28: Preset Commands

    = off or disable = Enable or disable = on or enable (default) = Default) = Picture adjustment = Default) 65535 32768 = Horizontal or vertical shift = Preset number XTP T USW 103 Switcher • SIS Configuration and Control...

  • Page 29: Edid Commands

    = HDMI (input 3) = off or unlock (default for executive mode) = Enable or disable = on or enable = HDCP authorization off = HDCP authorization 1 = HDCP authorization on (default) XTP T USW 103 Switcher • SIS Configuration and Control...
  • Page 30 = 1080p @ 60 Hz = no source connected = HDCP status = HDCP compliant source = non-HDCP compliant source = no input detected = Input signal presence = input detected XTP T USW 103 Switcher • SIS Configuration and Control...

  • Page 31: Xtp System Configuration Software

    Configuration Software This section contains installation and configuration procedures for the XTP System Configuration Software. The XTP T USW 103 can also be controlled with SIS commands (see SIS Configuration and Control on page 17). Topics in this section include: Software Installation •...

  • Page 32: Software Product

    Open the executable (.exe) file from the save location. Follow the instructions that appear on the screen. By default, the installation creates a directory in the Program Files or Program Files (x86) folder. XTP T USW 103 Switcher • XTP System Configuration Software...

  • Page 33: Software Operation

    Software Operation The XTP T USW 103 can be controlled directly from the front panel configuration port (see figure on page 14) or remotely from a connected XTP matrix switcher. Connections The XTP System Configuration Software opens to the screen. This screen is Connections used to establish communication with an XTP device through USB connection.

  • Page 34: Menu Bar

    NOTE: The options are not Backup and Restore Commissioning Report available when directly connected to the device. See an XTP matrix switcher user guide (www.extron.com) for more information on these features. XTP T USW 103 Switcher • XTP System Configuration Software...

  • Page 35: Update Firmware

    This option resets all disabled confirmation dialogs to the default settings. From the menu, select . The Tools Software Preference Software Preference dialog box opens. Figure 22. Software Preference Dialog Box Click the button. The dialog box closes. Reset XTP T USW 103 Switcher • XTP System Configuration Software...
  • Page 36 This option opens the XTP System Configuration Software help file in a Web browser. From the menu, select Help Help Extron Website This option opens the Extron website in a Web browser. From the menu, select Help Extron Website XTP T USW 103 Switcher • XTP System Configuration Software...

  • Page 37: Device Settings

    NOTE: The signal indicators on the AV input buttons display green when a signal is present on the corresponding input or gray when there is no signal present. XTP T USW 103 Switcher • XTP System Configuration Software...
  • Page 38 HDCP authorized device. If the box is not checked, the source is blocked from encrypting its output. This may result in some content not being passed by the source device. NOTE: HDCP authorization is for inputs 2 and 3 only. XTP T USW 103 Switcher • XTP System Configuration Software...
  • Page 39 Save Preset — To save a preset, select one from the list of presets and click the Save button. Preset Recall Preset — To recall a saved preset, select the desired preset from the list of presets and click the button. Recall Preset XTP T USW 103 Switcher • XTP System Configuration Software...
  • Page 40 Allow Audio Only to be output. When enabled, select the desired resolution and refresh rate from the drop-down list to emulate in place of video. Signal Type XTP T USW 103 Switcher • XTP System Configuration Software...

  • Page 41: General Tab

    Factory Reset — Click the button to reset the switcher to factory Factory Reset settings except for firmware. Reset mode NOTE: This is the same as the SIS command (see ZXXX page 22). XTP T USW 103 Switcher • XTP System Configuration Software...
  • Page 42 HDCP — Displays the HDCP status of inputs 2 and 3. Audio Information section Selected Audio Input — Displays the type of the currently selected audio input. Analog Audio Gain — Displays the analog audio gain in dB. XTP T USW 103 Switcher • XTP System Configuration Software...

  • Page 43: Edid Minder

    To assign EDID to all inputs: Select an available EDID icon from the , or Favorites Connected Outputs Available panel ( EDID Click the button ( Assign to All XTP T USW 103 Switcher • XTP System Configuration Software...
  • Page 44 (located to the right of the panel) appears, Common Timings Connected Outputs listing the EDID settings common among the selected outputs. Select the desired common EDID. The EDID is shown in the panel. Available EDID XTP T USW 103 Switcher • XTP System Configuration Software...

  • Page 45: Reference Information

    Information This section contains mounting information. Mounting The XTP T USW 103 can be placed on a tabletop or mounted in a rack or underneath a desk. Tabletop Mounting Attach the provided rubber feet to the bottom four corners of the enclosure.

  • Page 46: Extron Warranty

    Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
