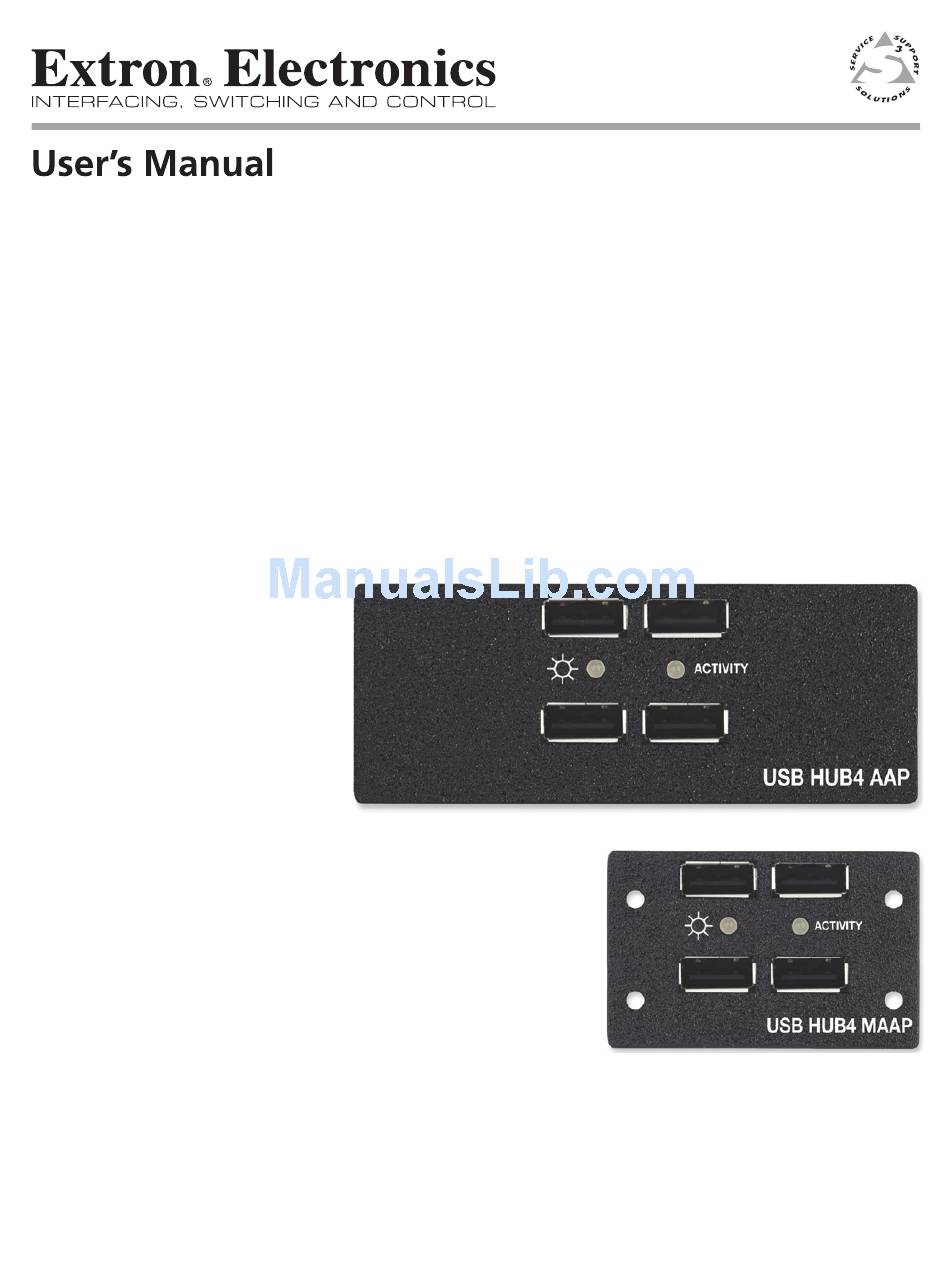

- Page 1 USB HUB4 Series AAP and MAAP USB Hubs 68-1735-01 Rev. A 08 09...
- Page 2 Precautions Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and maintenance equipment is intended to be used with a main power system with a grounded (neutral) conductor. The (servicing) instructions in the literature provided with the equipment.
- Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 USB HUB4 Series...
-
Page 5: Table Of Contents
Table of Contents Chapter One • Introduction ...................... 1-1 About this Manual ........................1-2 About the USB HUB4 ......................... 1-2 Features ............................1-2 Application Diagram ........................ 1-3 Chapter Two • Installation ......................2-1 Installation Overview ......................2-2 Rear Panel Connections ...................... - Page 6 Table of Contents, cont’d USB HUB4 Series • Table of Contents...
-
Page 7: Chapter One • Introduction
USB HUB4 Series Chapter One Introduction About this Manual About the USB HUB4 Application Diagram... -
Page 8: Features
About this Manual This manual contains information about the installation and operation of the Extron USB HUB4 AAP and the USB HUB4 MAAP. The terms “hub” and “HUB4” are used to refer to both models interchangeably when instructions apply to both. -
Page 9: Application Diagram
Application Diagram The following diagram shows an example of a USB HUB4 AAP mounted to an MLM wallplate and installed in a podium. DISPLAY AUTO IMAGE MUTE VOLUME ACTIVITY CONFIG USB HUB4 AAP MediaLink Extron MLM 104 LAAP Extron with... - Page 10 Introduction, cont’d 1-4 USB HUB4 Series • Introduction...
-
Page 11: Chapter Two • Installation
USB HUB4 Series Chapter Two Installation Installation Overview Rear Panel Connections Front Panel Features Mounting the USB HUB4... -
Page 12: Rear Panel Connections
W G B W G B W G B W G B D+ D- +V +V D- D+ +V D- D+ +V D- D+ +V D- D+ USB HUB4 AAP rear panel USB HUB4 MAAP rear panel USB HUB4 Series • Installation... -
Page 13: Usb In Connectors
The rear panels of the USB HUB4 AAP and MAAP models contain two types of USB In connectors, either of which can be used for the USB cable that connects your computer to the HUB4. Power connector — If using an Extron external 12 VDC power supply to power the HUB4, connect it to the first two pins (labeled In) of this 4-pole, 3.5 mm direct insertion captive screw connector. - Page 14 Installation, cont’d White Shield Green Type A connector Black USB Type A-to-B (or mini B) cable with the Type B connector removed Twist the exposed shield strands together. Strip 1/8 inch (4.5 mm) of the insulation from the end of each colored wire of the cable.
-
Page 15: Connecting The External Power Supply
USB HUB4 AAP Mounting Frame Type Mini B POWER USB Connector 500mA Type A USB IN USB 1 WIRE COLOR WIRE COLOR W G B W G B Ports +V D- D+ USB Cable (6’) Rear Red / +V Captive Screw... - Page 16 AUDIO IN 12VDC POWER ACTIVITY USB IN WIRE COLOR WIRE COLOR W G B W G B USB HUB4 AAP +V D- D+ +V D- D+ EXTENDER WM AAP Front Rear Extender WM AAP USB HUB4 AAP Desktop Power Supply Providing power to an external device via the USB HUB4 Plug the external power supply’s IEC connector into an AC power source.
-
Page 17: Front Panel Features
Front Panel Features ACTIVITY HUB4 USB AAP USB HUB4 AAP USB HUB4 AAP front panel ACTIVITY ACTIVITY USB HUB4 MAAP HUB4 USB MAAP USB HUB4 MAAP front panel USB hub connectors — Connect up to four USB peripheral devices (for example, a keyboard, mouse, or Web cam) to these Type A female USB connectors. -
Page 18: Mounting The Usb Hub4
Installation, cont’d Mounting the USB HUB4 The USB HUB4 can be mounted to a wall, on a rack, in furniture, or in an Extron architectural product, such as a cable cubby or HSA. Wall or furniture mounting The HUB4 can be attached to a wall, podium, or other flat surface with either a stud-mounted wall box or with a wall mounting bracket (such as the Extron MR or MR D series). -
Page 19: Mounting The Hub To A Mounting Frame
Follow the steps below to mount the HUB4 into the appropriate size mounting frame. USB HUB4 AAP: Tip (+) Insert the four threaded studs on the back of the front panel through the Ring (-) holes in an AAP mounting frame and seat the HUB4 in the frame’s two-gang... -
Page 20: Mounting The Hub To A Wall Box
T IV Extron USB HUB4 AAP Mounting a USB HUB4 AAP to a two-gang mounting frame USB HUB4 MAAP: Place the HUB4 MAAP in the one-gang opening in the mounting frame. Insert the included hex screws through the HUB4 front panel mounting holes and the holes in the MAAP mounting frame. -
Page 21: Rack Mounting The Usb Hub4
Attach the AAP or MAAP mounting frame with the attached HUB4 to the mounting bracket using the two included mounting screws. Wall Wall Mounting Bracket IT Y T IV Extron USB HUB4 MAAP USB Hub Extron CPM101 Mounting Frame Mounting a USB HUB4 MAAP to a mounting bracket Rack mounting the USB HUB4 You can mount the HUB4 to an optional rack shelf or directly onto a rack using an Extron rack space frame, such as the CPM112R (for the MAAP model) or the... -
Page 22: Rack Mounting Procedure
Captive Washer TI VI USB HUB4 AAP AAP 301 Architectural Frame Mounting a USB HUB4 AAP directly to a rack using an AAP 301 frame RSB 126 Rack Mount Shelf USB HUB4 MAAP TI VI (4) #4 - 40 Screws... -
Page 23: Appendix A • Reference Material
USB HUB4 Series A ppendix A Reference Material Specifications Part Numbers and Accessories... - Page 24 AAP or MAAP openings Enclosure type ....... Metal Enclosure dimensions USB HUB4 AAP Faceplate ..... 1.4" H x 3.5" W x 0.1" D (3.5 cm H x 8.9 cm W x 0.3 cm D) (double space AAP plate) Device ......1.4" H x 1.4" W x 1.2" D (3.5 cm H x 3.5 cm W x 3.0 cm D)
-
Page 25: Included Parts
Replacement Included part part number USB HUB4 MAAP (black, white, or RAL9010 white) 60-1030-11, -21, -51 USB HUB4 AAP (black or white) 60-1031-12, -22 USB Type A to USB mini Type B cable 26-264-06 USB HUB4 Series Setup Guide Optional accessories The following items can be purchased from Extron for use with the USB HUB4. - Page 26 Reference Material, cont’d A-4 USB HUB4 Series • Reference Material...
-
Page 27: Extron Warranty
Extron Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:... - Page 28 Extron USA - West Extron USA - East Extron Europe Extron Asia Extron Japan Extron China Extron Middle East Headquarters +800.633.9876 +800.3987.6673 +800.7339.8766 +81.3.3511.7655 +400.883.1568 +971.4.2991800 +800.633.9876 Inside USA / Canada Only Inside Europe Only Inside Asia Only +81.3.3511.7656 FAX Inside China Only +971.4.2991880 FAX Inside USA / Canada Only...
