DTP T USW 333

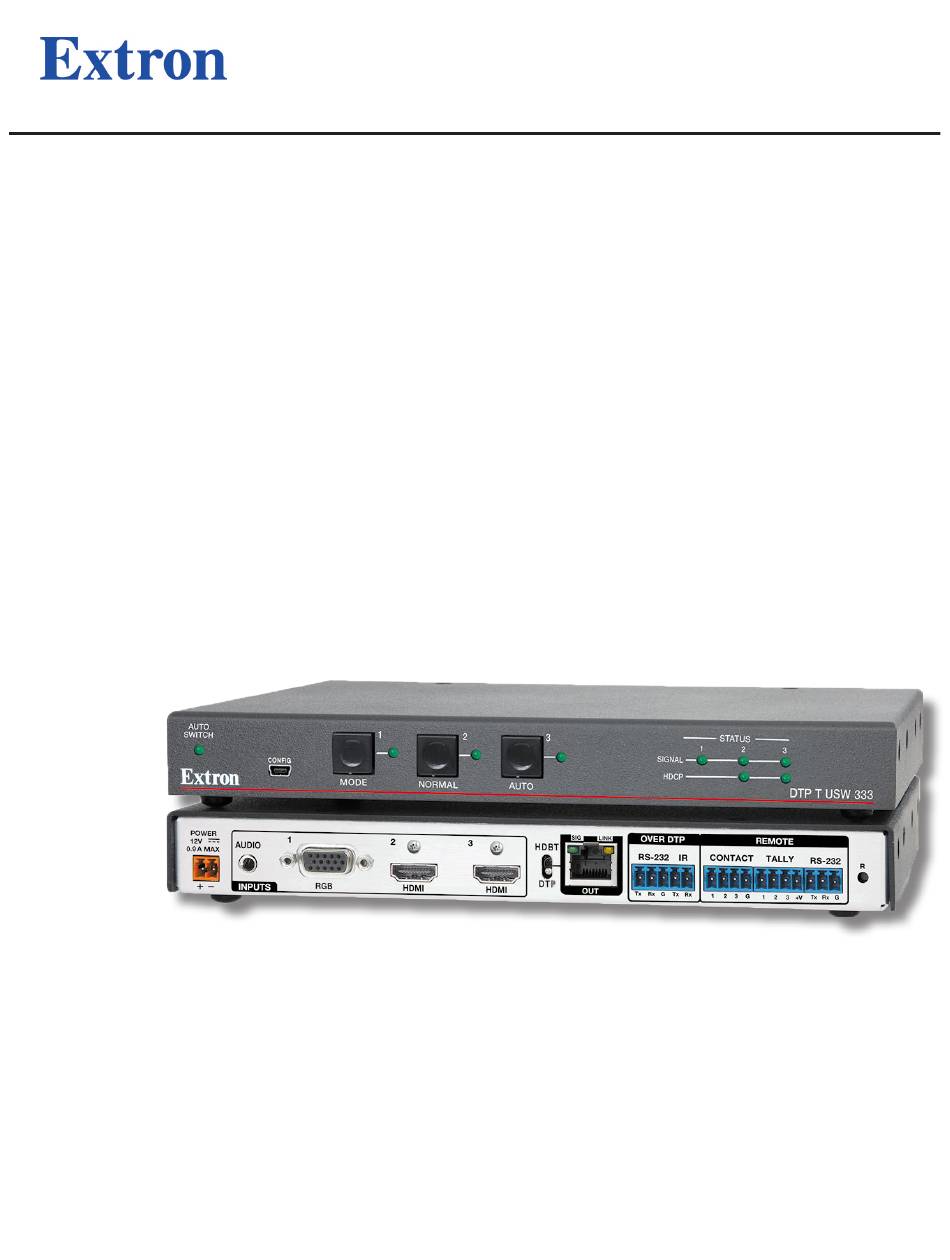

Three Input Switcher with Integrated DTP Transmitter
User Guide
DTP Systems
68-2564-01, Rev. F
02 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTP T USW 333 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics DTP T USW 333

Summary of Contents for Extron electronics DTP T USW 333

  • Page 1 DTP T USW 333 Three Input Switcher with Integrated DTP Transmitter User Guide DTP Systems 68-2564-01, Rev. F 02 24...
  • Page 2 Safety Instructions Safety Instructions • English WARNING: This symbol, , when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock. ATTENTION: This symbol, , when used on the product, is intended to alert the user of important operating and maintenance (servicing)
  • Page 3 Copyright © 2016-2024 Extron. All rights reserved. www.extron.com Trademarks All trademarks mentioned in this guide are the properties of their respective owners. ® The following registered trademarks ( ), registered service marks ( ), and trademarks ( ) are the property of RGB Systems, Inc. or Extron (see the current list of trademarks on the page at Terms of Use...
  • Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier.

  • Page 7: Table Of Contents

    Reference Information ..........29 Mounting the Switcher .......... 29 About this Guide ............. 1 Tabletop Use ............. 29 About the DTP T USW 333 Switcher ...... 1 Mounting kits ............. 29 STP Cable ............2 Control Communications ........2 UL Rack-Mounting Guidelines......30 Features ..............
  • Page 8 DTP T USW 333 • Contents viii...

  • Page 9: Introduction

    (70 meters). This is the range limitation of the IN1608, not the DTP T USW 333. The DTP T USW 333 is housed in a half rack width metal enclosure. It can be set on a tabletop, mounted in a rack, or mounted under or through furniture.

  • Page 10: Stp Cable

    • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the switching transmitter and receiver. The DTP T USW 333 does not work properly with these cables. • N’utilisez pas le câble AV Skew-Free UTP version améliorée UTP23SF d’Extron ou le câble STP201 pour relier les produits XTP avec les émetteurs ou les récepteurs DTP.
  • Page 11 • 1" (2.5 cm) high, half rack width metal enclosure — With a low profile enclosure, the device can be installed discreetly wherever needed. • Includes LockIt HDMI cable lacing brackets. DTP T USW 333 • Introduction...
  • Page 12 External Extron Everlast power supply included, replacement part — Provides worldwide power compatibility with high-demonstrated reliability and low power consumption. • Extron Everlast Power Supply is covered by a 7-year parts and labor warranty. DTP T USW 333 • Introduction...

  • Page 13: Installation And Operation

    (voir on page 31). Dans Disconnecting the Ground cette configuration, le DTP T USW 333 ne peut transmettre l’audio analogique et le récepteur associé nécessite sa propre source d’alimentation dédiée. DTP T USW 333 • Installation and Operation...

  • Page 14: Connections And Reset Button

    If the ground jumpers are removed (see Disconnecting the Ground on page 31) because of ground potential differences, the DTP T USW 333 cannot extend analog audio. The connected receiver outputs no analog audio. • The analog audio can be assigned to a specific input or set to be always output (see SIS command Assign analog audio input to specific video input or always output audio on page 18).
  • Page 15 If the ground jumpers are removed (see Disconnecting the Ground on page 31) because of ground potential differences, one unit of the pair cannot remotely power the other unit. Each unit requires a local power supply. DTP T USW 333 • Installation and Operation...

  • Page 16: Connector And Cable Details

    4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown ( 5. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length ( DTP T USW 333 • Installation and Operation...
  • Page 17 XTP avec les émetteurs ou les récepteurs DTP. Supported cables The DTP T USW 333 is compatible with shielded twisted pair (STP) and unshielded twisted pair (U/UTP) cable. However, Extron strongly recommends that you use STP cable to achieve best performance.
  • Page 18 • Ne pas étamer les conducteurs avant de les insérer dans le connecteur. Les câbles étamés ne sont pas aussi bien fixés dans le connecteur et pourraient être retirés. DTP T USW 333 • Installation and Operation...
  • Page 19 The IR Tx and Rx line pair and the RS-232 Tx and Rx line pairs must each cross once between their ports and the source or destination. • The length and preparation of exposed wires is important (see the second and third power Caution page 10). DTP T USW 333 • Installation and Operation...

  • Page 20: Front Panel Configuration Port

    CONFIG HDCP AUTO MODE NORMAL DTP T USW 333 Figure 9. DTP T USW 333 Front Panel Controls and Indicators Auto Switch LED Mode button Status LEDs Input 1 through 3 buttons Normal button Input 1 through 3 LEDs Auto(switch) button Auto Switch mode indicator Auto Switch LED —...

  • Page 21: Front Panel Operations

    NOTE: The switcher must be in normal (manual) mode. An input can also be selected using an RS-232 or USB device or a contact closure device (see Remote Control starting on page 15). DTP T USW 333 • Installation and Operation...

  • Page 22: Troubleshooting - If No Image Appears

    3. Ensure that the proper signal format is supplied. 4. Check the cabling and make corrections as necessary. 5. Call the Extron S3 Sales & Technical Support Hotline if necessary (see the Extron for the nearest website Extron office). DTP T USW 333 • Installation and Operation...

  • Page 23: Remote Control

    • Product Configuration Software The DTP T USW 333 switcher can be remotely controlled via its rear panel Remote RS-232 port, its front panel configuration (USB) port, and its rear panel Remote Contact port. Remote control devices can be: •...

  • Page 24: Error Responses

    EDID Values table EDID See the on page 21. User EDID location 66, 67, or 68 Raw EDID data 128 or 256 bytes of hexadecimal data Resolution and rate in plain text Example: 1920x1200•@60Hz DTP T USW 333 • Remote Control...
  • Page 25 Firmware version number to second decimal place ( X1& Verbose mode 0 = Clear/none 2 = Tagged responses for queries 1 = Verbose mode (default) 3 = Verbose mode and tagged for queries DTP T USW 333 • Remote Control...

  • Page 26: Command And Response Table For Sis Commands

    = Input HDCP status = No source detected = Source detected with HDCP = Source detected without HDCP = Output HDCP status = No sink detected = Sink detected with HDCP = Sink detected without HDCP DTP T USW 333 • Remote Control...
  • Page 27 Via contact closure. MUTM KEY: X# = Status = Not detected, authorized = Detected, authorized = Tally pin mode when channel is muted = Always on (default) = Blink when muted = Off when muted DTP T USW 333 • Remote Control...
  • Page 28 EDID Values table on page 21. = User EDID location , or = Raw EDID data 128 or 256 bytes of hexadecimal data 1920x1200 @60.00Hz = Resolution and rate in plain text Example: • DTP T USW 333 • Remote Control...
  • Page 29 1080p @ 60 Hz Output and user locations Source Source Source Source Output User location 1 User location 2 User location 3 * Default for input 1. ^ Default for inputs 2 and 3. DTP T USW 333 • Remote Control...

  • Page 30: Product Configuration Software

    5. Click the appropriate letter to locate the software or firmware. The requested alphabetical page opens. 6. Navigate to the desired software and click Download (see figure 15, ). Follow the on-screen instructions. Figure 15. PCS Software Download DTP T USW 333 • Remote Control...
  • Page 31 Figure 16. Firmware Page with Alphabetic Navigation Bar a. Click the letter D from the alphabetic navigation bar (see figure 16, b. Scroll down the page to find the firmware for the DTP T USW 333. NOTE: Firmware for the DTP T USW 4K 333 is 49-328-50.

  • Page 32: Connecting To Pcs

    2 2 2 2 Figure 17. Device Discovery Panel 2. Select the DTP T USW 333 unit by clicking on it to highlight it in the list ( 3. Click Connect ( ). The Product Configuration Software opens to the Input/Output Configuration window (see figure 18).
  • Page 33 ). The dialog box closes and the reset is complete. Alternatively, click the Close button ( ) to close the dialog box without re-enabling the confirmation dialogs. Figure 22. Software Settings Dialog Box DTP T USW 333 • Remote Control...
  • Page 34 2. Click the Details button (see figure 24, ) for more information. 3. To display details about third-party software packages and associated licensing, click Licenses ( 4. Click the OK button ( ) to close the dialog box. DTP T USW 333 • Remote Control...

  • Page 35: Updating The Firmware

    Upgrading the firmware does not overwrite the current configuration. Update the unit firmware as follows: 1. Download the current firmware to a PC connected to the DTP T USW 333 from the Extron website (see on page 22). Installing the Software/Firmware 2.
  • Page 36 9. From the Device Discovery panel of the Extron Product Configuration Software, select your device. A connection must be re-established with the device before continuing to use the software. 10. Click the Connect button, or double click on the device. The device reconnects to the software. DTP T USW 333 • Remote Control...

  • Page 37: Reference Information

    (voir on page 31). Disconnecting the Ground The 1-inch high, half rack width DTP T USW 333 switching transmitter can be placed on a table, mounted in a rack, or mounted under a desk or table. Tabletop Use Affix the included rubber feet to the bottom of the unit and place it in any convenient location.

  • Page 38: Ul Rack-Mounting Guidelines

    UL Rack-Mounting Guidelines The following Underwriters Laboratories (UL) requirements pertain to the installation of the DTP T USW 333 into a rack. CAUTION: • Elevated operating ambient temperature — If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consider installing the equipment in an environment compatible with the maximum ambient temperature (TMA = +122°F, +50°C) specified by Extron.

  • Page 39: Disconnecting The Ground

    (as suggested by a missing or unstable picture), remove the ground connection between the units as follows: NOTE: Once the ground jumpers are removed, the DTP T USW 333 cannot extend analog audio or remote power. No analog audio is output and the paired receiver requires its own dedicated power supply.
  • Page 40 « Classe 2 » ou « LPS » et normée 12 Vcc, 1,0 A minimum. Utilisez toujours une source d’alimentation fournie ou recommandée par Extron. L’utilisation d’une source d’alimentation non autorisée annule toute conformité réglementaire et peut endommager la source d’alimentation ainsi que le produit final. DTP T USW 333 • Reference Information...
  • Page 41 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
