Chapter 1: KC724 IBERT Getting Started Guide
3.
X-Ref Target - Figure 1-10
Open Cable Button
4.
X-Ref Target - Figure 1-11

Starting the SuperClock-2 Module

The IBERT demonstration designs use an integrated ChipScope Pro software VIO core to
control the clocks on the SuperClock-2 module. The SuperClock-2 module features two
clock-source components: 1) An always-on Si570 crystal oscillator and, 2) an Si5368
jitter-attenuating clock multiplier. Outputs from either device can be used to drive the
transceiver reference clocks. To start the SuperClock-2 Module:
14

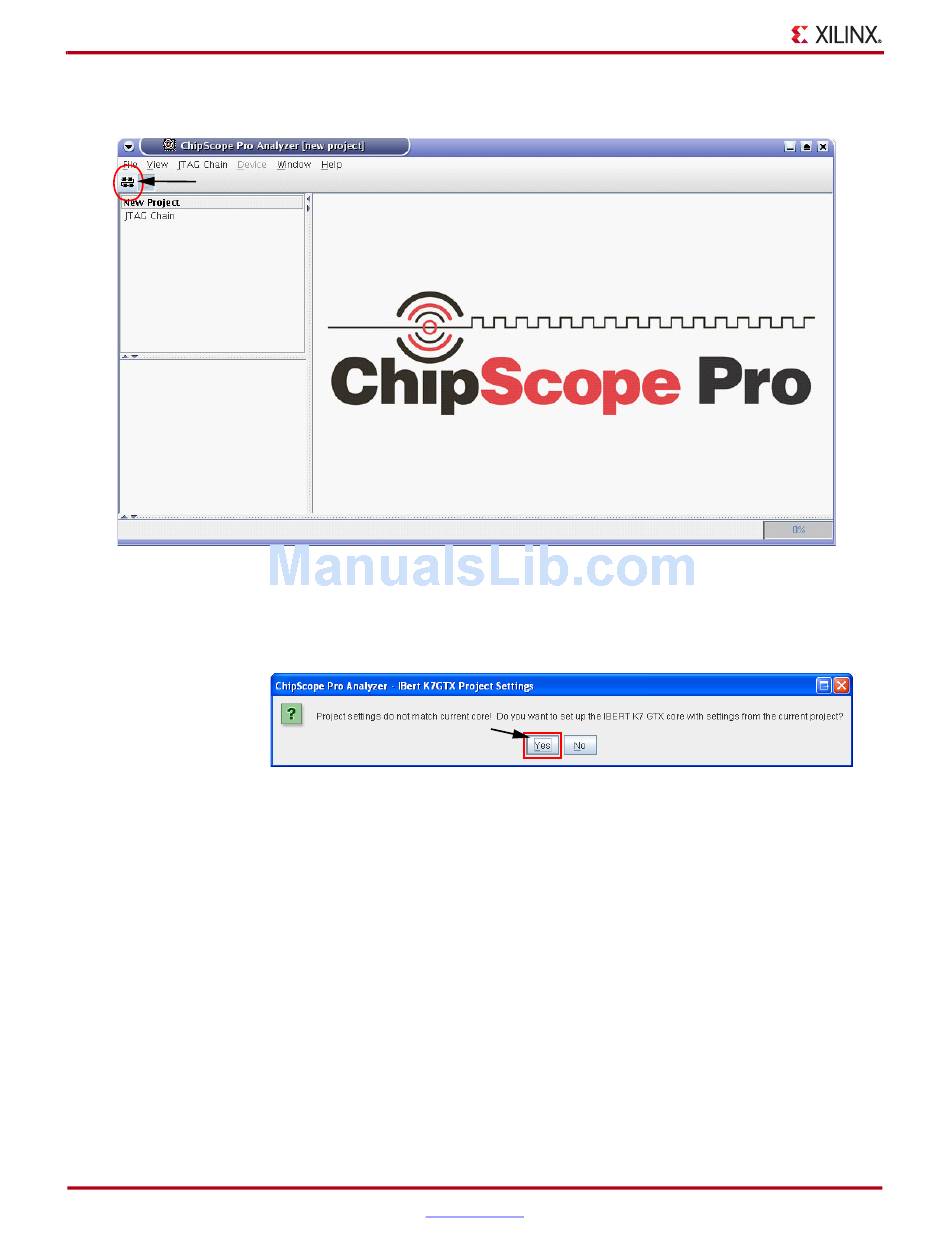

Click the Open Cable button
Figure 1-10: Open Cable Button
When the dialog appears asking to set up the core with the settings from the current
project, click Yes (Figure
Figure 1-11: IBERT K7GTX Project Settings
www.xilinx.com
(Figure 1-10).
1-11).
UG930_c1_10_101112
ug930_c1_11_101112
KC724 IBERT Getting Started Guide
UG930 (v1.0) October 23, 2012
