IPL T PCS4 • Web Page-Based Setup and Control
CAMBOARD Electronics
b.

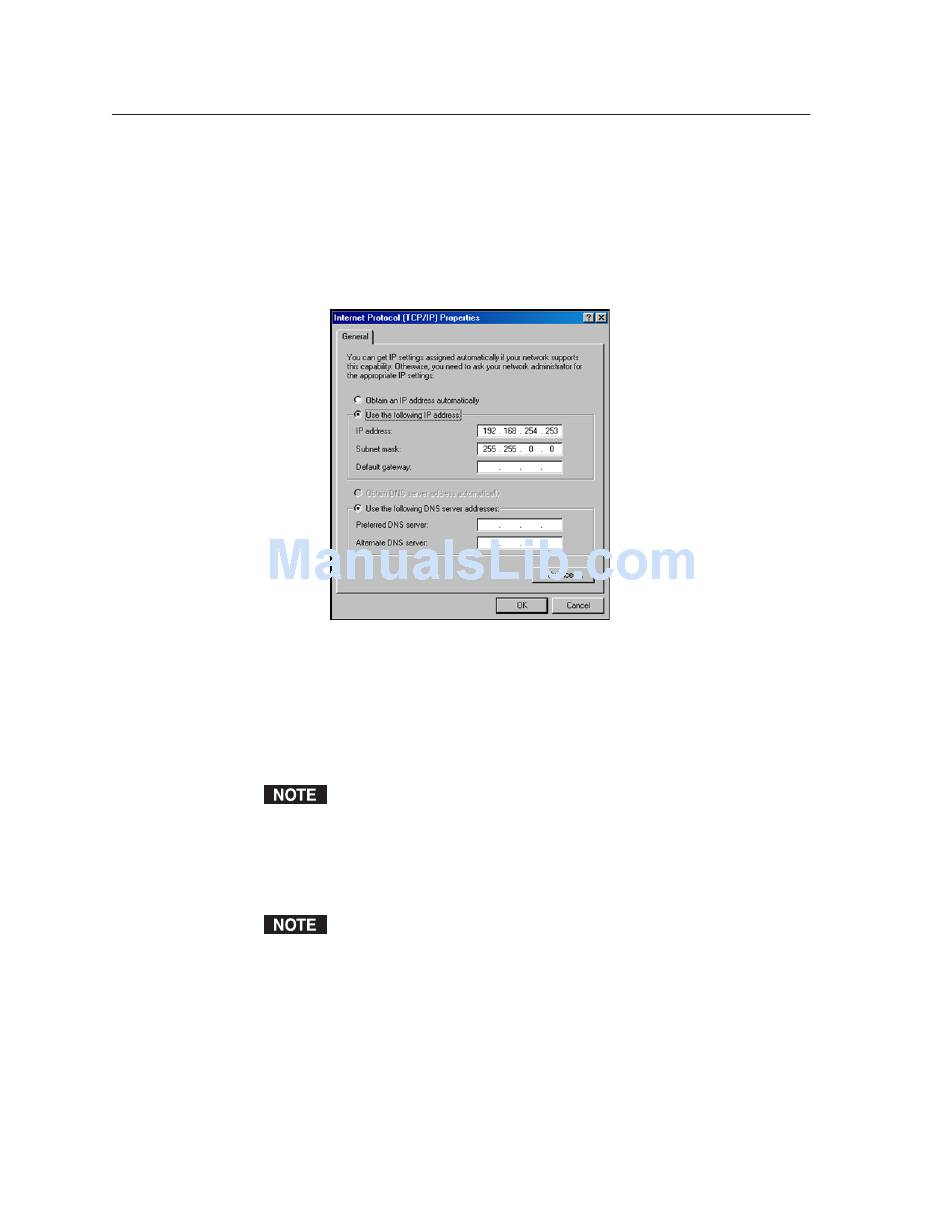

Enter the following values as shown below:
IP address: 192.168.254.253
Subnet mask: 255.255.0.0
Default gateway: Blank or 0.0.0.0
(The temporary IP address differs from the PSC4's factory default by
one digit.)
c.
Click OK to save the changes, and exit the network setup.
d.
Reboot the PC, if required, for the changes to become effective.
Plug one end of a Category 5 network/Ethernet crossover cable into the
Ethernet (LAN) connector on the PCS4 rear panel. (Refer to chapter 2,
Installation and Rear Panel, for information on the RJ-45 LAN connector
wiring.) Plug the other end of the Ethernet cable into the Ethernet port on
the PC.
If you are using a network hub or switch between the PC and the PCS4, use a
straight-through Category 5 cable instead of a crossover cable.
Set up the PCS4's IP address. See Configuring the IPL T PCS4 using a Web
browser, in the next section, for the procedure.
Once the PCS4 has been reconfigured, an Ethernet (intranet or Internet)
connection can subsequently be used to configure or control it.
Both your computer and the PCS4 must be connected to the same LAN.
Alternatively, you may use a crossover Ethernet cable to connect the
interface directly to your computer's Ethernet card.
After setting the PCS4's IP address, restore the PC's previous IP
configuration by following steps 1, 2, 3, and 5 but using the PC's original IP
address settings that you wrote down in step 4.
