① Apply some molybdenum disulfide paste on the intake and exhaust valve stems evenly, and
assemble the intake and exhaust valves into the cylinder head, ensuring that the intake and
exhaust valves slide in the guide, without blockage;
② Assemble the lower seat of intake valve spring. Put the protective sleeves in the valve guides.
Assemble the valve stem seal.
Notice: Before assembling, must check whether the internal spring in the sealing bush of the
valve stem is kept intact.
③ Assemble the valve inner and outer springs.
④ Assemble the upper retainer for the valve spring. Press the valve spring in place. Assemble the
valve collet.
⑤ After assembly of the valve collets, tap the intake and exhaust valves using a rubber hammer so
that the valve collets come in close contact with the upper retainers for the valve springs. If the
valve collets fail to come in contact with the upper retainers for the valve springs, identify then
disassemble the causes.

4.5.6 Disassembly, Inspection, Repair, and Assembly of Intermediate Gear

4.5.6.1 Exploded View for Assembly of Intermediate Gear
4.5.6.2 Intermediate Gear DisassemblyProcedures
① Observe the markings of mounting bolts and determine whether the bolts can rotate.
② Disassemble the four M10 hexagon bolts used for fixing the intermediate gear. Disassemble the
washer.

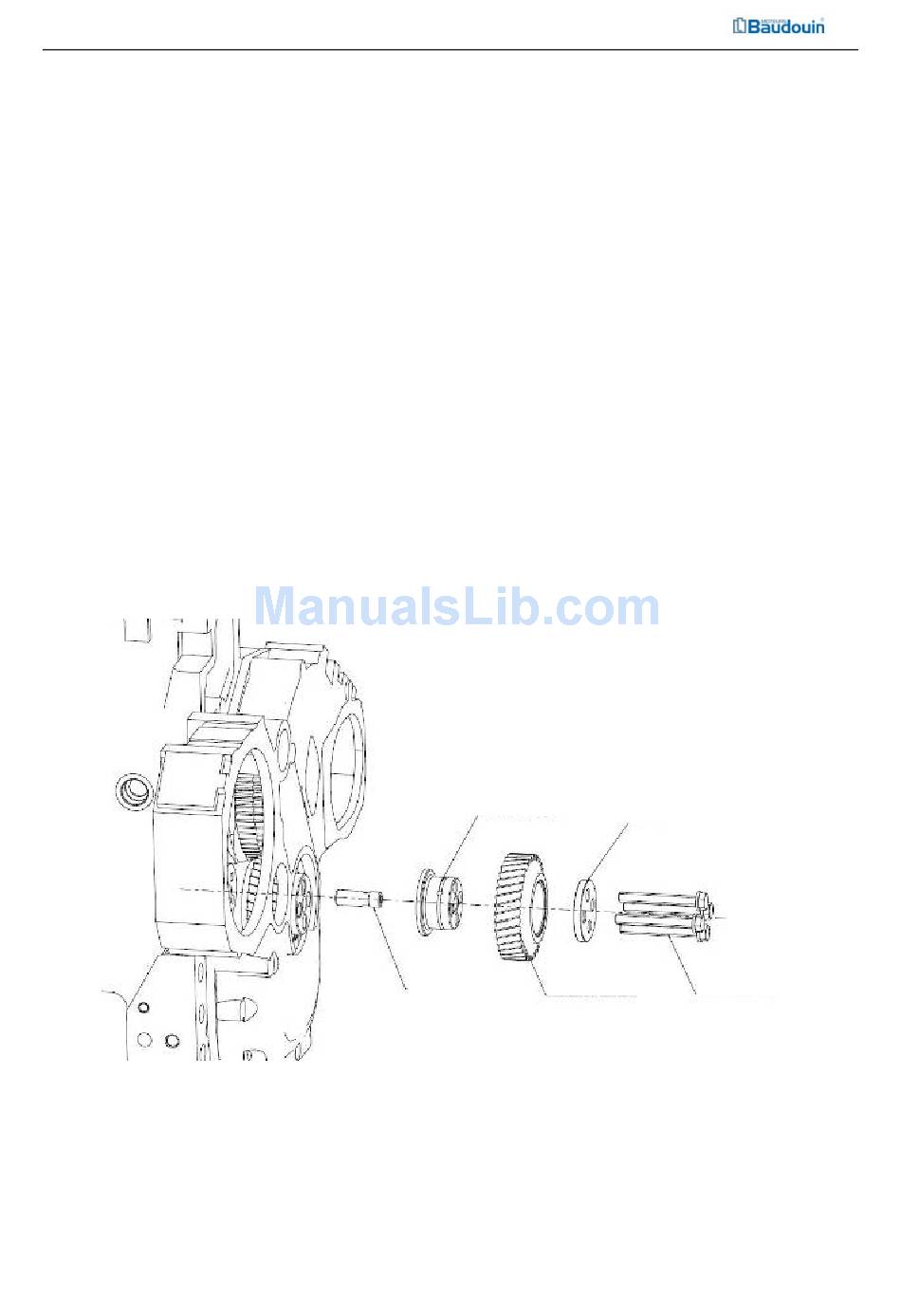

Figure 4-43 Exploded View for Assembly of Intermediate Gear
Intermediate gear shaft
Shaft Intermediate gear part
77
Fender
Hexagon bolt
