a t a F l o w M o n i t o r
a t a F l o w M o n i t o r

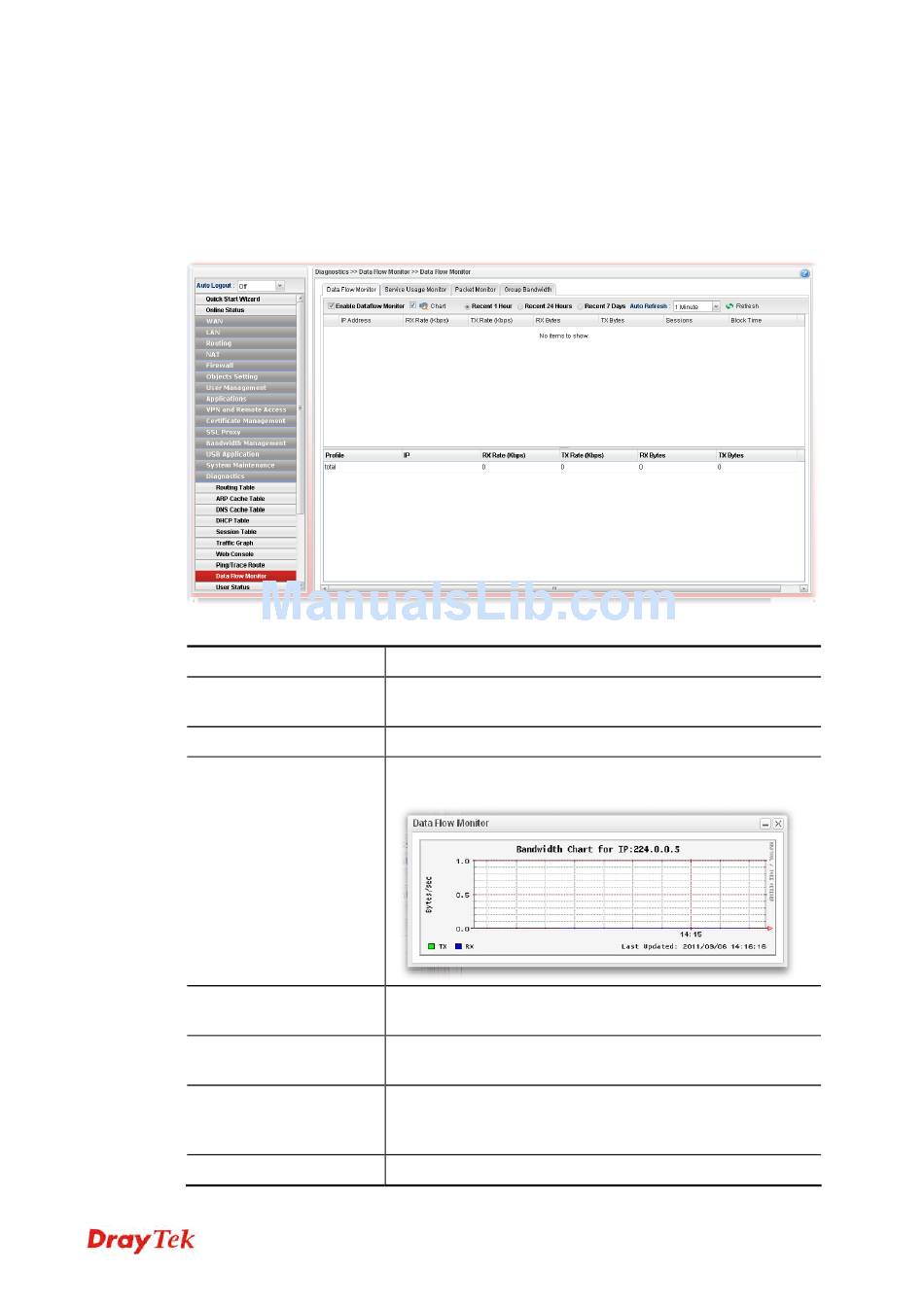

This page displays the running procedure (such as IP address, session number, transmission
rate, receiving rate, and duration of the time block) by list or by chart for the IP address
monitored and refreshes the data in an interval of several seconds.
4 . 1 5 . 9 . 1 D a t a F l o w M
4 . 1 5 . 9 . 1 D a t a F l o w M
Each item will be explained as follows:
Item
Enable Dataflow
Monitor
Refresh
Chart
Block
UnBlock
Recent 1 Hour/ Recent
24 Hours / Recent 7
Days
Auto Refresh
o n i t o r
o n i t o r
Description
Check this box to enable dataflow monitor performed by the
router.
Click it to renew the web page.
Click this button to illustrate data chart. Refer to the
following figure as an example.
Prevent the specified PC accessing into Internet within 5
minutes.
Allow the specified PC accessing into Internet within 5
minutes.
Display the records with 1 hour/24 hours/7 days recently.
Specify the interval of refresh time to obtain the latest
452 Vigor3900 Series User's Guide
