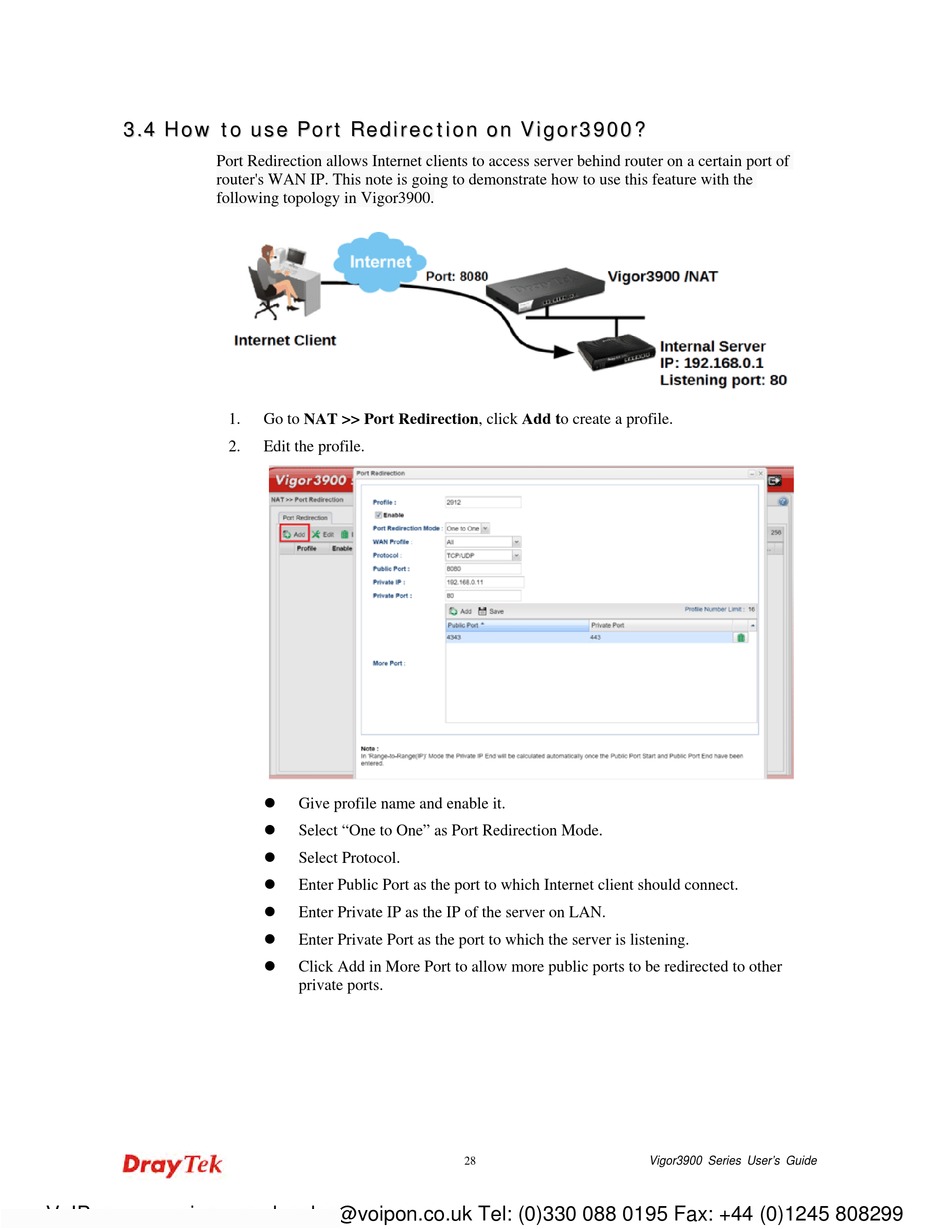

Port Redirection allows Internet clients to access server behind router on a certain port of
router's WAN IP. This note is going to demonstrate how to use this feature with the
following topology in Vigor3900.
1. Go to NAT >> Port Redirection, click Add to create a profile.
2. Edit the profile.

Give profile name and enable it.

Select "One to One" as Port Redirection Mode.

Select Protocol.

Enter Public Port as the port to which Internet client should connect.

Enter Private IP as the IP of the server on LAN.

Enter Private Port as the port to which the server is listening.

Click Add in More Port to allow more public ports to be redirected to other
private ports.
