Draytek Vigor3900 User Manual
  1. Manuals
  2. Brands
  3. Draytek Manuals
  4. Security System
  5. Vigor3900 Series
  6. User manual

Draytek Vigor3900 User Manual

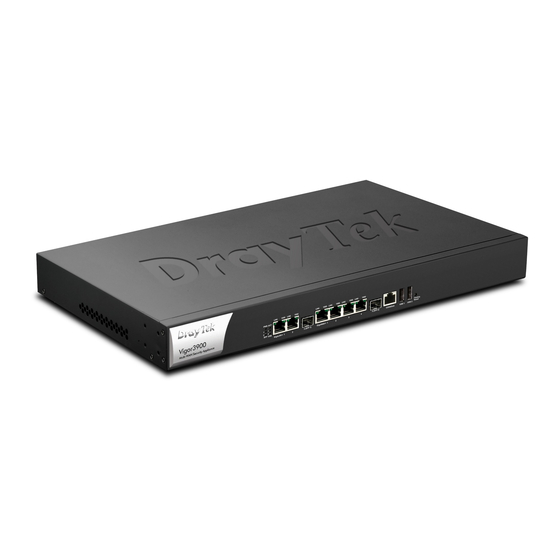

Vigor3900 series multi-wan security appliance
Hide thumbs Also See for Vigor3900:
1
2
3
4
Table Of Contents
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
Table of Contents

Advertisement

Quick Links

Download this manual
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vigor3900 and is the answer not in the manual?

Questions and answers

Related Manuals for Draytek Vigor3900

Summary of Contents for Draytek Vigor3900

  • Page 1 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 2 Vigor3900 Multi-WAN Security Appliance User’s Guide Version: 2.5 Firmware Version: V1.3.0 (For future update, please visit DrayTek website) Date: May 23, 2017 Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 3 Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be regularly Updates upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.

  • Page 4: Regulatory Information

    No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu County, Taiwan Product: Vigor3900 DrayTek Corp. declares that Vigor3900 of routers are in compliance with the following essential requirements and other relevant provisions of EC, Directive 2004/108/EC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class A and EN55024/Class A.

  • Page 5: Table Of Contents

    3.4 How to use Port Redirection on Vigor3900? ................28 3.5 How to Configure OSPF?......................30 3.6 How to Configure LAN to LAN IPSec Tunnel between Vigor3900 and Other Router (Main Mode) ................................36 3.7 How to run RDP service in the browser via logging in 3900's HTTPS Server?......39 3.8 How to Configure VPN Load Balance between Vigor3900 and Other Router......
  • Page 6 4.8.1 Dynamic DNS ........................301 4.8.2 DNS Security ........................306 4.8.3 GVRP ..........................308 4.8.4 IGMP Proxy .........................309 4.8.5 UPnP ..........................310 4.8.6 High Availability ........................311 4.8.7 Wake on LAN........................319 Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 7 4.15.4 DHCP Table........................446 4.15.5 Session Table ........................448 4.15.6 Traffic Graph........................449 4.15.7 Web Console ........................451 4.15.8 Ping/Trace Route.......................451 4.15.9 Data Flow Monitor......................452 4.15.10 User Status ........................455 Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 8 5.3 Pinging the Router from Your Computer .................. 505 5.4 Checking If the ISP Settings are OK or Not ................506 5.5 Backing to Factory Default Setting If Necessary..............507 5.6 Contacting DrayTek ........................508 viii Vigor3900 Series User’s Guide...

  • Page 9: Chapter 1: Introduction

    For specific user guides suitable for your region or product, please contact local distributor. The Vigor3900 Series integrates a rich suite of functions, including NAT, firewall, VPN, load balance, and bandwidth management capability. These products are very suitable for providing multi-integrated solutions to SME markets.

  • Page 10: Led Indicators And Connectors

    1000 It means that a normal 1000Mbps connection is through its corresponding port. It means that a normal 10/100Mbps connection is through its corresponding port. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 11 5 seconds. When you see the ACT LED begins to blink, release the button. Then the router will restart with the factory default configuration. Connecter for a power cord. ON/OFF - Power switch. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 12: Hardware Installation

    Connect a server/modem/router (depends on your requirement) to any WAN port of Vigor3900 with Ethernet cable (RJ-45). The WAN1 (to WAN4) LED will light up. Connect the power cord to Vigor3900’s power port on the rear panel, and the other side into a wall outlet.

  • Page 13: Rack-Mounted Installation

    Attach the brackets to the chassis of a rack. The second bracket attaches the other side of the chassis. After the bracket installation, the Vigor3900 Series chassis can be installed in a rack by using four screws for each side of the rack.
  • Page 14 This page is left blank. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 15: Chapter 2: Basic Setup

    Please type default values on the window for the first time accessing. The default value for user name is admin and the password is admin. Next, click Login. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 16 Apply to continue. Now, the password has been changed. Next time, use the new password to access the Web User Interface for this router. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 17: Quick Start Wizard

    Use the drop down list to choose one WAN profile. IPv4 Protocol Use the drop down list to choose a connection mode for such WAN profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 18 DHCP server on the Internet. If you choose DHCP mode, the DHCP server of your ISP will assign a dynamic IP address for Vigor3900 automatically. It is not necessary for you to assign any setting. (Host Name and Domain Name are required for some ISPs).

  • Page 19: Step 2 - Configuring The Selected Protocol

    Type a public gateway address for such WAN profile. Gateway IP Address - click it to remove the created IP address if you are not satisfied with it. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 20 Click it to finish the configuration. Cancel Click it to discard the settings configured in this page. When you finished the above settings, please click Finish. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 21 DHCP allows a user to obtain an IP address automatically from a DHCP server on the Internet. If you choose DHCP mode, the DHCP server of your ISP will assign a dynamic IP address for Vigor3900 automatically. It is not necessary for you to assign any setting. (Host Name is required for some ISPs).
  • Page 22 Click it to finish the configuration. Cancel Click it to discard the settings configured in this page. When you finished the above settings, please click Finish. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 23 Fixed IP field. Please contact your ISP before you want to use this function. Static – specify the IP address. DHCP - obtain the IP address automatically. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 24 Click it to return to previous setting page. Finish Click it to finish the configuration. Click it to discard the settings configured in this page. Cancel Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 25 When you finished the above settings, please click Finish. Later, you can surf the Internet at any time. When the following screen appears, it means you have finished the Quick Start Wizard configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 26: Register Vigor Router

    Please follow the steps below to register the router. Before using such function, please register your router online first. Log into the Web User Interface of Vigor3900 and click Product Registration. A Login page will be shown on the screen. Please type the account and password that you created previously.
  • Page 27 (it appears when you click on the box of Registration Date). After adding the basic information for the router, please click Submit. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 28 Now, your router information has been added to the database. Click OK to leave this web page and return to My Information web page. Take a look at the page of My Information, the new added Vigor3900 is listed under Your Device List.

  • Page 29: Chapter 3: Application And Tutorial

    LAN client. This note demonstrates how to set up Bandwidth Limit with Vigor3900. Go to Bandwidth Management >> Bandwidth Limit and click “Add” to start the configuration. Then set up the details for the new rule. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 30 Go to source target and click “+” icon to set the rule for particular IP address.  Click Apply to save. Bandwidth Limit can also be used with a time schedule to restrict LAN clients only at a certain time. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 31 Data Flow Monitor can be used to check the status of Bandwidth Limit. Go to Diagnostics >> Data Flow Monitor and enable the monitor then we can check the transmission rate displayed on the screen. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 32: How To Use Session Limit On Vigor3900

    P2P applications. We can also create customized Session Limit rule for each LAN client. This note demonstrates how to set up Session Limit with Vigor3900. Go to Bandwidth Management >> Session Limit and click “Add” to create a new rule.
  • Page 33 Click Apply to save. Go to Diagnostics >> Data Flow Monitor and enable the monitor then we can check how many sessions a specific LAN client use. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 34: How To Assign Other Ip As Gateway Ip For Lan Dhcp Clients

    While Vigor3900 acts as DHCP Server, it will assign its LAN IP as the Gateway IP to DHCP clients by default. Then DHCP clients will use Vigor3900 as Default Gateway for accessing the Internet. However, in some cases, network administrator would like Vigor3900 to be the DHCP server but use another LAN router as Internet Gateway for LAN hosts.
  • Page 35 PC to be able to access the remote VPN network connected through Vigor3900? It requires to specify Vigor3900's IP as the gateway to remote VPN Network, there are two ways to do this: Add Static Route on the PC by command “ip route add 172.16.2.0 mask...

  • Page 36: How To Use Port Redirection On Vigor3900

    Port Redirection allows Internet clients to access server behind router on a certain port of router's WAN IP. This note is going to demonstrate how to use this feature with the following topology in Vigor3900. Go to NAT >> Port Redirection, click Add to create a profile.
  • Page 37 Now, we can access the server behind NAT(Vigor3900) from Vigor3900's WAN IP with the specified port. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 38: How To Configure Ospf

    It is suitable for large network and complicated data exchange. Both Vigor2960 and Vigor3900 support up to OSPF version 2(only for IPv4). The Autonomous System (AS) used in OSPF indicates the largest entity and can be divided into several areas.
  • Page 39 2. Next, continue to create a LAN (192.168.3.1/24) profile named lan2 with the settings shown below. 3. Open LAN >> Static Route and click the Inter-LAN Route tab to enable this profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 40 1. Open LAN >> General Setup to create a LAN (192.168.2.1/24) profile named lan1 with the settings shown below. 2. Next, continue to create a LAN (192.168.3.2/24) profile named lan2 with the settings shown below. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 41 Profiles lan2 area setting as 11 and lan1 area as 11. (As shown in the topology diagram.) 1. Open LAN >> General Setup to create a LAN (192.168.4.1/24) profile named lan1 with the settings shown below. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 42 4. Open LAN >> OSPF Configuration to enable this profile. Click Add to make the LAN Profiles lan2 area setting as 11 and lan1 area as 11. (As shown in the topology diagram.) Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 43 5. After setting, check the routing information (marked with red line) which is created by OSPF. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 44: How To Configure Lan To Lan Ipsec Tunnel Between Vigor3900 And Other Router (Main Mode)

    Here provides an example about LAN to LAN IPSec tunnel established between Vigor3900 and Vigor2710. Access into the Web User Interface of Vigor3900 and open VPN and Remote Access >> LAN to LAN Profiles to add a new VPN configuration.
  • Page 45 In Vigor2710, it is necessary to build two VPN connections (for two WANs) to connect with Vigor3900. Please open the Web User Interface of Vigor2710 and open VPN and Remote Access >> LAN to LAN.  First, please type the name of such VPN connection in the field of Profile Name (e.g., 3900).
  • Page 46 For the role of Vigor2710 is dialing-out, please skip Dial-In setting. Type the Remote Network IP and Remote Network Mask of Vigor3900 to complete configuration. Please check if the VPN connection is built successfully in both devices respectively. For Vigor3900, open VPN and Remote Access>>IPSec>>Status for viewing the result.

  • Page 47: How To Run Rdp Service In The Browser Via Logging In 3900'S Https Server

    Microsoft Terminal Services. An easy way is provided to establish connection between the router and the RDP Server via any browser. Open the Web User Interface of Vigor3900. Enable the HTTPS service from System Maintenance >> Access Control by clicking Enable for HTTPS Allow and type 443 as the value of HTTPS Port.
  • Page 48 Open User Management >> User Profile to create a new profile named “7788”. Set the Password as 7788 and choose the profile of Win7 as SSL Application (RDP). Click Apply. Logout Vigor3900. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 49 Login Vigor3900 HTTPS Server with 7788 for both Username and Password. A screen like the following figure will appear. Simply click the SSL Application link. In the following screen, click Connect for connecting to Win7, the RDP server. Vigor3900 Series User’s Guide...
  • Page 50 After that, you can access into Windows 7 via a browser. Note the message below the window. In which, TLS means Transport Layer Security. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 51: Troubleshooting

    If you have installed Java Runtime Environment edition 6 but still cannot establish the connection, please make sure you have disabled “Use TLS 1.0” in the Java Control Panel as figure shown below. Then, try to connect again. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 52: How To Configure Vpn Load Balance Between Vigor3900 And Other Router

    Vigor3900. We will build VPN connection with load balance between Vigor3900 and two WANs of Vigor2950 respectively. Access into the Web User Interface of Vigor3900 and open VPN and Remote Access >> VPN Profiles to add new VPN profiles. Click Add.
  • Page 53 Create a profile for WAN 1 (named 2950WAN1). Type the settings as shown below: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 54 Click Apply to save the settings and exit the dialog. Create a profile for WAN 2 (named 2950WAN2). Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 55 The following window will pop up. Give a name for the profile. Click the Load Balance tab. Select the IPSec GRE profiles (e.g., 2950WAN1) set for Vigor2950 then click Apply. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 56 10. Enable this profile and input the following settings then click Apply. Type the local network IP address and Mask of Vigor3900 as Source IP Address and Source Mask; type the network IP and Mask of Vigor2950 as Destination IP Address &...
  • Page 57 In Vigor2950, it is necessary to build two VPN connections (for two WANs) to connect with Vigor3900. Please open the Web User Interface of Vigor2950 and open VPN and Remote Access >> LAN to LAN.  First, please type the name of such VPN connection in the field of Profile Name (e.g., 3900WAN1).
  • Page 58  Please type the network IP address and subnet of Vigor3900 in the field of Remote Network IP and Remote Network Mask. Type the network IP address and subnet of Vigor2950 in the field of Local Network IP and Local Network Mask.
  • Page 59 VPN profiles in Member 1 and Member 2 respectively. Then, choose Load Balance as the Active Mode. Click Add. After finished the settings for Vigor3900 and Vigor2950, please check if the VPN connection is built successfully in both devices respectively. Take Vigor3900 for an example, open VPN and Remote Access>>...
  • Page 60 As to Vigor2950, please open VPN and Remote Access>>Connection Management to confirm the result. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 61: How To Setup 50 Wans On Vigor3900

    Vigor3900 has 5 physical WANs; however, it can be extended to 50 WANs at most by using VLAN Tagging technology. Below will show how to achieve 50 WANs setup by one Vigor3900 and two VigorSwitch2260s. Refer to the following application illustration: Change mode from Basic to Advance via WAN>>General Setup page.
  • Page 62 Click OK. Vigor3900 will ask you to re-login. Delete default wan profiles for wan3, wan4 and wan5 by selecting the wan profile then click Delete. Click Add to add new WANs. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 63 (112~ 134 and 211~ 234) by repeating step 4 ~ step 5. Setup VLAN mode as Tag VLAN. Click Add to create a New VLAN GROUP via VLAN>>TAG-based Group page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 64 Port 26 must be selected as the member for each group, for it is the channel for any packets coming from Vigor3900. As to Untag, when you check Port 2 and Port 26, you have to untag Port 2; when you check Port 3 and Port 26, you have to untag Port 3;...
  • Page 65  While the switch receives packets from Port 1, it will add VLAN Tag 111 to the packets Then Vigor3900 wan1_1 will receive the packets. After finishing the configuration for one VigorSwitch, please set for another VigorSwitch with the same procedure. The file names shall be wan2_1~ wan2_24 and the VLAN ID shall be set as 211~ 234.

  • Page 66: Cvm Application - How To Manage The Cpe (Router) Through Vigor3900

    To manage CPEs through Vigor3900, you have to set URL on CPE first and set username and password for Vigor3900. For this section, we use Vigor2830 series as the example. The firmware upgrade for the CPE can be done through Vigor2830 series.
  • Page 67 Remember the values configured in this page. Click Apply to save the settings. To manage CPEs through Vigor3900, you have to set ACS URL on CPE first and set username and password for Vigor3900. Connect one CPE (e.g., Vigor2830 series) and get ready to access into the web user interface of the CPE.
  • Page 68 Login the web user interface of the CPE. Open System Maintenance>>Management Setup. Check Allow management from the Internet to set management access control. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 69 Click Specify an IP address. Type correct WAN IP address, subnet mask and gateway IP address for your CPE. Then click OK. Note: Reboot the CPE device and re-log into Vigor3900. CPE which has registered to Vigor3900 will be captured and displayed on the page of Central VPN Management>>CPE Management.
  • Page 70 Return to the web user interface of Vigor3900. Open Central VPN Management>>CPE Management. Now there is one CPE managed (Vigor2830) by Vigor3900 on the page of CPE Maintenance. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 71: Cvm Application - How To Build The Vpn Between Remote Devices And Vigor3900

    When a remote device is managed by Vigor3900 series, it is easy to build VPN between these two devices. Access into the web user interface of Vigor3900 series. Open Central VPN Management>>CPE Management. The icons displayed on the screen means the remote devices are ready for building VPN with Vigor3900.
  • Page 72 A confirmation dialog will appear. Click OK and wait for a moment. If VPN is built successfully, related information will be displayed on Connected Devices. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 73 VPN and Remote Access>>LAN to LAN of the remote device for viewing the detailed information. Note: The profile name is created automatically by the system. Do not modify any value in such page to avoid VPN error. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 74: Cvm Application - How To Upgrade Cpe Firmware Through Vigor3900

    Suppose the newest firmware file is located on your PC. You can upload it from your PC to Vigor3900. Log into the web user interface of Vigor3900. Open System Maintenance>>Access Control. Check Enable for Web Allow and type the value for Web Port. Then click Apply to save the settings.
  • Page 75 In the File Explorer dialog, click Upload. In the Upload dialog, click the Browse.. button to find out the firmware (e.g., 2830_0508 in this case) you want to upload from PC to Vigor3900. Then, click Upload. Vigor3900 Series User’s Guide...
  • Page 76 When the file is uploaded successfully, later you will find the one in the File Explorer dialog. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 77 To create a new firmware upgrade profile, one CPE (e.g., 2830 in this case) must be managed by Vigor3900 at least. Otherwise, the profile cannot be created successfully. Open Central VPN Management>>CPE Management. Click CPE Maintenance. In the Maintenance area, click Add.
  • Page 78 And, in the web user interface of client’s CPE, the system will show you that firmware upgrade is on going. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 79 CPE has completed. Open Central VPN Management>>CPE Management. In the Managed Devices Status area, choose the router (representing Vigor2830) and click Detail. Check the software version field. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 80: How To Use High Availability For Vigor Routers

    The High Availability (HA) feature in Vigor3900 can ensure the business continuity for your organization. IT staff can use HA as a simple solution for the disaster recovery. Vigor3900 utilizes the Common Address Redundancy Protocol (CARP) to avoid the system crashing which could stop the normal operation and then cause considerable lost of the entire organization.
  • Page 81 1. Access into the web user interface of Vigor3900. 2. Open Applications >>High Availability. 3. In the tab of High Availability Global Setup, choose Hot-Standby as Redundant Method; choose Primary as Config Synchronization Rule; type draytek as Authentication Key; choose Automatic as Advance Preemption Mode. Click Apply to save the settings.
  • Page 82 3. In the tab of High Availability Global Setup, choose Hot-Standby as Redundant Method; choose Secondary as Config Synchronization Rule; type the lan1 IP address configured in router A; type draytek as Authentication Key; choose Automatic as Advance Preemption Mode. Click Apply to save the settings.
  • Page 83 Router B (defined as Slave device) will be up and take over all the jobs that Router A performs. Later, when Router A is powered on again, all the jobs will return to Router Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 84: How To Configure Dns Inbound Load Balance On Vigor 3900

    Vigor3900 can offer the mapped IP address to respond the DNS query coming from the remote end through the designate domain to reduce the loading of the network traffic. WAN1 IP Address: 1.1.1.1 WAN2 IP Address: 2.2.2.2 Inbound Load Balance allows Vigor3900 acting as a DNS Server to separate the traffic for each WAN interface according to the DNS query time.
  • Page 85 Click the Detail tab and locate Additional A Record. Type “www” as the name of the Host, and type “192.168.1.10” as the IP Address. Then click Apply to save the settings. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 86 Third DNS query > www.yourdomain.com Server: [google-public-dns-a.google.com] Address: 8.8.8.8 Name: www.yourdomain.com Address: 2.2.2.2 Note: It is recommended to clear cache before executing “nslookup” for DNS query. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 87: Chapter 4: Advanced Web Configuration

    When a router begins to connect to your ISP, a serial of discovery process will occur to ask for a connection. Then a session will be created. Your user ID and password is authenticated Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 88: General Setup

    Note: Some menu items (e.g., Bridge VLAN) are available only under Advance Mode. Web Page in Basic Mode Web Page in Advance Mode Each item will be explained as follows: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 89 Otherwise, Disable will be shown instead. VLAN ID Display the VLAN ID of the profile. Priority(802.1p) Display the level of the priority for such profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 90 Open WAN>>General Setup. Click the Add button to open the following dialog. Different protocol type selected will bring up different configuration web page. Available parameters are listed as follows: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 91 There are four connection modes for you to specify for IPv6 protocol type. Each mode will bring up different web page. Enable Schedule Enable – Click it to enable the function of reconnecting the Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 92 Different IPv4 and IPv6 protocol types specified will bring up different configuration web page.  If you choose Static as IPv4 protocol type, click the Static Tab to open the following page: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 93 Add – Click this button to display the IP address field for adding a new IP address. Type the IP address on the tiny boxes one by one. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 94 WAN interface will be regarded as breaking down. Click it to save the configuration and exit the dialog. Apply Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 95 It means Max Transmit Unit for packet. The default setting is 1500. Connection Select a detecting mode for this WAN interface. There are three ways ARP, PING and HTTP supported in Vigor Detection Mode Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 96 Add – click this button to have a field for adding a new IP address. Save – click this button to save the setting. – click the icon to remove the selected entry. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 97 Select a detecting mode for this WAN interface. There are Detection Mode two ways PING and HTTP supported in Vigor router for you to choose to send the request out. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 98 IP address. Type the IP address on the tiny boxes one by one. Save – After finished the IP address configuration, click Save to save the setting onto the router. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 99 In this case, you can fill in this IP address in the Fixed IP field. Please contact your ISP before you want to use this function. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 100 DHCP (according to the PPTP Over Protocol setting) to modify the Static/DHCP configuration for such profile. Click it to save the configuration and exit the dialog. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 101 IPv6 DNS Server Type your IPv6 primary DNS Server address. Address Add – click this button to have a field for adding a new IP Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 102 – click the icon to remove the selected entry. Apply Click it to save the configuration and exit the dialog. Cancel Click it to exit the dialog without saving the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 103 It is not necessary for you to configure any web page. Enter all the settings and click Apply. The new added profile will be shown as below. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 104 Description Display a brief explanation for such profile. Port Display the physical WAN interface for such profile. Protocol Display the protocol selected by the profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 105 Choose the connection mode for USB WAN. Protocol Connection If you choose PING/HTTP as Connection Detection Mode, Detection Host you have to specify the detection host address in this field. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 106 Click it to exit the dialog without saving anything. After finished the settings above, click the 3G/4G PPP or 4G DHCP tab (based on the Protocol specified) to display the following page: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 107 If you choose 4G/3G/2G as network mode, the router will choose a suitable one according to the actual wireless signal automatically. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 108 Cancel Click it to exit the dialog without saving anything. Enter all the settings and click Apply. The modified profile will be shown as below. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 109 Display the total number of the profiles to be created. Profile Display the profile name. WAN Profile Display the WAN profile selected. LAN VLAN/Member Display VLAN ID number of the LAN port selected. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 110 Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. The modified profile will be shown as below. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 111: Inbound Load Balance

    Vigor3900 can offer the mapped IP address to respond the DNS query coming from the remote end through the designate domain to reduce the loading of the network traffic. Click WAN>>Inbound Load Balance. Each item will be explained as follows:...
  • Page 112 Available parameters are listed as follows: Item Description Status Check this box to enable such profile. Domain Name Type an available domain name to serve the inbound load Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 113 (for Alias From WAN Interface) or type an IP address manually (for Alias From Manual Input). Weight –Use the drop down list to choose the one you want. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 114 MX Record This is used to specify the mail server with IP address. Add –Click it to add a new server with specified name and IP Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 115 A sub-domain setting page will appear for you to add new profile. Note that the configuration is similar to the way stated on the above steps. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 116: Switch

    It depends on the setting configured in this page for VLAN ID configured in WAN >>General Setup>>Profile relates to the VLAN ID setting configured here. This page simply displays current status of 802.1Q VALN setting profiles. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 117 Check the box to enable the Mirror function for the switch. Mirroring Port Select a port for the administrator to use for viewing traffic sent from mirrored ports. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 118 Select a port to make the packets passing through it monitored by the administrator. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 119 Flow Control – The default setting is Disable. If Enabled is clicked, Vigor router will drop the packet if too much to handle. 802.3az – It is a function of energy-efficient Ethernet. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 120 It can detect the network traffic automatically to adjust the power output and let Vigor3900 save the energy during the period of low traffic. Click Enable to activate the power/energy saving function if required. Apply – Click it to save and exit the dialog.

  • Page 121: Lan

    VLAN ID, specify MAC address, and choose protocol type for such profile. Each item will be explained as follows: Item Description Add a new LAN profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 122 Display the status (Enable/Disable) of the DHCP server. IPv6 Protocol Display the IPv6 protocol type for the LAN profile. Open LAN>>General Setup and click the General Setup tab. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 123 Disable – Click it to type the MAC address manually for such profile. MAC Address If Default MAC address is disabled, please specify a MAC Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 124 DHCP DNS Set the private IP address for DNS server. If this field is blank, users on LAN will treat Vigor3900 as the DNS server. Add – Click it to add a new IP address for DNS server. Save – Click it to save the setting.
  • Page 125 Set a lease time for the DHCP server. The time unit is minute. Time DHCP Routers In general, this box will be blank. It means Vigor3900 will be regarded as the gateway for the user. However, if you want to use other gateway, please assign the IP address in this field.
  • Page 126 Click it to exit the dialog without saving anything. When you finish the above settings, please click Apply to save the configuration and exit the dialog. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 127 Open LAN>>General Setup and click the DHCP Relay tab. Choose one of the LAN profiles by clicking on it and click the Edit button to open the following dialog. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 128 Click it to exit the dialog without saving anything. When you finish the above settings, please click Apply to save the configuration and exit the dialog. The LAN profile has been edited. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 129 To make the users in different LAN communicating with each other, please check the box to enable Inter-LAN route function. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 130 A lifetime of 0 indicates that the router is not a default router and should not appear on the default router list. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 131 Click it to exit the dialog without saving anything. When you finish the above settings, please click Apply to save the configuration and exit the dialog. The LAN profile has been edited. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 132 DHCP server. End IP Display the ending IP address of the IP address pool for DHCP server. Display the private IP address for DNS server. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 133 Set the starting IP address of the IP address pool for DHCP server. The format the IP address shall be similar to the following example: 2000:0000:0000:0000:0000:0000:0000:10 or 2000::10. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 134 It is available when Manual Setting is selected as Mode. Set the private IP address for DNS server. If this field is blank, users on LAN will treat Vigor3900 as the DNS server. Add – Click it to add a new IP address for DNS server.

  • Page 135: Pppoe Server

    LAN PC connections with username/password authentication. Secondly, it can prevent ARP attack by nature. Thirdly, the system administrator can configure quota (time/traffic based) for each user as ISP does. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 136 Display the time that the PPPoE connection built. RX Bytes Display the total amount of received packets. TX Bytes Display the total amount of transmitted packets. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 137 Internet. User Authentication Users in LAN can access into Internet through Vigor router with RADIUS, LDAP or local authentication. Specify the Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 138 User Name Display the user name used to access into the PPPoE server. Action Display the connection status (up or down) of the user account. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 139: Switch

    The purpose of VLAN is to isolate traffic between different users and it can provide better security application. Each item will be explained as follows: Item Description Add a new VLAN ID setting. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 140 You cannot choose it. If you want to specify that one for such profile, please exit this dialog to release that Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 141 Click it to exit the dialog without saving anything. Enter all the settings and click Apply. The new profile will be added on the screen. Vigor3900 supports port mirroring function in LAN interfaces. This mechanism helps manager track the network errors or abnormal packets transmission without interrupting the flow of data access the network.
  • Page 142 Select a port to view traffic sent from mirrored ports. Mirroring Port Select which port is necessary to be mirrored. Mirrored Port Refresh Renew current web page. Apply Click it to save the settings. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 143 Flow Control Display the status (enable or disable) of such function. 802.3az Display such function is enabled or disabled. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 144 802.3az It is a function of energy-efficient Ethernet. It can detect the network traffic automatically to adjust the power output and let Vigor3900 save the energy during the period of low traffic. Apply Click it to save and exit the dialog.

  • Page 145: Bind Ip To Mac

    The default is “lan1”. Syslog - When Strict Bind/Enable is selected, you can check the box to save records of Bind IP to MAC in Syslog. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 146 Strict Bind – Only specified IP addresses will be assigned to the device with bind MAC address. Other devices which are not listed on the Bind Table shall still NOT get the IP address from DHCP server. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 147 Click it to exit the dialog without saving anything. Enter all the settings and click Apply. A new profile has been added onto Bind Table. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 148: Lan Dns

    To edit VALN ID setting, simply select the one you want to modify and click the Edit button. The edit window will appear for you to modify the corresponding settings for the selected rule. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 149 Display the LAN profile selected for applying LAN DNS configuration. Open LAN>>LAN DNS. Click the Add button. The following dialog will appear. Available parameters are listed as follows: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 150 Type several domain names in this field. LAN DNS will redirect both Domain name and Alias Domain Name to an assigned IP. For example, Domain Name is set with “www.draytek.com”, and the Alias Domain Name is set as “www.dray.com”. If the IP address is set with “192.168.1.123”, then both “www.draytek.com”...

  • Page 151: Routing

    This menu contains Static Route, RIP Configuration, OSPF Configuration and BGP Configurations. Vigor3900 supports a load balancing function. It can assign traffic with protocol type, IP address for specific host, a subnet of hosts, and port range to be allocated in WAN interface.
  • Page 152 WAN interfaces. If you choose Failover, the tab of Failover will be displayed which allows you to specify the primary profile and backup profile for such Pool setting. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 153 Load Balance Pool. Type the value for Weight. Click Apply. A new profile will be added on the page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 154 Backup Profile Use the drop down list to choose the one you need. Click Apply. A new profile will be added on the page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 155: Static Route

    Display the IP address for such static route profile. Destination IP Address Subnet Mask Display the subnet mask for such static route profile. Gateway Display the gateway address for such static route profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 156 Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. The new profile will be added on the screen. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 157 Display the IP address for such static route profile. Prefix Length Display the prefix length of the profile. Nexthop Display the nexthop address for such static route profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 158 Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. The new profile will be added on the screen. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 159 WAN. When the local device tries to transmit the data packets out, Vigor3900 will send it out through that certain WAN interface without passing through NAT. Meanwhile, remote device also can access the local device directly without any difficulty.
  • Page 160 Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. The new profile will be added on the screen. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 161: Policy Route

    To edit a profile, simply select the one you want to modify and click the Edit button. The edit window will appear for you to modify the corresponding settings for the selected Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 162 Failover to Next Rule Display the status (enabled or disabled) of the function. Failback (Quick Display the status (enabled or disabled) of the function. Recover) Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 163 It is available when TCP/UDP is selected as protocol. Choose a profile for such rule. Source Source Type - Choose the address type (Any, Subnet or Object) for such rule. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 164 Out-going Rule - It determines the way (interface) that the Route Rule incoming traffic will be forwarded to. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 165 Vigor router will treat the selected interface as disconnected and activate Failover mechanism. For example, you might configure settings as: Out-going Rule : User Defined Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 166 Failover mechanism. For example, you might configure settings as: Out-going Rule : User Defined Out-going interface : wan1 Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 167 Vigor router for 5 seconds, Vigor router will use next matched rule to perform data transmission. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 168 When SSL VPN selected as Out-going Rule  SSL Profile – VPN SSL profiles can be selected by such policy route.  Mode – Specify which mode (NAT or Routing) Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 169 Click it to return to the factory setting. Enter all of the settings and click Apply. The new rule profile will be added on the screen. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 170 IP address or a block of internal IP addresses. We will take an example to introduce how to make use of this feature. Log into the web user interface of Vigor3900. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 171 Click Add on IP Alias to configure the other IP address which is 202.211.100.11. After finished configuration for WAN1, continue to configure WAN2. At this time, the IP switch shall be set as “203.98.200.10”. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 172 In the following page, check the box of Enable. Choose Object as the Source Type and choose IP range object profile from the drop down list of IP Object. Click Apply to save the settings. And, Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 173 Upon completing the above configuration, you have specified the outgoing IP address(es) for some specific computers. Now, you bind some specific computers to some WAN IP alias for outgoing traffic. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 174 Internet. The PC in LAN1 can send the data to the remote PC through the specified WAN1. Access into web user interface of Vigor3900. Open Routing>> Policy Route and click Add to create a new profile.
  • Page 175 After finished the above settings, click Apply to save the configuration. Now, any packets from LAN1 sent to the remote PC (IP address: 203.65.1.35) will be forcefully to pass through WAN1. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 176 A LAN to LAN VPN tunnel is built between DrayTek VPN router (e.g., Vigor3900) and the remote router. Enterprise firewall router (in Headquarter) can control the all of the traffic coming from the remote PC (in Branch) which wants to access into Internet.
  • Page 177 Out-going Rule; choose lan1 as the Out-going Interface; type 192.168.1.2 as the Out-going (Gateway); and click Disable for Failover to Next Rule. After finished the above settings, click Apply to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 178: Default Route

    WAN interface. WANs Disable – Check it to disable the function. Apply Click it to save the configuration. Discard current page modification. Cancel Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 179: Rip Configuration

    B will tell A "if you want to send packets to C, please send it to me first", then A will create a routing rule to forward packet that destination is C to B. In another direction, C will do the same thing. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 180: Ospf Configuration

    OSPF feature to fit your request. Note that both routers must support OSPF function at the same time to build the OSPF connection. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 181 Click it to discard the settings configured in this page. Open Routing>>OSPF Configuration. Check Enable. Click the space of Profile. A pop-up dialog will appear. Click Add. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 182 Click Apply to save the settings and exit the dialog. A new profile is created and displayed on the screen. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 183: Bgp Configuration

    ISPs and follows the routing policies made by ISP. Such page displays current neighbors status in BGP routing environment. Available parameters are listed as follows: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 184 Neighbor tab in Routing >>BGP configuration. Display the status of neighbor profile. If it is established State successfully, “Established (time)” will be shown in this field. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 185 IP – Type the IP address. Subnet Mask – Display subnet mask for the IP address automatically. After finished the settings, click Apply to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 186 Refresh Renew current web page. Profile Display the name of the profile. Enable Display the status of the profile. False means disabled; True means enabled. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 187 Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 188: Nat

    Series is NAT-enabled by default and gets one globally routable IP addresses from the ISP by Static, PPPoE, or DHCP mechanism. The Vigor3900 Series assigns private network IP addresses according to RFC-1918 protocol and translates the private network addresses to a globally routable IP address so that local hosts can communicate with the router and access the Internet.
  • Page 189 Display the WAN interface of this profile. Use IP Alias Display the type (no, Single_Alias, All) the IP Alias used. Alias Display the selected WAN IP address. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 190 Check the box to enable this profile. Port Redirection Specify the direction for the port to be redirected. Mode Specify the WAN profile for such profile. WAN Profile Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 191 Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all the settings and click Apply. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 192: Server Load Balance

    To edit a profile, simply select the one you want to modify and click the Edit button. The edit window will appear for you to modify the corresponding settings for the selected rule. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 193 Check the box to enable this profile. Choose the protocol (TCP or UDP) used for the entry. Protocol Specify the WAN interface for such profile. WAN Profile Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 194: Dmz Host

    If an outside user penetrated the DMZ host’s security, only the Web pages will be corrupted but other company information would not be exposed. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 195 Display the selected WAN IP address if Use IP Alias is enabled. DMZ Host IP Display the IP address of the DMZ host. Allow DMZ Host to Display if such function is enabled or disabled. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 196 This is an optional setting. Use the drop down list to choose the IP group profile(s) to apply to such profile. Allowed Service This is an optional setting. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 197 Click it to exit the dialog without saving anything. Enter all the settings and click Apply. A new profile has been added onto DMZ Host table. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 198: Alg

    Check the box to enable the Mirror function for the switch. Refresh Renew current web page. Apply Click it to save the settings. Click Apply to save the settings. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 199 The H.323 ALG allows incoming and outgoing VoIP calls passing through NAT. If required, check the box and click Apply to save the settings. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 200: Connection Timeout

    Set a time limit for sessions established by TCP SYN. Apply Click it to save the settings. Cancel Click it to discard the settings configured in this page. Click Apply to save the settings. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 201: Firewall

    The firewall controls the allowance and denial of packets through the router. Firewall Setup in the Vigor3900 Series mainly consists of packet filtering, Denial of Service (DoS) and URL (Universal Resource Locator) content filtering facilities. These firewall filters help to protect your local network against attack from outsiders. A firewall...
  • Page 202 Group Type the name of the IP filter group. Enable Check the box to enable this profile. Comment Give a brief description for the profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 203 A setting page will appear for you to add new IP filter rule profile. Move your mouse to click Add. The following page for configuration will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 204 Limit Packets setting will be dropped. That is, packets to be passed or dropped are determined by connection rate (new session) at that time. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 205 Service Type Object –Click the triangle icon to display the profile selection box. Choose one or more service type object profiles from the drop down list. The selected profile Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 206 The selected profile will be treated as destination target. You can click create another new MAC object profile. Apply Click it to save and exit the dialog. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 207 10. A new IP filter rule has been added under the IP Filter Group (named IPF_Market in this case). Note: You can create multiple IP filter rules under a certain IP Filter group. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 208 To build an IP group containing IP filter rules, please follow the steps: Open Firewall>>Filter Setup and click the IPv6 Filter tab. Simply click the Add button. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 209 IP filter group profile. A setting page will appear for you to add new IP filter rule profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 210 The action to be taken when packets match the rule. Block - Packets matching the rule will be dropped immediately Accept- Packets matching the rule will be passed immediately. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 211 Choose one or more IP object profiles from the drop down list. The selected profile will be treated as source target. You can click to create another Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 212 10. A new IPv6 filter rule has been added under the IPv6 Filter Group (named For_IPv61 in this case). Note: You can create multiple IPv6 filter rules under a certain IP Filter group. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 213 If no time schedule is set, None will be shown in this field. Firewall Target Display the IP object profile selected for such application profile. APP Block Display the APP object profile selected for such application profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 214 Choose a schedule profile to be applied on such application filter profile. The router will perform the filtering job based on the time object selected. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 215 Cancel Click it to exit the dialog without saving anything. Enter all the settings and click Apply. A new Application filter profile has been added. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 216 Renew current web page. Move Up Change the order of selected profile by moving it up. Move Down Change the order of selected profile by moving it down. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 217 Click it to discard the settings configured in this page. Open Firewall>>Filter Setup and click the URL/Web Category Filter tab. Simply click the Add button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 218 Time Group - Click the triangle icon to display the profile selection box. Choose a schedule group profile to be Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 219 Cancel Click it to exit the dialog without saving anything. Enter all the settings and click Apply. A new URL filter profile has been added. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 220 Display the account name which is allowed to pass if the selected QQ profile is enabled. QQ Account Block Display the account name which will be blocked if the Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 221 Use the drop down list to specify a QQ account profile for such profile. The select account will not be blocked by Vigor router. You can click to create another new QQ account. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 222 Pass DNS Query – Check the box to make the DNS query passing through Vigor router’s firewall.  Pass Reply of Port Redirection /DMZ – Check the Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 223 Click it to save the configuration. Cancel Click it to discard the settings configured in this page. After finished the above settings, click Apply to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 224: Dos Defense

    Any packet that may paralyze the host in the security zone is blocked. The DoS Defense Engine also monitors traffic behavior. Any anomalous situation violating the DoS configuration is reported and the attack is mitigated. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 225 The router will identify it and report a warning message if the port scanning rate in packets per second exceeds the user-defined threshold Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 226 Click it to save the configuration. Cancel Click it to discard the settings configured in this page. After finished the above settings, click Apply to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 227: Mac Block

    Display the status of the profile. False means disabled; True means enabled. MAC Address Display the MAC address for such profile. Open Firewall>>MAC Block. Simply click the Add button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 228 Cancel Click it to exit the dialog without saving anything. Enter all the settings and click Apply. A new MAC Block profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 229: Filter Counter

    Then the administrator or the user can adjust the filter to meet his request. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 230: Objects Setting

    Vigor3900 allows users to set different filter profiles based on IP, service type, keyword, file extension, instant message application, P2P application, protocol application, web category, QQ application, time setting, SMS service, mail service and notification. These objects setting profiles can be applied in Firewall.

  • Page 231: Ip Object

    Display the IP address of the ending point for such profile. It will be joined with Start IP Address only when you choose Range as the Address Type. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 232 Cancel Click it to exit the dialog without saving anything. Enter all the settings and click Apply. A new IP object profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 233: Ip Group

    Group Name Display the name of the object group. Description Display the description for such profile. Objects Display the object profiles grouped under such group. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 234 Cancel Click it to exit the dialog without saving anything. Enter all the settings and click Apply. A new IP Group profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 235: Ipv6 Object

    Display the address type of the object. Address Pool Display the IP address/ IP range /subnet of the object. Open Objects Setting>>IPv6 Object. Simply click the Add button. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 236 Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new IPv6 Object profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 237: Mac/Vendor Object

    Delete button. Refresh Renew current web page. Open Objects Setting>> MAC / Vendor Object. Simply click the Add button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 238 Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new MAC/Vendor Object profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 239: Country Object

    To delete a rule, simply select the one you want to delete and click the Delete button. Refresh Renew current web page. Open Objects Setting>>Country Object. Simply click the Add button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 240 Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new Country Object profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 241: Service Type Object

    Display the starting destination port for such profile. Destination Port End Display the ending destination port for such profile. Open Objects Setting>> Service Type Object. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 242 Click it to exit the dialog without saving anything. Enter all the settings and click Apply. A new Service Type Object profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 243: Service Type Group

    Display the name of the service type group. Description Display the description for such profile. Objects Display the service type object profiles grouped under such group. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 244 Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. A new Service Type Group profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 245: Keyword /Dns Object

    Keyword can be set as a filter rule to be applied in Firewall. Vigor3900 allows users to set keyword profile with several keywords. Even, it allows users to group several keyword profiles within a keyword group. Each item will be explained as follows:...
  • Page 246 Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. A new Keyword Object profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 247 Display the name of the DNS object profile. Member Table Display the words specified in such profile. Open Objects Setting>>DNS Object. Simply click the Add button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 248 Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. A new DNS Object profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 249: File Extension Object

    Display the selected file extension of java. Display the selected file extension of activeX. ActiveX Compression Display the selected file extension of compression. Display the selected file extension of execution. Execution Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 250 Several file extensions for execution offered for you to choose. Use the drop down list to check the box (es) to select the file extension you need. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 251: App Object

    Delete Remove the selected profile. To delete a rule, simply select the one you want to delete and Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 252 Later, it can be applied to Firewall as a filter rule and reach the purpose of block. Available parameters are listed as follows: Item Description Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 253 Click Protocol to get the following page. Network services, e.g., DNS, FTP, HTTP, POP3, for LAN users can be blocked by Vigor3900. Common services will be listed in this function and can be selected to be blocked by the router.
  • Page 254 (s) you want to add for such profile. Control/Web HD Enter all of the settings and click Apply. A new APP Object profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 255: Web Category Object

    If you want to purchase a formal edition, simply contact with your DrayTek dealer. Note 1: Web Content Filter (WCF) is not a built-in service of Vigor router but a service powered by Commtouch.
  • Page 256 Display the items under certain category that you choose to block. Open Objects Setting>> Web Category Object and click the Web Category Object tab. Simply click the Add button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 257 A new Web Category Object profile has been created. Move your mouse to the link of Activate URL and click it. The system will guide you to access into MyVigor website. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 258 After finishing the activation for the trial version of WCF, remember to purchase “Silver Card” for WCF service from your DrayTek dealer or distributor. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 259: Qq Object

    Display the account name of the QQ object profile. Description Display a brief explanation of the QQ object profile. Open Objects Setting>> QQ Object. Simply click the Add button. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 260 Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. A new QQ Object profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 261: Qq Group

    Display the brief explanation for such group. Objects Display the objects selected by such group. Open Objects Setting>> QQ Group. Simply click the Add button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 262 Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. A new QQ group profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 263: Time Object

    Display the ending date of the time object profile. End Time Display the ending time of the time object profile. Weekdays Display the frequency of such time object profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 264 Specify the ending date of the time object profile. End Time Specify the ending time of the time object profile. Specify which days in one week should perform the Weekdays schedule. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 265: Time Group

    Group Name Display the name of the group. Description Display the brief explanation for such group. Objects Display the time objects selected by such group. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 266 Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. A new time group profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 267: Sms Service Object

    SMS provider. Quota Display the number of the credit that you purchase from the service provider Interval(s) Display the time interval for sending the SMS. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 268 Note that one credit equals to one SMS text message on the standard route. Interval(s) To avoid quota being exhausted soon, type time interval for sending the SMS. Apply Click it to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 269: Mail Service Object

    Display the mail address of the sender. SMTP Port Display the port number used for the SMTP service. SMTP Server Display the IP address of the SMTP Server Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 270 Choose SSL/TLS or StartTLS to enable the service for Security connection security. Or, use the default setting, Disable. SSL/TLS Click the Enable button to enable service. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 271: Notification Object

    Delete Remove the selected profile. To delete a rule, simply select the one you want to delete and click the Delete button. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 272 Type a name for such SMS profile. The maximum length of the name you can set is 20 characters. There are several situations to be monitored by such profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 273 Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. A new notification object profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 274 Such page is used to set the limit value for CPU, Memory, TX / RX. When CPU, Memory, TX / RX usage reaches the threshold, the router system will send the alert message to the recipient. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 275: User Management

    User Management can manage all the accounts (user profiles) to connect to Internet via different protocols. Below shows the menu items for User Management: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 276: Web Portal

    Display the IP address of the user who logs into the WUI of Vigor3900. Allow Time Display the total network connection time allowed for the Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 277 Local first, Guest second, RADIUS third and LDAP the last. However, if you check SMS, the router will authenticate the user with SMS rules Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 278 Alert Message – If a mobile device is detected, a warning message (typed in this field) will be displayed on the screen of mobile device. The default content is “Mobile Device Detected”. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 279 Disable – The title (defined in Customized Field 1/2/3 Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 280 Click it to exit the dialog without saving the configuration. Note: To turn off the web portal function, disable Login Mode and Bulletin Board at the same time. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 281 Internet. Upload Login Image – Choose a file to upload to Vigor3900. It is useful for advertisement. Customized Background Specify an image file which will be display on the login page Image as a background.

  • Page 282: User Profile

    After finished the above settings, click Apply to save the configuration. This page shows the history that wireless client(s) access into Vigor3900. This function allows to configure all accounts (user profiles) in Vigor3900, including PPTP/L2TP/SSL/PPPoE, System user, and so on.
  • Page 283 Display the status of PPTP connection for such user profile. L2TP Dial-in Display the status of L2TP connection for such user profile. SSL Tunnel Display if SSL Tunnel is activated (enable or disable) or Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 284 Open User Management>>User Profile. Simply click the Add button. The following dialog will appear. Available parameters are listed as follows: Item Description Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 285 User Management Allow Web Portal Enable – Click it to enable web portal login with such Login profile. Disable – Click it to disable the option. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 286 Vigor router. If not, the VPN connection is not allowed. PPPoE Server Allow PPPoE Click Enable to activate related PPPoE configuration. Server Login Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 287 Cancel Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. A new User Profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 288 Status Modify mOTP Status Check the box to configure detailed setting. Enable – Click it to enable the mOTP function all user profiles. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 289 All – Apply all of the modifications to all user profiles. Partial – Apply all of the modifications to specified user profile. After finished the above settings, click Apply to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 290 Set up user profile as shown below. Type Username; check Enable and type Password. Then, type Max User Login. Click Apply to save the settings. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 291 Prefix, and Number of Generate (in this case, 100); click Enable for Validity Period to type the Start Time and End time, and click Apply to save the settings. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 292 By clicking each account (e.g., choose 1001 and click Edit), we can check the information for this account, and we may also modify the account name and password manually. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 293 Note that Administrator is able to Export the information for the whole group to a .csv file, which is useful to redistribute the account and password combinations to guests. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 294 Boss to put it into the white list, and this will allow this IP address to access to the Internet without authentication. After finishing configuration, Vigor3900 will redirect users to the authentication page when they try accessing to the Internet.
  • Page 295 For Employees to access into Internet: For Room guest to access into Internet: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 296: Usergroup

    Display the name of the user group. Enable Display the status of the profile. False means disabled; True means enabled. Member Display the user profiles under such group. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 297 Click it to exit the dialog without saving the configuration. Cancel Enter all the settings and click Apply. A new User Group Profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 298: Guest Profile

    Usage Time(min) Display the usage time for the guest accessing into Internet each time. Display the valid period for the guest accessing into Internet. Validity Period Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 299 Login The range is from 1 to 255. -1 means no limit; 0 means No access. Apply Click it to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 300 A setting page will appear for you to add new guest list. Move your mouse to click Add. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 301 The guest profile can be unlocked to be used by other users. Enter all of the settings and click Apply. 10. A new guest has been added under the Guest Group (named Carrie in this case). Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 302 Length – Type a number to determine the length of the Settings random passwords which will be assigned to the mass guest profiles by the system. The range of Password Length is 6~12. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 303 Description Guest Group Choose a group that you want to export the settings, including guest profile names and random passwords as a file for reference. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 304: Radius

    Click it to save the configuration. Cancel Click it to discard the settings configured in this page. After finished the above settings, click Apply to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 305 Note: “Allow Radius Server Login” can be enabled from the configuration page in User Management>>User Profile. It allows the clients to be authenticated by internal RADIUS server of Vigor router. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 306: Ldap/Active Directory

    Display the status of the profile. False means disabled; True means enabled. Bind Type Display the type setting selected for such profile. Server IP Address Display the IP address of the LDAP server. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 307 The following dialog will appear. Available parameters are listed as follows: Item Description Profile Type a name for such profile. Enable Check this box to enable such profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 308 Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. A new LADP/Active Directory Profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 309: Application

    DDNS service providers such as www.dyndns.org, www.no-ip.com, www.dtdns.com, www.changeip.com, www.dynamic- nameserver.com. You should visit their websites to register your own domain name for the router. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 310 Display the name of the DDNS. Status Display the connection status for the DDNS sever. Domain Name Display the domain name for the DDNS server. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 311 There are 10 sets of DDNS server offered for you to modify and configure. Please choose any one of them and click Edit to open the following page for modification. Open Applications>>Dynamic DNS and click the Setting tab. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 312 – The DDNS profile will be applied to the traffic via WAN interface only. No other interface will be used. Service Provider Select the service provider for the DDNS account. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 313 Click it to save the configuration. Cancel Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. The DDNS Profile has been modified. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 314: Dns Security

    DNS attack by someone. Available parameters are listed as follows: Item Description Enable DNS Security Check the box to enable the DNS security management. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 315 WAN profiles supporting DNS security or not. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 316: Gvrp

    Define the time for the system to send GVRP packet to other device. The unit is second. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 317: Igmp Proxy

    IGMP Interface IP – Type the IP address of IGMP server. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 318: Upnp

    Cancel Click it to discard the settings configured in this page. The reminder as regards concern about Firewall and UPnP Can't work with Firewall Software Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 319: High Availability

    Slave (backup) device could replace the Master role to take over all jobs as soon as possible. However, once the original Master is working again, the Slave would be changed to original role to stand by. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 320 It is used for encrypting the HA session communication to prevent malicious attack. Advance Preemption Mode – Specify a mode for changing the Config Synchronization Role. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 321 All Must Be Up - The master router can own its position only when all of LAN ports are connecting. Settings under Active Authentication Key – Type a string as the authentication key. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 322 ID. HA Status It will display the HA status (Master or Backup) for such router. Apply Click it to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 323 When LAN1 in Router A fails, one of the available line connections (e.g., LAN1 in Router C) will be selected to offer the network service for all the connected PCs. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 324 HA Status Display the online status (Master, Backup, LAN_failed and WAN_Failed) of such HA profile. Open Applications>>High Availability and click the Active Standby Profile Setup tab. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 325 Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Enter all of the settings and click Apply. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 326 Display the online status (Master, Backup, LAN_failed and WAN_Failed) of such HA profile. Detail An icon displayed here allows to open a detailed settings page for HA configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 327: Wake On Lan

    Click this button to wake up the selected IP. See the following figure. The result will be shown on the box. Delete Click this button to remove all the settings. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 328 Display the name of LAN profile. LAN Profile Open Applications>>Wake on LAN and click the Schedule Wake on LAN tab. Simply click the Add button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 329: Sms / Mail Alert Service

    This page allows you to specify SMS provider, who will get the SMS, what the content is and when the SMS will be sent. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 330 Display the name of the SMS provider. Recipient Display the one who will receive the SMS. Notify Profile Display the name of the notify profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 331 Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. The SMS alert service profile has been modified. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 332 Open Applications>> SMS/Mail Alert Service and click the Mail Alert Service tab. Choose one of the index numbers and click the Edit button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 333 Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. The mail alert service profile has been modified. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 334: Vpn And Remote Access

    Such wizard is used to configure VPN settings for VPN client. Such wizard will guide to set the LAN-to-LAN profile for VPN dial out connection step by step. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 335 VPN LAN to LAN profile. Simply type the name in the field of Profile Name. The field of Profile Name is available only when you click this setting. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 336 Display the name of the VPN profile. Enable This Profile Check this box to enable such profile. Always On Click Enable to make the profile being always on. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 337 RIP via VPN Enable – Click it to exchange routing information protocol packets via VPN connection.  Disable – Disable such function. This is default setting. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 338 Local ID – Type the ID for Vigor router which can be configured by the remote end. It is available only when Aggressive Mode is enabled. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 339 If you choose SSL as the Type, you will get the following screen: Available parameters are listed as follows: Item Description Profile Display the name of the VPN profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 340  RIP via VPN Enable – Click it to exchange routing information packets via VPN connection.  Disable – Disable such function. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 341: Vpn Server Wizard

    LAN-to-LAN profile for VPN dial in connection step by step. Open VPN and Remote Access >> VPN Server Wizard. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 342 Type a new name for such profile. Next Go to next page. Cancel Cancel the configuration and return to the home page of such function. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 343 Enable – Click this button to let multicast packets pass through the router.  Disable – This is default setting. Click this button to let multicast packets be blocked by the router. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 344 However, the Aggressive mode is faster. The default value in Vigor router is Main mode. Local ID – Type the ID for Vigor router which can be Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 345 It is the timeout timer. The peer will be declared dead once no acknowledge message is received after timeout value. Use the value 0 to disable this function. The recommended value is 120 seconds if enabled. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 346 Disable – This is default setting. Click this button to let multicast packets be blocked by the router.  RIP via VPN Enable – Click it to exchange routing information Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 347 Fill in the required information on this page and click Finish. A pop-up window will appear. Click OK. Then, return to VPN and Remote Access>>VPN Server Wizard. The new added VPN server profile will be displayed on the screen. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 348: Remote Access Control

    Choose one of the services by clicking on the radio button. Service Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 349: Ppp General Setup

    Specify one of the encryptions for such server. It is available MPPE Encryption only when MS-CHAP or MS-CHAP_v2 is selected. User Authentication Set user authentication to Local server, RADIUS server or Type LDAP server. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 350 Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Enter all the settings and click Apply. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 351 Enable - Let the router assign IP address to every host in the LAN. Disable - Let you manually assign IP address to every host Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 352 Enable - Let the router assign IP address to every host in the LAN. Disable - Let you manually assign IP address to every host in Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 353: Ipsec General Setup

    These objectives are met through the use of two traffic security protocols, the Authentication Header (AH) and the Encapsulating Security Payload (ESP), and through the use of cryptographic key management procedures and protocols. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 354: Vpn Profiles

    The router supports up to 500 VPN (tunnels or profiles) simultaneously. The following figure shows the summary table. Each item will be explained as follows: Item Description Add a new profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 355 Authentication Header (AH) and the Encapsulating Security Payload (ESP), and through the use of cryptographic key management procedures and protocols. Open VPN and Remote Access >>VPN Profiles. Simply click the Add button. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 356 LAN subnet mask for the remote host. More Remote Subnet – Add more remote subnet in this field if required. IKE Protocol – Choose IKEv1 or IKEv2. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 357 Local Certificate - Choose a local certificate from the drop down list if RSA is selected as Auth Type. Local Peer ID –Type the ID for Vigor3900 which can be configured by the remote end. It is available for Aggressive Mode enabled only.
  • Page 358 IP address for the system to PING it for keeping alive. If the remote network only allows you to dial in with single Route/NAT Mode IP, please choose this mode, otherwise please choose Route Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 359 Click it to exit the page without saving the configuration. For GRE over IPsec Tunnel, please enable GRE function and enter your GRE IP for both sides. Available parameters are listed as follows: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 360 (Dial-Out) IKE Phase2 Propose the local available authentication schemes and Proposal (Dial-Out) encryption algorithms to the VPN peers, and get its Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 361 Type the LAN IP address and LAN subnet mask for the Mask remote host. After filling the required information, click Apply and a new IPsec LAN-to-LAN profile will be created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 362 Display the LAN IP address with subnet mask of this profile. Remote IP / Subnet Display the WAN IP address with subnet mask of this Mask profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 363 Name Type a user name for authentication in PPTP/SSL PPTP User Name/ connection. SSL User Name PPTP Password/ Type a password for authentication in PPTP/SSL Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 364 Click it to exit the page without saving the configuration. Enter all the settings and click Apply. A new PPTP/SSL Dial-Out profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 365 Display the LAN IP address with subnet mask of this profile. Remote IP / Subnet Display the WAN IP address with subnet mask of this Mask profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 366 Enable – Click this button to let multicast packets pass through the router.  Disable – This is default setting. Click this button to let Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 367 Display the name of LAN to LAN profile with GRE policy. Enable Display the status of the profile. False means disabled; True means enabled. WAN Interface Display the WAN interface used for GRE tunnel. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 368 Click it to exit the page without saving the configuration. Enter all of the settings and click Apply. A new GRE LAN-to-LAN profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 369: Vpn Trunk Management

    VPN Tunnels disconnected. Users do not need to reconnect with setting TCP/UDP Service Port again. The VPN Load Balance function can keep the transmission for internal data on tunnel stably. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 370 Display the backup interface for failover. Open VPN and Remote Access >>VPN TRUNK Management and click the Load Balance Pool tab. Simply click the Add button. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 371 Enter all the settings and click Apply. A new profile has been created. Refer to Chapter 3, How to Configure VPN Load Balance between Vigor3900 and Other Router for getting more detailed information about Load Balance application. Vigor3900 Series User’s Guide...
  • Page 372 Display the subnet mask address specified for the destination IP of this entry. Destination Port Start Display the start point specified in the Dest Port Range for this entry. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 373 Load Balance Pool Use the drop down list to choose one profile configured in load balance pool. Then, such rule will be applied by the pool. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 374: Connection Management

    Display the remote IP configure by VPN profile. Virtual Network Display the virtual network established by such VPN profile. Up Time Display the connection time of this VPN tunnel. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 375 Display the IP address of the remote end. Action Display the connection status (UP or DOWN) of VPN profile. Time Display the time the VPN profile connects/disconnects. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 376: Certificate Management

    Local certificate is created by the end user and must be signed by a trusted CA center. Vigor3900 can serve as a trusted CA and is called with “Root CA”. Therefore, any user can ask for certificate signed by Vigor3900.
  • Page 377 Display the end point of the valid time of trusted CA. Open Certificate Management>> Local Certificate. Simply click the Generate button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 378 ID Value The ID value is determined by the ID Type selected for such certificate. For example, if you choose Domain Name as the ID Type, Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 379 If you have already gotten a certificate from a third party, you may import it directly. The supported types are PKCS12 Certificate and Certificate with a private key. Open Certificate Management>> Local Certificate. Specify a certificate and click the Download button. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 380 Click Save. The file will be stored under the folder you specified above. Open Certificate Management>> Local Certificate. Click Upload to open the following dialog. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 381: Trusted Ca Certificate

    Click Upload. The system will start to upload the selected file. This page allows you to build a RootCA certificate for Vigor3900. RootCA can be deleted but not edited. If you want to modify the settings for a RootCA, please delete the one and create another one by clicking Build RootCA.
  • Page 382 Vigor router. Remove the selected item of trusted CA listed below. Delete Download Allow you to download an existing trusted CA certificate to the router. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 383 Type the name of the organization. Type the name of the city for such certificate. Locality (City) Type the name of the state / province for such certificate. State/Province Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 384: Remote Certificate

    Enter all the settings and click Apply. A new RootCA Certificate has been created. Vigor3900, as a Root CA, can sign any certificate coming from end users locally or remotely. The selected user-defined certificate must be uploaded to Root CA. Also, the processing result will be displayed on this page.
  • Page 385 Allow you to sign a requested certificate. Name Display the name of remote certificate built. Subject Display the subject of remote certificate built. Status Display the status of remote certificate built. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 386: Ssl Proxy

    Remove the selected profile. Delete To delete a profile, simply select the one you want to delete and click the Delete button. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 387: Ssl Application

    Network Computer) /RDP (Remote Desktop Protocol), to any remote user with access to Internet and a web browser. VNC stands for Virtual Network Computing. It allows you to access and control a remote PC through VNC protocol. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 388 Display the percentage for such application. Open SSL Proxy >> SSL Application and click the VNC tab. Simply click the Add button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 389 Click it to exit the page without saving the configuration. Enter all the settings and click Apply. A new SSL Application profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 390 Display the screen size for such application. Open SSL Proxy>> SSL Application and click the RDP tab. Simply click the Add button. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 391 Click it to exit the page without saving the configuration. Enter all the settings and click Apply. A new SSL Application profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 392: Online User Status

    If you have finished the configuration of SSL Web Proxy (server), users can find out corresponding settings when they access into DrayTek SSL VPN portal interface. Each item will be explained as follows: Item Description Auto Refresh Specify the interval of refresh time to obtain the latest status.

  • Page 393: Bandwidth Management

    The QoS function handles incoming and outgoing classes independently. Users can configure incoming or outgoing separately without any impact on the other. This page displays current QoS Status. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 394 Follow the steps below to create a new maintenance profile. Click one of the QoS WAN profiles to select the one you want to edit. Click Edit. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 395 There are several available outgoing queues. All queues in High/Medium/ the data group to be initialized with weights of zero, Normal/Low resulting in a strict service to completion (STC) mechanism Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 396 Normal/Low a strict service to completion (STC) mechanism across all queues.0. Type the weight of queues in bytes, range from 0 to Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 397: Qos Rule

    Display the total number (32) of the profiles to be created. Enable Display the status of the profile. False means disabled; True means enabled. Display the source IP address for the filter. Local IP Object Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 398 Type the name of the filter profile. Enable Check this box to enable such profile. Match Type Use the drop down list to specify a suitable match type. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 399 Local IP Group – Use the drop down list to choose one of the IP group for such rule profile. If you want to create a new IP object, simply click open the following dialog. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 400  End IP Address - Type the IP address of the ending point for such profile if you choose Range as Address Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 401 Click it to exit the page without saving the configuration. Cancel Enter all the settings and click Apply. A QoS rule profiler has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 402 Set a port number used for SIP. Apply Click it to save and exit the dialog. Cancel Click it to discard the settings configured in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 403 Apply Click it to save and exit the dialog. Cancel Click it to discard the settings configured in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 404: Sessions Limit

    Display the status of the profile. False means disabled; True means enabled. Limit Display the maximum session number allowed for the profile. Source IP Object Display the source IP object profile name. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 405 Click it to discard the settings configured in this page. Open Bandwidth Management>> Sessions Limit. Simply click the Add button. The following dialog will appear. Available parameters are listed as follows: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 406 Cancel Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. A session limit profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 407: Bandwidth Limit

    Display the limitation for the speed of the downstream. TX Limit Display the limitation for the speed of the upstream. Mode Display the mode selection (Each/Shared) of the selected profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 408 Click it to save and exit the dialog. Apply Cancel Click it to discard the settings configured in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 409 RX limit fields; select Shared to make all the IPs within the range of Start IP and End IP share the speed defined in TX limit and RX limit fields. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 410 Cancel Click it to exit the dialog without saving the configuration. Enter all the settings and click Apply. A bandwidth limit profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 411: Usb Application

    Restart Devices Click it to restart the USB device. Manufacturer Display the manufacturer of the USB device. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 412: Ftp Server

    FTP user profile created. Just open User Management>>User Profile, create a new user profile with Allow FTP Server Login enabled. Volume It displays the proper volume for the connected USB disk. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 413: Samba Server

    Description Type any text to describe SMABA server. Workgroup Type the name of the workgroup for the SAMBA server to be located by Windows system. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 414 Edit button. The following dialog will appear. Available parameters are listed as follows: Item Description Profile Type the name of the profile to be shared. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 415 Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. A folder profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 416: Printer

    Enable – The printer server will be enabled. Disable – The printer server will be disabled. Apply Click it to save the configuration. Cancel Click it to return to factory default setting. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 417: Temperature Sensor

    A USB Thermometer is now available that complements your installed DrayTek router installations that will help you monitor the server or data communications room environment and notify you if the server room or data communications room is overheating. During summer in particular, it is important to ensure that your server or data communications equipment are not overheating due to cooling system failures.
  • Page 418 Click it to save the configuration and exit the dialog. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 419: Modem Support List

    Such page provides the information about the brand name and model name of the USB modems which are supported by Vigor router. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 420: System Maintenance

    Each item will be explained as follows: Item Description Enable Check this box to enable such profile. ACS server on Choose one of the WAN/LAN profiles which will be Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 421 ACS Connection Status When it lights in green, it means the router has been detected and can be managed by VigorACS. Port Type the port number for Vigor3900 which will be recognized by VigorACS. CPE URL Display the URL of such CPE.
  • Page 422 This feature is able to apply TR-069 settings (including STUN and ACS server settings) to all of APs managed by Vigor3900 at the same time. Item Description Apply Settings to APs Check this box to make the settings in this page apply to VigorAP.

  • Page 423: Administrator Password

    Re-type the new password for confirmation. Apply Click this button to save the configuration and exit the web page. Enter all of the settings and click Apply. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 424: Configuration Backup

    Remote Server IP – Type the IP address of the remote server. Backup Selected Config – The configuration file will be stored with an existing file in local host. You must select Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 425 Config File Name – Type the configuration file name to be restored. Select File Use the Select button to locate the file for uploading to the Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 426 Such analysis page will show user defined settings result. In comparing the default settings with information displayed in this page, it will be convenient for administrator, user or RD member for debug possible error. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 427: Syslog / Mail Alert

    Remove all of the records. Auto Refresh Specify the interval of refresh time to obtain the latest status. The information will update immediately when the Refresh button is clicked. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 428 Status. Type the port number for the Syslog server. It is available when Remote or Both is selected as Status. Firewall Log Click Enable to make the firewall log recorded in the Syslog. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 429 Click Enable to make any user logging into the mail server. If you click Enable, you have to type user name and user password on the below fields. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 430 Click this button to save the configuration and exit the web page. Cancel Click it to discard the settings configured in this page. Enter all of the settings and click Apply. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 431: Time And Date

    Click this button to save the configuration and exit the web page. Cancel Click it to discard the settings configured in this page. Enter all of the settings and click Apply. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 432: Access Control

    This page allows you to open or close the Web User Interface of Vigor3900 by using Telnet, SSH, HTTP, HTTPS… and etc… Available parameters are listed as follows: Item Description Default: Disable Enable – Vigor router will auto logout based on the Auto-Logout specified time setting (e.g., 1, 3, 5 and 10 minutes).
  • Page 433 Click Enable to allow system administrator to login from the telnet and management the web page of the router. SSH Allow Click Enable to allow system administrator to login from the Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 434 Click this button to save the configuration and exit the web page. Cancel Click it to discard the settings configured in this page. Enter all of the settings and click Apply. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 435 Click this button to reset the record for IP blocked. Apply Click this button to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 436 Barrier attack from unknown people. Apply Click this button to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 437: Snmp Setup

    Choose one of the encryption methods listed below as the Length:8) authentication algorithm. Auth Password Type a password for authentication. The maximum length of the text is limited to 23 characters. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 438: Reboot System

    Click it to reset the router settings to default values. Then, click Reboot. Default Configurations Click it to reboot the router using the current configuration Reboot with Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 439 Modify the selected profile. Edit To edit a profile, simply select the one you want to modify and click the Edit button. The edit window will appear for Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 440 Specify how often the schedule will be applied. Once -The schedule will be applied just once Weekdays -Specify which days in one week should perform Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 441: Firmware Upgrade

    The following web page will guide you to upgrade firmware by using such page. Download the newest firmware from DrayTek's web site or FTP site. The DrayTek web site is www.DrayTek.com (or local DrayTek's web site) and the FTP site is ftp.DrayTek.com.
  • Page 442 Use the Select button to locate and select the new firmware. Upgrade Click it to perform the firmware upgrade. By clicking Check Update/Install Update, Vigor router can download/upgrade firmware directly from website (http://www.draytek.com.tw/ftp) automatically. Available parameters are listed as follows: Item Description Display current firmware version of Vigor router.
  • Page 443 Vigor router administrator/user can manually select file (.pat) to fix/modify the mistakes, bugs or error occurred on current firmware. Usually, such firmware with instant modifications can be obtained from DrayTek MyVigor Patch Server. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 444 Auto Firmware Patch is similar to Auto Firmware Upgrade. While configuring Mode as “Notify me when a new patch is available”, Vigor3900 will check if there is a new patch available on DrayTek server daily. When a new patch is available, Vigor3900 will pop-up notification window when Administrator logs in.

  • Page 445: App Signature Upgrade

    APP signature upgrade manually or configure the settings on this page to make Vigor router performing the APP signature automatically. Before upgrading APP signature to Vigor3900, open this page and specify a signature file by clicking Select. Later, click Upgrade to execute signature upgrade.
  • Page 446 Available parameters are listed as follows: Item Description Current Signature Date Display the date of current signature installed on Vigor3900. Server Signature Date Display the newest signature version recorded on server (myvigor.draytek.com or myvigoreu.draytek.com). Get the newest signature from MyVigor server Upgrade from Server (myvigor.draytek.com or myvigoreu.draytek.com).

  • Page 447: App Support List

    APP Support List displays all of the applications with versions supported by Vigor router. They are separated with types of IM, P2P, Protocol and Others. Each tab will bring out different items with supported versions. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 448: Diagnostics

    In some cases, a user may need to know some information about the router, such as static or dynamic databases, or other routing information. The Vigor3900 supports five functions, Routing Table, ARP Cache Table, DHCP Assignment Table, Sessions Table, Traffic Graph…..
  • Page 449 It may be needed by routing daemons. Iface Display the direction of such route represented with LAN/WAN profile (starting from LAN/WAN profile to LAN/WAN profile). Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 450 R (reinstate route for dynamic routing) D (dynamically installed by daemon or redirect) M (modified from routing daemon or redirect) A (installed by addrconf) C (cache entry) ! (reject route) Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 451: Arp Cache Table

    IP Address Display the IP address for different ARP cache. HW type Display the hardware type of the address from RFC 826. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 452 The system will display the records relating to the keyword. IP Address Display the IPv6 address of the neighbor. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 453: Dns Cache Table

    The record of domain name and the mapping IP address for answering the DNS query from LAN will be stored on Vigor router’s Cache temporarily. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 454: Dhcp Table

    Display the starting time that DHCP server is activated. End Date Display the end date that DHCP server is closed. End Time Display the end time that DHCP server is closed. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 455 Display the starting time that DHCP server is activated. End Time Display the end time that DHCP server is closed. Display the detailed information for DUID. DUID Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 456: Session Table

    Display the protocol of such NAT session used. State Display the actual state of the TCP connection. Display how long the conntrack entry has to live. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 457: Traffic Graph

    24 hours. Recent 7 Days – Display the information of memory operation about recent 7 days. Recent 4 Weeks – Display the information of memory Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 458 7 days. Recent 4 Weeks – Display the information of WAN operation about recent 4 weeks. Below show a graphic for CPU: Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 459: Web Console

    Click Diagnostics and click Web Console to pen the web page for typing commands used in console connection. A remote user can operate Vigor3900 from this web page without installing and opening other connection utility. This page allows you to trace the routes from router to the host. Simply type the IP address of the host in the box and click Start.

  • Page 460: Data Flow Monitor

    Display the records with 1 hour/24 hours/7 days recently. 24 Hours / Recent 7 Days Auto Refresh Specify the interval of refresh time to obtain the latest Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 461 This function can be used to capture the packets for analysis in the future. Moreover, the traffic data (obtaining from data flow monitor) also can be downloaded from Vigor router and stored in the host for future use. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 462 The packets captured by Vigor router will be stored in router as “packetmonitor.pcap”. Download the file and store on your host. Note A pop up window appears to show special notices for such function. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 463: User Status

    This page displays related information of user status, PPPoE Server, User Management, VPN Connection Management and SSL Proxy for reference. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 464: Central Management (Vpn)

    Vigor3900 can build virtual private network (VPN) between itself and any other TR-069 CPE by the function of central VPN management. In addition, it can be treated as a server (called CVM server) which can manage TR-069 CPE for periodical firmware upgrade, configuration backup and restoring configuration.
  • Page 465 Click it to save the configuration. Cancel Click it to discard the settings configured in this page. This page allows you to configure the basic settings for the VPN tunnel of Vigor3900. Available parameters are listed as follows: Item Description WAN Profile Choose a WAN interface profile to be used.

  • Page 466: Cpe Management

    Click it to save the configuration. Cancel Click it to discard the settings configured in this page. All the CPEs managed by Vigor3900 can be seen with icons from this page. This page allows you to manage the CPEs connected to Vigor3900. ...
  • Page 467 Edit button. A pop up window will appear. Simply change the name (for identification) and/or location manually. Detail – It displays the same content as the Edit button. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 468 Refresh – Click it to refresh current page. File Explorer – Click it to open a file explorer. The available firmware will be displayed in such page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 469 Status – Display current status of the profile has been finished or not. Refer to sections “How to manage the CPE (router) through Vigor3900?” and “How to upgrade CPE firmware through Vigor3900?” for more detailed information. Follow the steps below to create a new maintenance profile.
  • Page 470 Type the name of the maintenance profile. Device The drop down list will display all the devices detected by Vigor3900. Choose the one which will be applied with such new created profile. Usually, the name of the device will be assigned by Vigor3900 automatically.
  • Page 471 Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all the settings and click Apply. A new maintenance profile has been created. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 472 An easy method is offered to configure VPN settings for building VPN connection between Vigor3900 (treated as VPN server) and other Vigor router (treated as CPE device, i.e., VPN client). Available parameters are listed as follows: Item Description Display Screen Once the device is managed (controlled) by Vigor3900, it will be displayed on such screen automatically.
  • Page 473 Then, click Apply to save the settings. Such profile will be applied to the device connecting to Vigor3900 with VPN. Delete – Click it to delete the profile. The VPN between the Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 474 Interface – Display the WAN interface. Remote IP – Display the IP address of the remote end. Virtual Network – Display the IP address of Vigor3900. Up Time –Display the connection time of such VPN. RX(Packets) /TX(Packets) –Display the number of the packets exchanged in such VPN.

  • Page 475: Log/Alert

    To display the location of the selected CPE with a bird’s eye view, open Central Management>>VPN>>CPE Management and click the tab of Map. The Log page offers brief information to identify the CPE connected to Vigor3900. The Alert page offers brief information to identify the CPE connected to Vigor3900.

  • Page 476: Central Management (Ap)

    Vigor3900 can manage the access points supporting AP management via Central AP Management. AP Map is helpful to determine the best location for VigorAP in a room. A floor plan of a room is required to be uploaded first. By dragging and dropping available VigorAP icon...
  • Page 477 Menu items related to AP are General Setup, Dashboard, Status, WLAN Profile, Rogue AP, Total Traffic, Event Log, Station Number, AP Maintenance, Traffic Graph, Load Balance, AP Map, and Function Support List. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 478: General Setup

    Click Enable to activate polling interval setting. Polling Interval Type the time value (unit is second). The range is from 60 ~ 86400. Apply Click it to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 479: Dashboard

    This page shows VigorAP’s information about Event Log, Total Traffic or Station Number by displaying text and histogram. This page displays general information for the VigorAP managed by Vigor3900. Available parameters are listed as follows: Item Description Status Display current status (connected or disconnected) of the managed AP.
  • Page 480 Click it to open the configuration page of the selected VigorAP. The device name, Login username and Login password can be modified if required. Clear Such button allows you to remove the selected VigorAP. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 481: Wlan Profile

    WLAN profile. First, you have to check the box of the existing profile as the original profile. Second, click Clone. The following dialog will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 482 Click >> to move the device to Selected Device field. Then, click OK. The selected WLAN profile will be applied to the selected access point immediately. Later the access point will reboot. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 483 Note: The function of Auto Provision is available for the default WLAN profile. 3. After finished the general settings configuration, click Next to open the following page for 2.4G wireless security settings. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 484 5. When you finished the above web page configuration, click Finish to exit and return to the first page. The modified WLAN profile will be shown on the web page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 485: Rogue Ap

    That is, only the selected AP model will be shown on this page. AP’s MAC Address When an AP is selected, the MAC address related to that AP will be displayed automatically. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 486 Display the wireless signal strength of the access point. Last Detected Display the date and time that such access point was detected by Vigor router. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 487: Total Traffic

    Click it to refresh the web page immediately. Auto Refresh The system will refresh the web after specified time automatically. Display Specify how many records will be displayed in this page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 488: Station Number

    Config Backup can be performed to one AP at one time. Others functions (e.g., Config Restore, Firmware Upgrade, Remote Reboot) can be performed to more than one AP at one time by using Vigor3900. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 489 Specify the file and the path which will be used to perform Config Restore or Firmware Upgrade. Available Device Model – Display the model name connected to Vigor3900. Device name – Display the device name of AP connected to Vigor3900.

  • Page 490: Traffic Graph

    Available settings are explained as follows: Item Description AP Load Balance It is used to determine the operation mode when the system detects overload between access points. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 491 Apply Click it to save the configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 492: Ap Map

    Click it to review the layout for the selected AP map. Edit Click it to modify AP map. Select a radio button and click Edit to open the following web page. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 493 (unit: meter) for the length and width. Or use the ruler icon to draw a line on the map to calculate the dimensions. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 494 Check the box of Show AP Coverage on 5GHz/2.4 to display the signal coverage area. Adjust the AP on the map to find out which place can have the best wireless coverage. At last, click Save. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 495: Function Support List

    Click the Client tab to list the AP management functions that the Access Points support under different firmware versions. Click the Server tab to list the AP management functions that Vigor router supports under different firmware versions. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 496: Central Management (Switch)

    Vigor3900 series. VigorSwitch listed below Status means the switch is managed by Viogr3900; a VigorSwitch listed below New Switch means it is not managed by Vigor3900 yet. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 497 Status Status – Green icon means the VigorSwitch does connect to Vigor3900 and is managed by Vigor3900. Grey icon means Vigor3900 is detecting such VigorSwitch still. Red icon means Vigor3900 cannot access it to get status information for accessing password configuration of VigorSwitch is wrong or Telnet service is disabled.
  • Page 498 Add – Click it to make the selected VigorSwitch be managed by Vigor3900. Such page displays the hierarchy of VigorSwitch(es) managed under Vigor3900. Note: If the hierarchy display is incorrect, please access into the web user interface of VigorSwitch and enable the function of LLDP (e.g., Configuration >>DDLP>>LLDP General Setup in VigorSwitch 2261).

  • Page 499: Profile

    This page will show general information, such as name, group, IP address, MAC address, model and password of VigorSwitch only when it connects to Vigor3900 series. By clicking the edit button, a profile setting page for that switch will be shown. Note that each profile represents one VigorSwitch.
  • Page 500 VigorSwitch. New Switch Status –Green icon means the VigorSwitch does connect to Vigor3900 and is managed by Vigor3900. Grey icon means Vigor3900 is detecting such VigorSwitch still. Red icon means Vigor3900 cannot access it to get status information for accessing password configuration of VigorSwitch is wrong or Telnet service is disabled.
  • Page 501 Then, click the Port tab to change the port setting if required. After finished the port configuration, click the VLAN tab to modify settings relevant to VLAN. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 502 Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 503: Group

    Choose the switches you want to group and click the button “” to move the selected devices onto the field of Member Switch. Devices under Member Switch will be grouped under such group profile. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 504: Maintenance

    Description Action Type Five actions including configuration backup, configuration restore, configuration restore to router and switch, remote reboot and factory reset are offered by Vigor3900 to perform on VigorSwitch. Select File Click to find out the required file. Such option is available when Config Restore To Router / Config Restore To Router And Switch is selected as Action Type.

  • Page 505: Support List

    This page lists all models of VigorSwitch which can be managed by Vigor3900 via Switch Management. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 506: External Devices

    Note: Only DrayTek products can be detected by this function. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 507: Product Registration

    Please refer to section 2.3 Register Vigor Router for more detailed information. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 508 This page is left blank. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 509: Chapter 5: Trouble Shooting

    If not, it means that there is something wrong with the hardware status. Simply back to “1.3 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 510 In the following window, click Change adapter settings. Icons of network connection will be shown on the window. Right-click on Local Area Connection and click on Properties. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 511 Select Internet Protocol Version 4 (TCP/IP) and then click Properties. Select Obtain an IP address automatically and Obtain DNS server address automatically. Finally, click OK. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
  • Page 512 Double click on the current used Mac OS on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 513: Pinging The Router From Your Computer

    Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 514: Checking If The Isp Settings Are Ok Or Not

    Open Online Status to check current network status. Be careful to check if the settings coming from your ISP have been typed correctly or not. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 515: Backing To Factory Default Setting If Necessary

    5 seconds. When you see the ACT LED blinks rapidly, please release the button. Then, the router will restart with the default configuration. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

  • Page 516: Contacting Draytek

    ISP technical support representative to help you for configuration. Also, if the router still cannot work correctly, please contact your dealer for help. For any further questions, please send e-mail to support@draytek.com. Vigor3900 Series User’s Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...

Table of Contents
