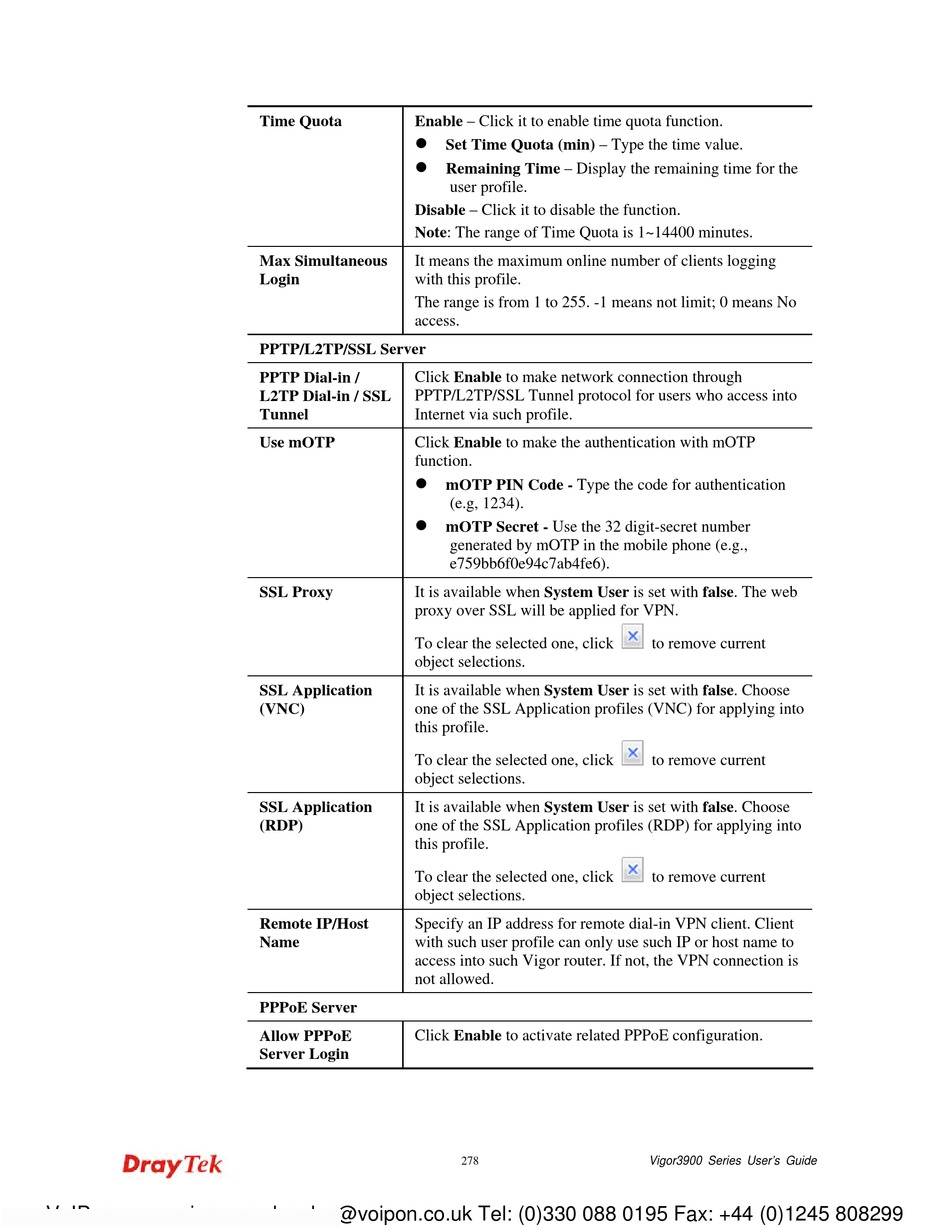

Draytek Vigor3900 User Manual page 286

VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299
Time Quota Enable – Click it to enable time quota function.


Disable – Click it to disable the function.
Note: The range of Time Quota is 1~14400 minutes.
Max Simultaneous It means the maximum online number of clients logging
Login with this profile.
The range is from 1 to 255. -1 means not limit; 0 means No
access.
PPTP/L2TP/SSL Server
PPTP Dial-in / Click Enable to make network connection through
L2TP Dial-in / SSL PPTP/L2TP/SSL Tunnel protocol for users who access into
Tunnel Internet via such profile.
Use mOTP Click Enable to make the authentication with mOTP
function.


SSL Proxy It is available when System User is set with false. The web
proxy over SSL will be applied for VPN.
To clear the selected one, click
object selections.
SSL Application It is available when System User is set with false. Choose
one of the SSL Application profiles (VNC) for applying into
(VNC)
this profile.
To clear the selected one, click
object selections.
SSL Application It is available when System User is set with false. Choose
(RDP) one of the SSL Application profiles (RDP) for applying into
this profile.
To clear the selected one, click
object selections.
Remote IP/Host Specify an IP address for remote dial-in VPN client. Client
Name with such user profile can only use such IP or host name to
access into such Vigor router. If not, the VPN connection is
not allowed.
PPPoE Server
Allow PPPoE Click Enable to activate related PPPoE configuration.
Server Login
Set Time Quota (min) – Type the time value.
Remaining Time – Display the remaining time for the
user profile.
mOTP PIN Code - Type the code for authentication
(e.g, 1234).
mOTP Secret - Use the 32 digit-secret number
generated by mOTP in the mobile phone (e.g.,
e759bb6f0e94c7ab4fe6).
278
to remove current
to remove current
to remove current
Vigor3900 Series User's Guide
