Rack-Mounted Installation - Draytek Vigor3900 User Manual

1 . 2 . 2 R a
1 . 2 . 2 R a
Vigor3900 Series User's Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299
c k - M o u n t e d I n s t a l l a
c k - M o u n t e d I n s t a l l a

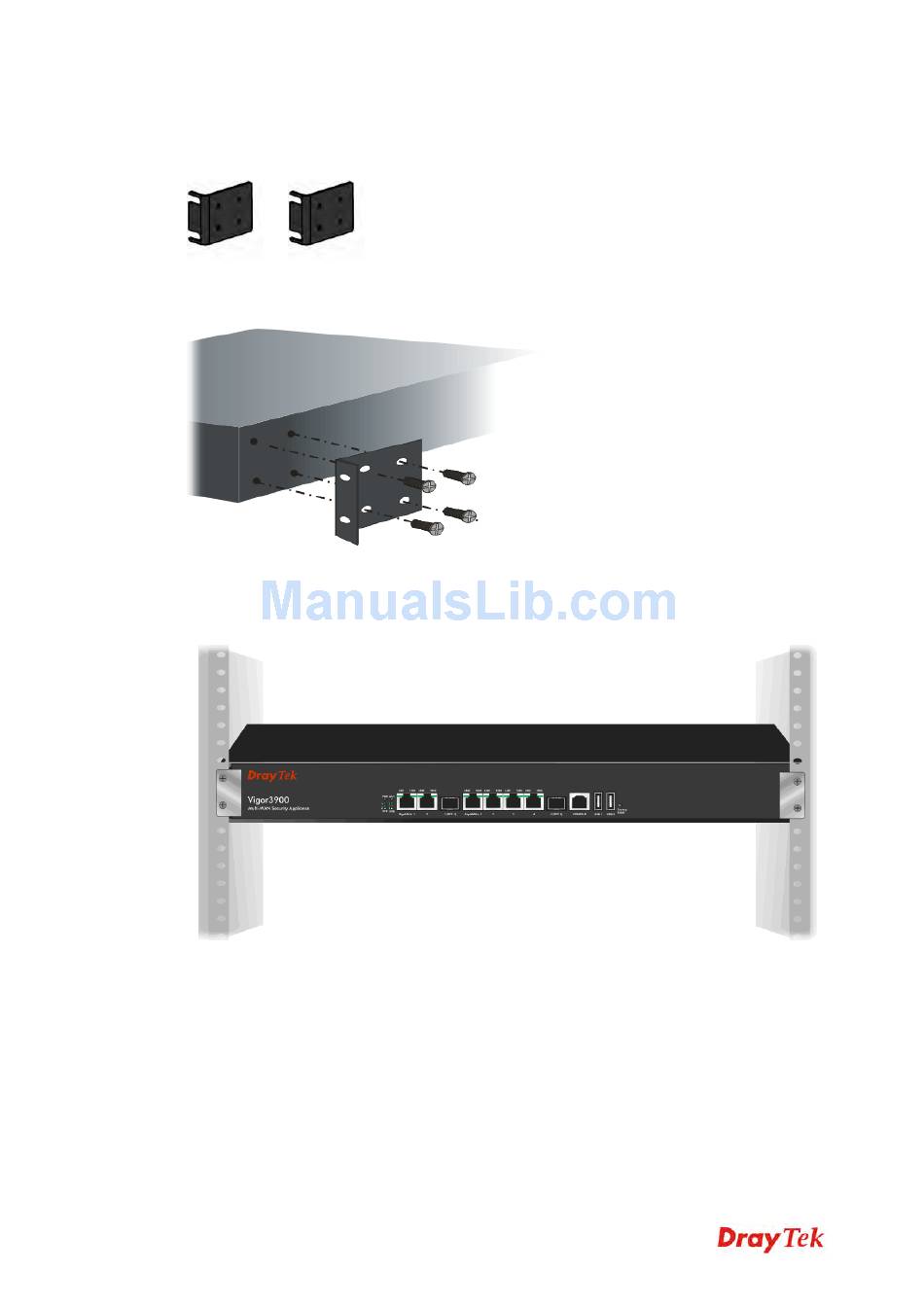

The Vigor3900 Series can be mounted on the wall by using standard brackets shown below.
Attach the brackets to the chassis of a rack. The second bracket attaches the other side of the
chassis.
After the bracket installation, the Vigor3900 Series chassis can be installed in a rack by using
four screws for each side of the rack.
D D e e s s k k t t o o p p T T y y p p e e I I n n s s t t a a l l
Rubber pads are included with the Vigor3900 Series. These rubber pads improve the air
circulation and decrease unnecessary rubbing on the desktop.
