Restoring the Gateway's Current Configuration Remotely

If you backed up the Gateway's configuration settings to a TFTP server, use the following
procedure to restore the settings remotely.
Note: Restoring the Gateway's settings from a configuration file erases all of the
Gateway's current settings.

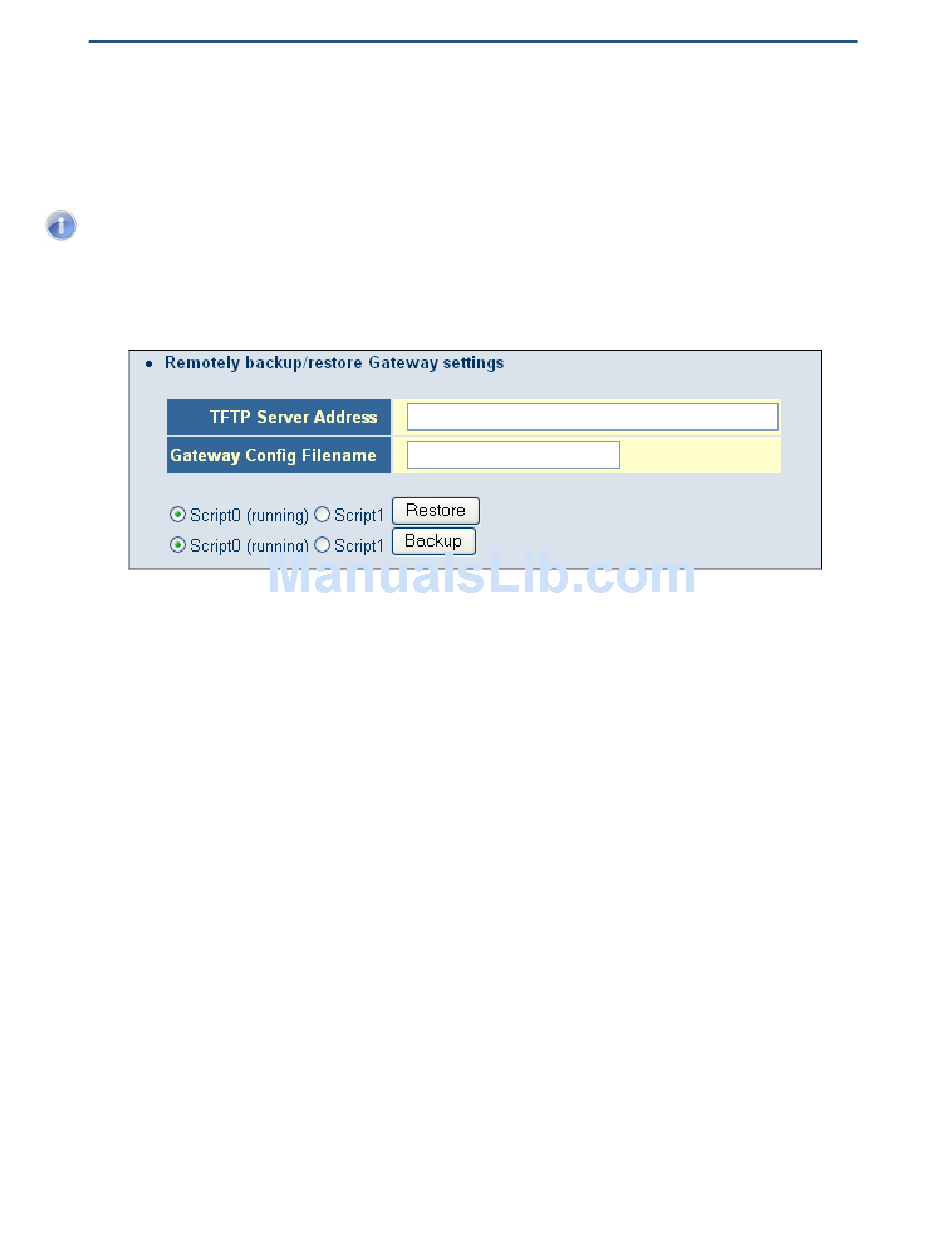

1. Under Remotely backup/restore Gateway settings, enter the IP address of the TFTP
server in the TFTP Server Address field.
2. In the Gateway Config Filename field, enter the name of the configuration file.
3. If one or more scripts appear to the left of the Restore button, select the script you want to
restore. (running) appears next to the script that is currently running.
4. Click the Restore button. The message in Figure 72 appears.
5. Click OK to override the Gateway's current configuration with the one in the configuration
file or click No to not restore the configuration from the file.
