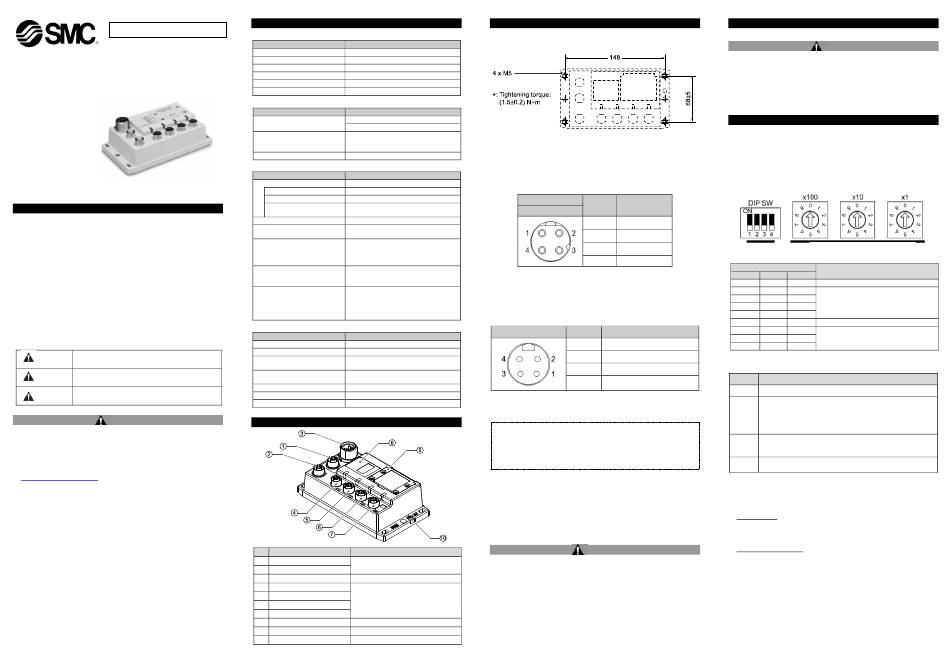

EX500-TF2Z176EN
ORIGINAL INSTRUCTIONS
Instruction Manual
TM

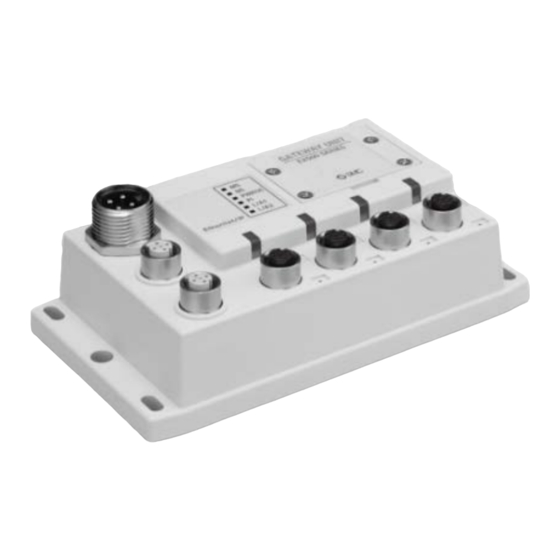

Gateway unit – EtherNet/IP
compatible
Series EX500-GEN2
The intended use of the Gateway unit is for connection to SI units and
input devices for the control of pneumatic valves.
1 Safety Instructions
These safety instructions are intended to prevent hazardous situations
and/or equipment damage. These instructions indicate the level of
potential hazard with the labels of "Caution," "Warning" or "Danger."
They are all important notes for safety and must be followed in addition
*1)
to International Standards (ISO/IEC)
, and other safety regulations.
*1)
ISO 4414: Pneumatic fluid power - General rules relating to systems.
ISO 4413: Hydraulic fluid power - General rules relating to systems.
IEC 60204-1: Safety of machinery - Electrical equipment of machines.
(Part 1: General requirements)
ISO 10218-1: Manipulating industrial robots -Safety. etc.
• Refer to product catalogue, Operation Manual and Handling
Precautions for SMC Products for additional information.
• Keep this manual in a safe place for future reference.
Caution indicates a hazard with a low level of risk which, if
Caution
not avoided, could result in minor or moderate injury.
Warning indicates a hazard with a medium level of risk
Warning
which, if not avoided, could result in death or serious injury.
Danger indicates a hazard with a high level of risk which, if
Danger
not avoided, will result in death or serious injury.
Warning
• Always ensure compliance with relevant safety laws and
standards.
• All work must be carried out in a safe manner by a qualified person in
compliance with applicable national regulations.
• Refer to the operation manual on the SMC website (URL:
https://www.smcworld.com) for more Safety instructions.
2 Specifications
General specifications
Item
Specifications
o
Ambient operating temperature
-10 to +50
C
Ambient humidity range
35 to 85% RH (no condensate)
Ambient storage temperature
-20 to +60
o
C
Withstand voltage
1000 VAC applied for 1 minute
Insulation resistance
500 VDC, 2 MΩ or more
Weight
550 g
Electrical specifications
Item
Specifications
Control and Input: 24.0 VDC ±10%
Power supply voltage
Solenoid valves: 24.0 VDC +10% / -5%
Power supply for control and input: 6.2 A
Rated Current
(GW current consumption: 200 mA max.).
Power supply for solenoid valve: 4 A
Number of Inputs / Outputs
128 Inputs / 128 Outputs
Communication specifications
Item
Specifications
Protocol
Ethernet (IEEE802.3)
Media
100BASE-TX (CAT5 or more)
Communication speed
10/100 Mbps (Automatically selected)
Full duplex / half duplex (autumatically
Communication method
selected)
Fieldbus protocol
EtherNet/IP
TM
Input: 20 bytes (assembly instance: 100)
I/O Message
Output: 20 bytes (assembly instance: 150)
Setting of specified address by DHCP
server or internal switch.
IP address setting range
(192.168.0.1 to 192.168.0.254, 192.168.1.1
to 192.168.1.254)
Vendor ID: 7 (SMC Corp.)
Device information
Product type: 12 (Communication adapter)
Product code: 198
TM
Quick Connect
DLR
Applicable function
Web server (Applicable browser: Internet
Explorer6 to 11, Firefox28.0 to 31.0,
Google Chrome 36.0 to 37.0)
Low level bus specifications
Item
Specifications
Number of inputs / outputs
128 Inputs / 128 Outputs
Applicable system
Gateway distribution system 2 (128 point)
4 (input: Max. 32 points / Output: Max. 32
Number of branch ports
points per branch)
16 max. (input unit: 2 pcs. / SI unit: 2 pcs.
Number of connected slaves
per branch)
Power supply for control and input
24 VDC, Max. 1.5 A per one branch port
Power supply for Solenoid valve
24 VDC, Max. 1.0 A per one branch port
Branch cable length
Total length 20 m or less per branch
3 Name and function of parts
No
Part
Description
1
Port1 / IN connector
TM
Connection to EtherNet/IP
2
Port2 / OUT connector
3
Power supply connector
Connection for power supply.
4
Branch port A (COM A)
Connection to SI units (with manifold
5
Branch port B (COM B)
valves) or input units using a branch
6
Branch port C (COM C)
cable.
7
Branch port D (COM D)
8
LED Display
Displays the unit status.
9
Switch cover
Switches for setting address, etc.
10 FE terminal (M3)
Functional Earth (FE).
4 Installation
4.1 Direct mounting
Secure in position using 4 x M5 screws, 15 mm minimum thread length.
4.2 Wiring connections
• Communication Connector
Select the appropriate Ethernet cables to mate with the connectors
on the SI unit. The EtherNet/IP connection has 2 ports, PORT 1 and
PORT 2, and both ports can be used for connection.
M12 4-pin Socket (D-coded)
Connector
Pin No.
PORT 1 / PORT 2
1
2
3
4
• Power Supply Connector
Connect the power supply to the power supply connector on the
Gateway unit. With this cable, power is supplied to the output devices
(such as solenoid valve) and the input devices and for control.
7/8 inch, 4-pin Plug
Connector
Pin No.
1
24 VDC (solenoid valves)
2
24 VDC (control and input)
3
0 V (control and input)
4
0 V (solenoid valves)
• Both single and two power supply systems can be adopted, however
the wiring should be made separately (for solenoid valves / outputs
and for input and control) for either system.
The M12 connector cable has two types, Standard M12 and
SPEEDCON compatible. If both plug and socket have SPEEDCON
connectors, the cable can be inserted and connected by turning it a
1/2 rotation.
A standard connector can be connected to a SPEEDCON connector.
• Branch Connector
Connect SI units (solenoid valves) and input devices to the Branch
port connectors (COM A - D) using an M12 (8-pin) connector cable
(EX500-AC###-S#P#).
As each cable contains power supply wiring, there is no need to
supply power to the SI unit (solenoid valves) or input devices
separately.
Warning
• Be sure to fit a seal cap (EX9-AWTS) on any unused connectors.
line.
Proper use of the seal cap enables the enclosure to maintain IP65
specification. Tightening torque: 0.1 N•m.
4.3 Ground Connection
• Connect the FE terminal (M3) to ground.
• Individual grounding should be provided close to the product with a
short cable to assure the safety and noise resistance of the system.
• Resistance to ground should be 100 Ω or less.
4 Installation (continued)
4.4 Environment
• Do not use in an environment where corrosive gases, chemicals, salt
water or steam are present.
• Do not install in a location subject to vibration or impact in excess of
the product's specifications.
• Do not mount in a location exposed to radiant heat that would result
in temperatures in excess of the product's specifications.
5 Setting
5.1 Switch setting
• Open the switch cover to set the switches using a small flat blade
screwdriver.
• The power supply should be turned OFF while setting the switches.
• Whenever the switch cover has been opened, close the cover and
tighten the screws to the specified tightening torque.
Recommended tightening torque: 0.6 N•m.
Signal name
TX+
RX+
TX-
5.2 IP address setting
RX-
Setting
x100
x10
X1
0
0
0
0
0
1
0
0
2
:
:
:
2
5
4
2
5
5
2
5
6
Signal name
:
:
:
9
9
9
The default setting is 0.
5.3 DIP switch setting
1
Reserved (fixed to OFF).
HOLD / CLEAR setting
ON: If EtherNet/IP communication error occurs, the output
2
will be retained.
OFF: Set the output condition during EtherNet/IP error via
network. Cleared when this is not set.
Mode setting:
3
ON: Gateway distribution setting (64 points).
OFF: Gateway distribution setting 2 (128 points).
Manual setting of IP address: 192.168.Y.X
4
(Y: OFF_0, ON_1)
The default setting is OFF.
*1: Remote control
The mode to respond to the commands below of BOOTP/DHCP
Server provided by Rockwell Automation.
Enable DHCP
Information
including
BOOTP/DHCP Server. If the power is supplied again in this state,
EX500 tries to obtain the information including IP address again.
Disable BOOTP/DHCP
Information including IP address is not obtained from BOOTP/DHCP
Server. Previous setting can be held if power is supplied under this
condition.
*2: Manual setting of IP address
IP address is set within the range of 192.168.0.1 to 192.168.0.254,
192.168.1.1 to 192.168.1.254.
*3: DHCP mode
Obtain IP address from DHCP Server. Obtained IP address is lost
when power supply is cut.
Default setting
"Enable DHCP" at "Remote control".
Warning
IP address setting
Description
*1
Remote control (DHCP)
Manual setting of IP address:
192.168.Y.X
(X = 1-254)
*2
*3
DHCP mode
Reserved
Description
IP
address
can
be
obtained
from
Page 1 of 2
