To enable port triggering:
1. In the Special Application menu, check Enable Triggering if it is unchecked and click the
Apply button. The Trigger Table becomes available.
2. Click the Add button below Trigger Table. The Trigger menu appears (see Figure 63).
3. Complete the fields in fields Trigger menu (see Table 31).
4. Click Apply. (Or click Back to return to the Trigger menu or Cancel to cancel any
selections you made.) If you clicked Apply, the trigger is added to the Trigger Table.
5. To configure additional triggers (up to 20), repeat steps 1 through 4. When you finish, click
Apply in the Special Applications menu to save your settings.
6. To change the settings for a trigger, click the radio button to the left of the trigger you want
to change and click the Edit button. When the Trigger menu appears, edit the settings as
necessary (see Table 31) and click Apply. Click Apply in the Special Application menu to
save your settings.
7. To delete a trigger, click the radio button to the left of the trigger you want to delete and
click the Delete button. No precautionary message appears before you delete a trigger.
Click Apply in the Special Application menu to save your settings.
SMCD3GN2 Wireless Cable Modem Gateway Administrator Manual
錯誤! 尚未定義樣式。

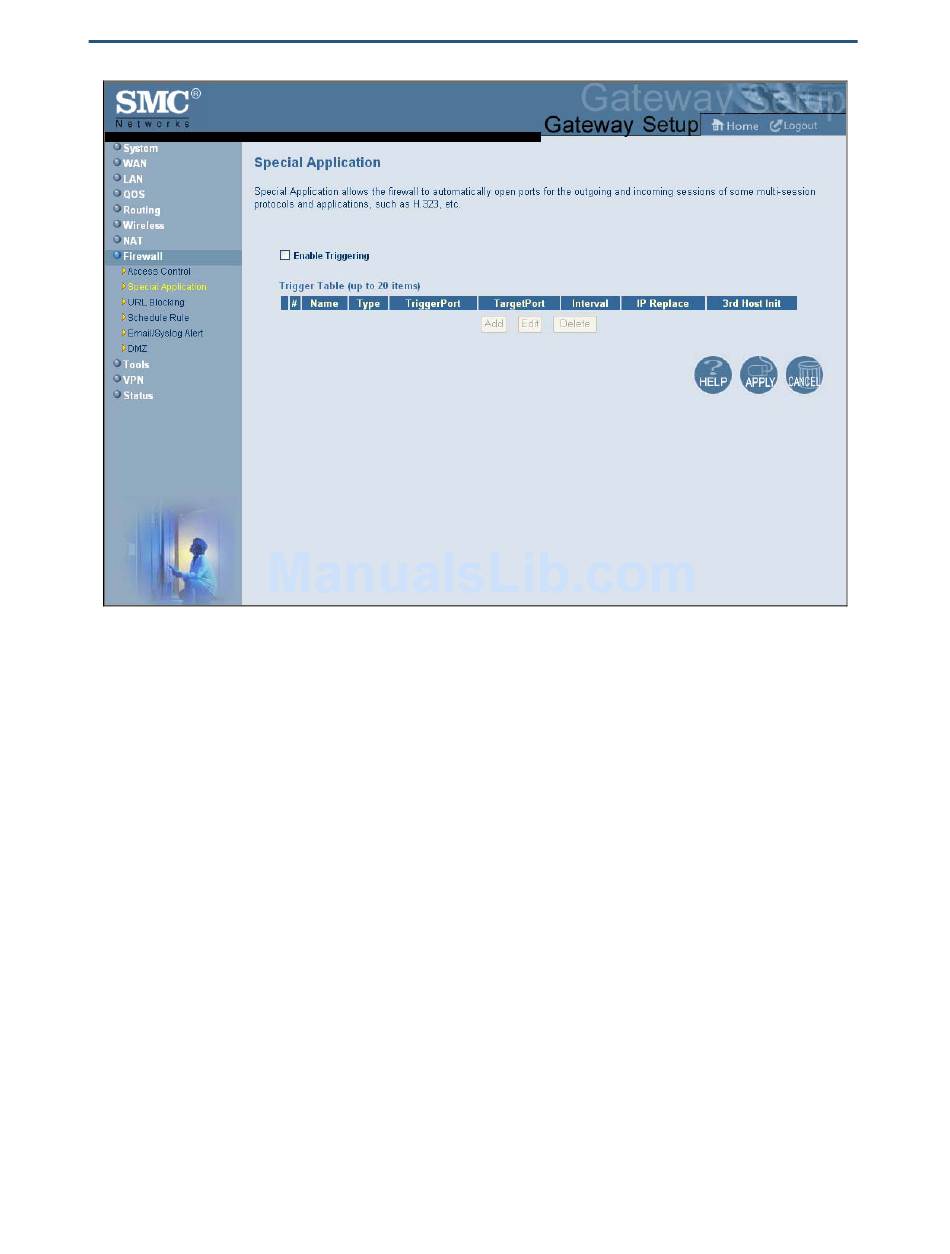

Figure 62. Special Application Menu
