SMC Networks SMCD3GN3 Administrator User Manual page 70

By default, the Gateway uses strict priority. To change to weighted priority:
1. For Queue Type, select Weighted Priority. The options in Figure 35 appear.
2. For Weight Base, select a queue weight to ensure that some sets of queues get higher
thresholds than others. Queue weight directs the Gateway to set the queue thresholds
proportionately. Choices are 8 or 10. Queues with a weight of 10 are longer than those with
a queue weight of 8.
3. For each Gateway queue, select a weight. Each weight corresponds to a percentage of
consumed bandwidth, as shown in the % of Bandwidth column.
4. When you finish, click Apply.
SMCD3GN2 Wireless Cable Modem Gateway Administrator Manual
錯誤! 尚未定義樣式。

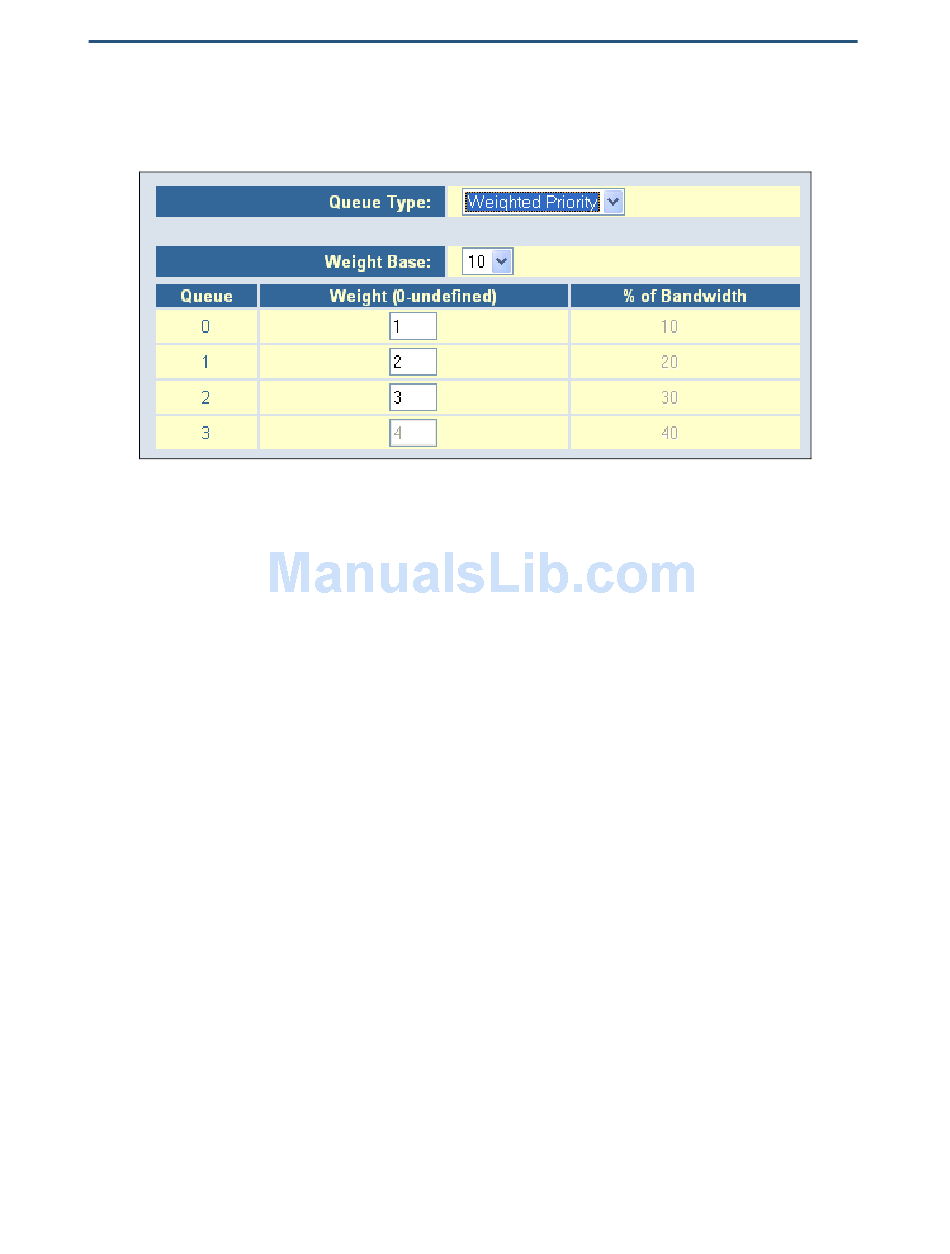

Figure 35. Weighted Priority Options
70
