1-to-1 Mapping Menu

Using the 1-to-1 Mapping menu, you can use the NAT to perform 1-to-1 mapping between
global IP addresses on the cable modem WAN interface and the private IP address on the
LAN.
To access the 1-to-1 Mapping menu, click NAT in the menu bar and then click the 1-to-

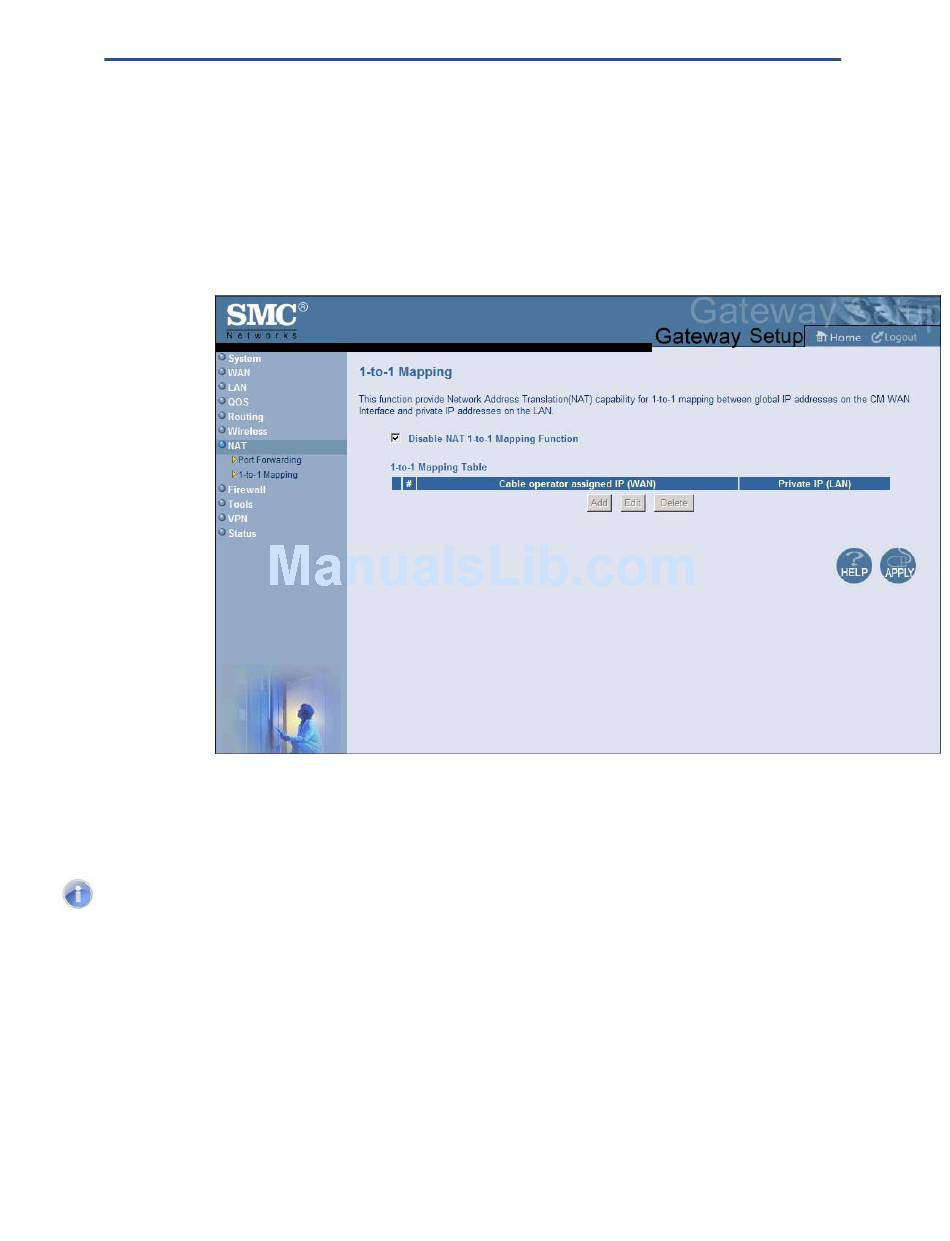

Figure 54 shows an example of the menu. By default, 1-to-1 mapping is disabled. To enable
it, uncheck Disable NAT 1-to-1 Mapping Function and click Apply. To disable it, check
Disable NAT 1-to-1 Mapping Function and click Apply.
Note: The 1-to-1 Mapping submenu is not available in the menu bar if Enable
NAT Module is not checked in the NAT Settings menu (see page 91).
SMCD3GN2 Wireless Cable Modem Gateway Administrator Manual
錯誤! 尚未定義樣式。
1 Mapping submenu.
106
