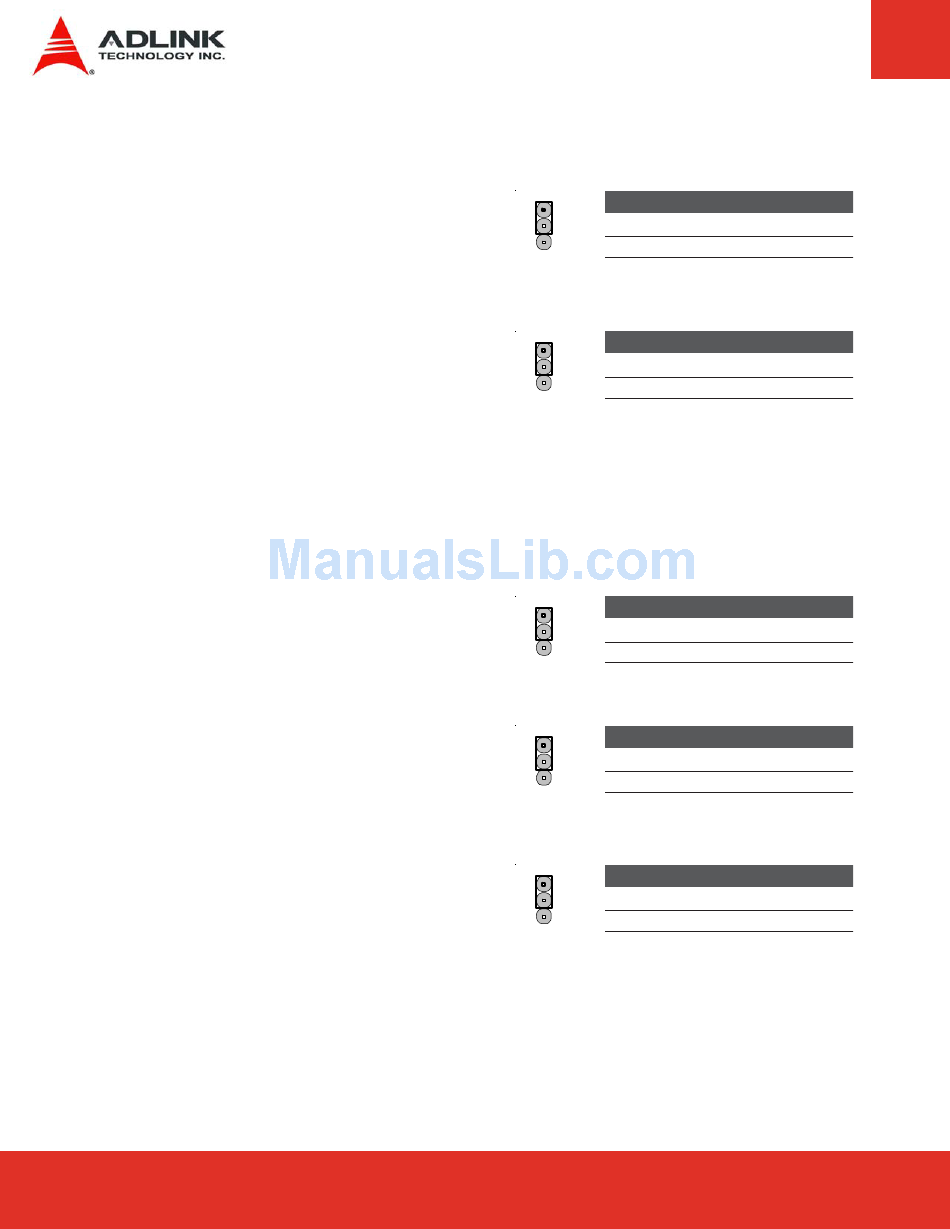

6.17 Jumper Settings

JP1:
LPC Port 80
Free Run: BIOS will complete the boot process
Single Step: BIOS will execute step-by-step by
pressing SW2 button
JP2:
BIOS Selection
Enable:
Use the BIOS onboard module
Disable:
Use the BIOS on Express-BASE
(For modules with LPC BIOS only.)
External LPC EEPROM Address Selection
JP3 & JP4 configure the address of the external EEPROM connected to the LPC Debug header (CN32)
JP3:
EEPROM Address A0 Selection
JP4:
EEPROM Address A1 Selection
JP5:
CMOS Clear
To clear CMOS, shut down the power and short
pins 2 and 3 (shorts VBAT to ground).
Page 30
Jumper
1
1-2
2
2-3
3
Jumper
1
1-2
2
2-3
3
Jumper
1
1-2
2
2-3
3
Jumper
1
1-2
2
2-3
3
Jumper
1
1-2
2
2-3
3
NOTE:
<<<<
indicates default setting
Express-BASE User's Manual
Status
Free Run
<<<<
Single Step
Status
Enable
<<<<
Disable
Status
High "1"
<<<<
Low "0"
Status
High "1"
<<<<
Low "0"
Status
Normal
<<<<
Clear CMOS
