ADLINK Technology com express User Manual page 29

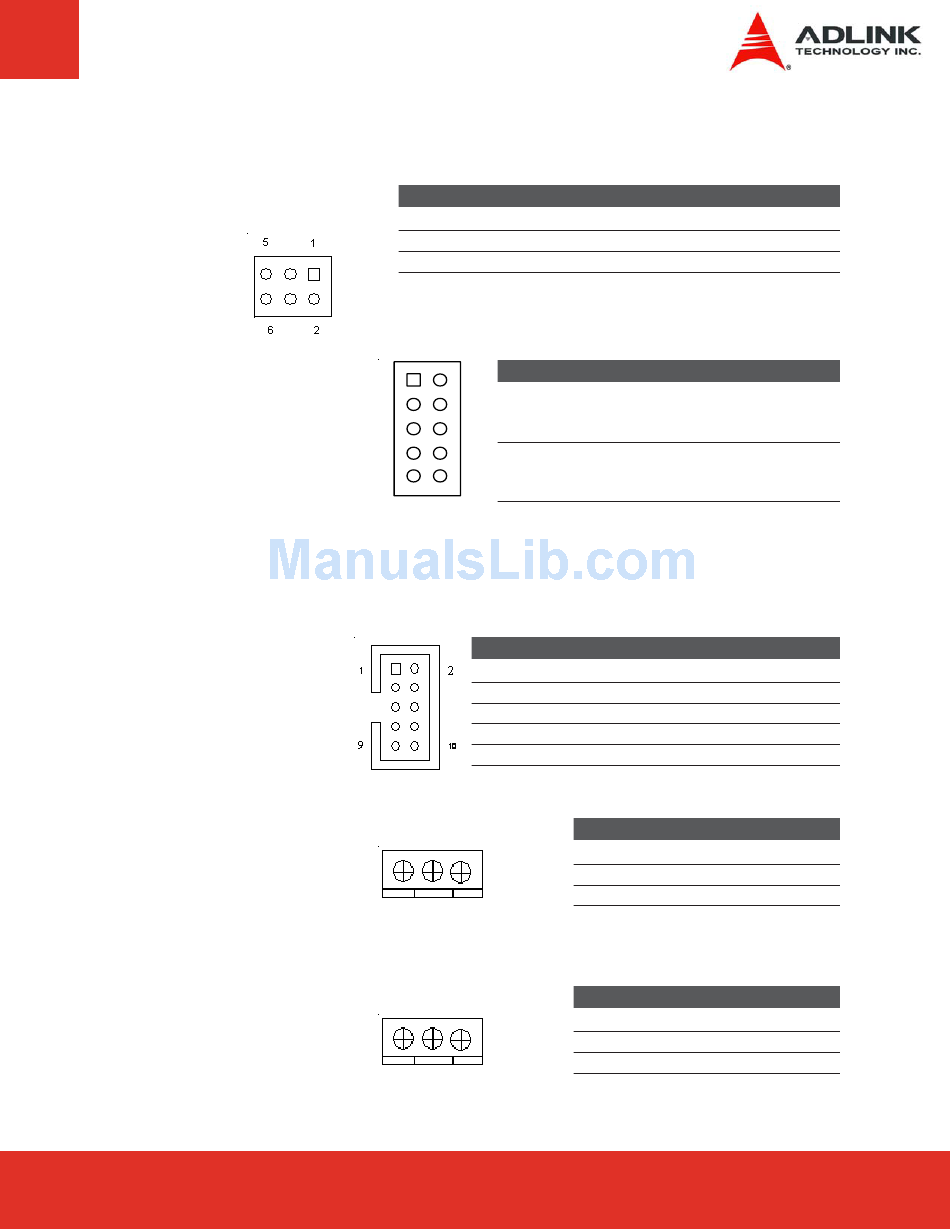

CNY6: PWR_OK Config
Jumper
CNY7: Power Up Config
Jumper
*The Super I/O detects a power button event using the 'PSIN' pin. When a power button event occurs, the power-
up logic of the Super I/O sets 'PSOUT#' low and asserts 'PWRBTN#' of the module's chipset. The Super I/O also
sets the 'PWRCTL#' pin to low, which asserts the 'PS_ON#' signal and switches on the ATX power supply.
CNY9: Smart Battery
Connects to Smart Battery
module
CNY10: Extended Power Connector
CNY11: Extended Power Connector
Express-BASE User's Manual
Jumper Status
1-2 Add 3.3V Pullup with 10K to signal PWR_OK
3-4 Connect PWRGOOD of ATX power supply
5-6 Connect PWRGOOD of onboard DCDC regulator
Jumper
1 10
1-10
5-6
8-9
2-9
3-8
5 6
4-7
Pin Signal
1 I2C_CK
2 I2C_DAT
3 PWRBTN#
4 BATLOW#
5 PS_ON#
NOTE:
Status
Power-up by module
Power-up by Super I/O*
Pin Signal
6 SUS_S45#
7 +12V
8 +5VSB
9 SUS_STAT#
10 GND
Pin Signal
1 +12V
2 +12V
3 +12V
Pin Signal
1 GND
2 GND
3 GND
<<<< indicates default setting
<<<<
<<<<
Page 29
