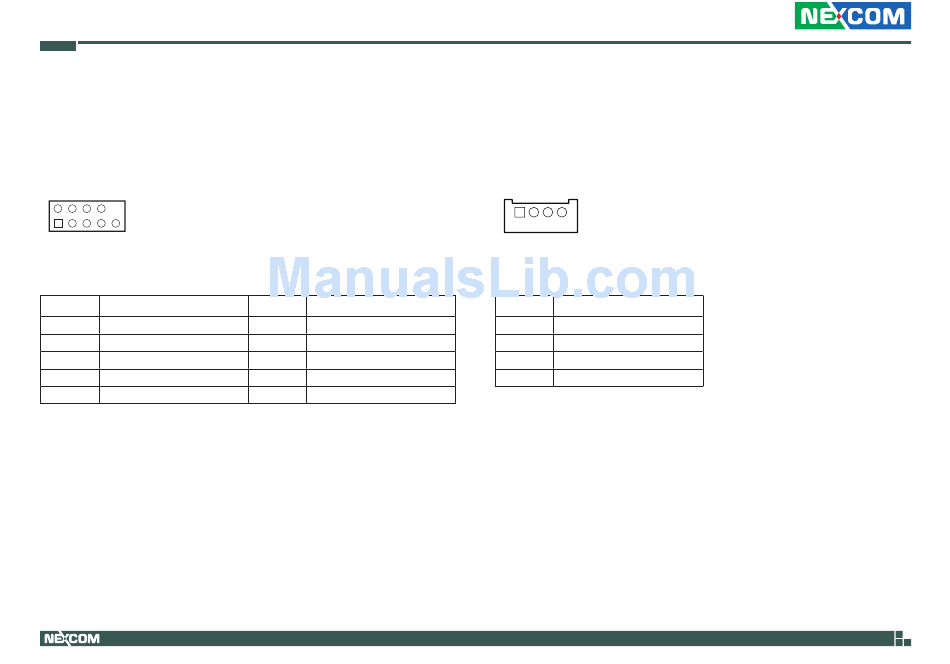

Chapter 2: Jumpers and Connectors

System Panel Header

Connector type: 2x5 10-pin header
Connector location: PANEL1
2
1 9
Pin Definition
1 HDLED+
3 HDLED-
5 GND
7 RESET#
9 GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 PLED+
4 PLED-
6 PWRBTN#
8 GND

2W Audio AMP Output Wafer

Connector type: 1x4 4-pin header
Connector location: SPEAKER1
1 4
Pin Definition
1 OUTLN
2 OUTLP
3 OUTRP
4 OUTRN
