Chapter 2: Jumpers and Connectors

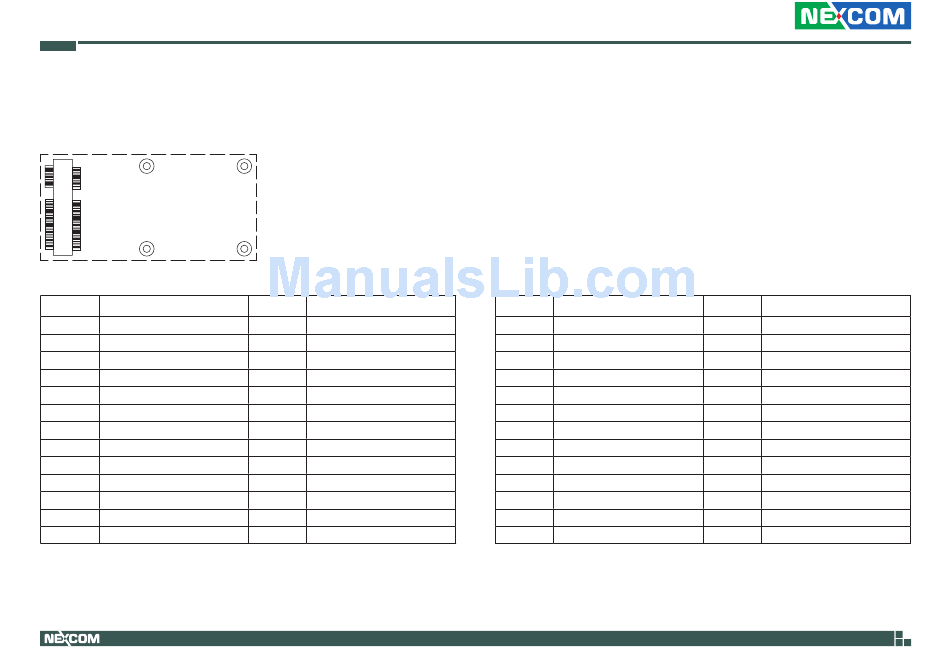

Mini-PCIe/mSATA Connector

Connector location: MPCIE1 and MSATA1
1 2
51 52
Pin Definition
1 WAKE#
3 COEX1
5 COEX2
7 CLKREQ#
9 GND6
11 REFCLK-
13 REFCLK+
15 GND5
17 REV10/UIM_C8
19 REV9/UIM_C4
21 GND4
23 PERn0
25 PERp0
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 3.3VSB_3
4 GND12
6 1.5V_3
8 UIM_PWR
10 UIM_DATA
12 UIM_CLK
14 UIM_RESET
16 UIM_VPP
18 GND11
20 W_DISABLE#
22 PERST#
24 +3.3VSB_1
26 GND10
Pin Definition
27 GND3
29 GND2
31 PETn0
33 PETp0
35 GND0
37 GND13
39 +3.3VSB_4
41 +3.3VSB_5
43 GND14
45 REV4
47 REV3
49 REV2
51 REV1
28
Pin Definition
28 1.5V_2
30 SMBCLK
32 SMBDAT
34 GND9
36 USB_D-
38 USB_D+
40 GND8
42 LED_WWAN#
44 LED_WLAN#
46 LED_WPAN#
48 1.5V_1
50 GND7
52 3.3VSB_2
