Chapter 3: BIOS Setup

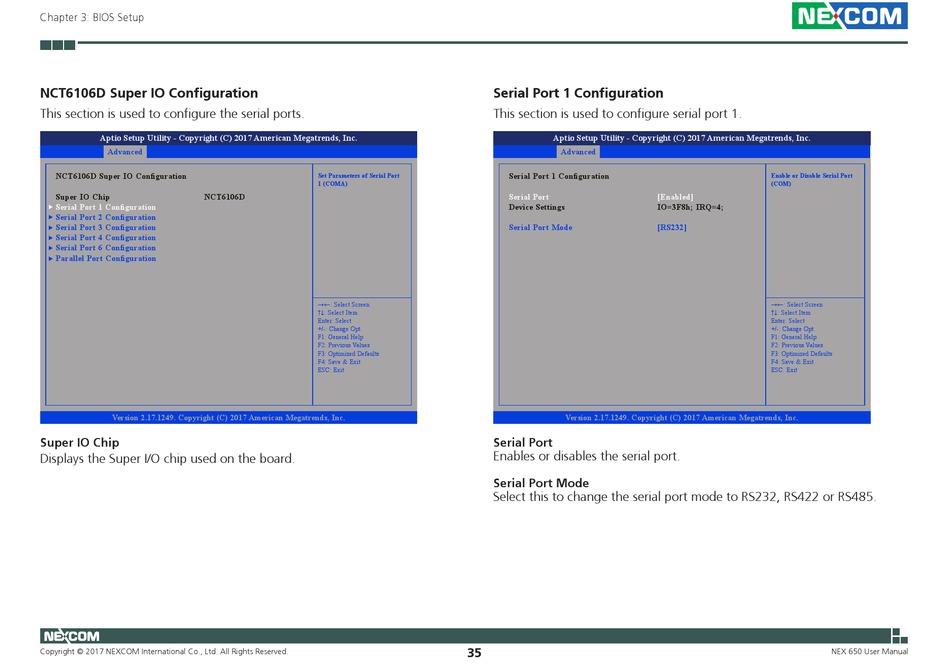

NCT6106D Super IO Configuration

This section is used to configure the serial ports.
Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc.
Advanced
NCT6106D Super IO Configuration
NCT6106D
Super IO Chip

Serial Port 1 Configuration


Serial Port 2 Configuration

Serial Port 3 Configuration

Serial Port 4 Configuration

Serial Port 6 Configuration

Parallel Port Configuration

Version 2.17.1249. Copyright (C) 2017 American Megatrends, Inc.
Super IO Chip
Displays the Super I/O chip used on the board.
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Serial Port 1 Configuration
This section is used to configure serial port 1.
Set Parameters of Serial Port
1 (COMA)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port
Enables or disables the serial port.
Serial Port Mode
Select this to change the serial port mode to RS232, RS422 or RS485.
35
Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
[Enabled]
Serial Port
Device Settings IO=3F8h; IRQ=4;
Serial Port Mode [RS232]
Version 2.17.1249. Copyright (C) 2017 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
