NEXA MODULAR GB2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
INSTALLATION OF THE DOOR PANEL

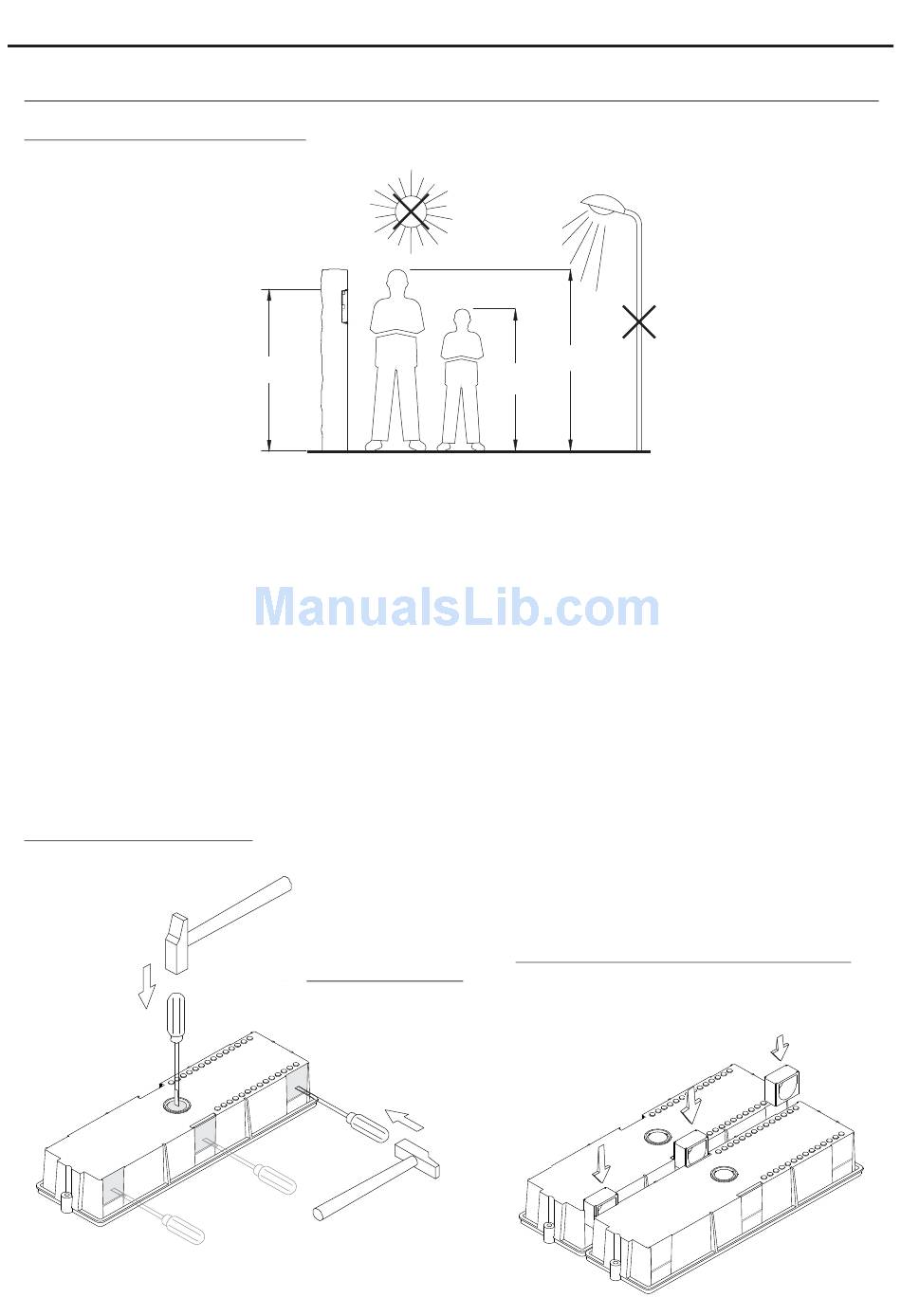

Positioning the embedding box:

Make a hole in the wall to position the top of the door panel at a height of 1.65m.
Hole dimensions depend on the type of door panel.
The door panel has been designed to be used under most environmental conditions. It is however advisable to
take extra precautions to prolong its service life (shields, covered areas, etc.). To obtain optimum video door
entry system image quality, avoid direct contact from light sources (sunshine, street lights, etc.)

Preparing the cable entry:

1650
M dul s o e 1
Model N CE 90C V
W (width) 99
H (height) 135,5
D (depth) 40
Break through the hole to allow entry of cables through the bottom part of
the embedding box.
In the case of door panels with more than one embedding box, break through
the side holes and join the embedding boxes using cable grommets.
1850
1450
2
S N CEV90C
99
328 mm.
238
56
3
CEV90
99 mm.
56 mm.
