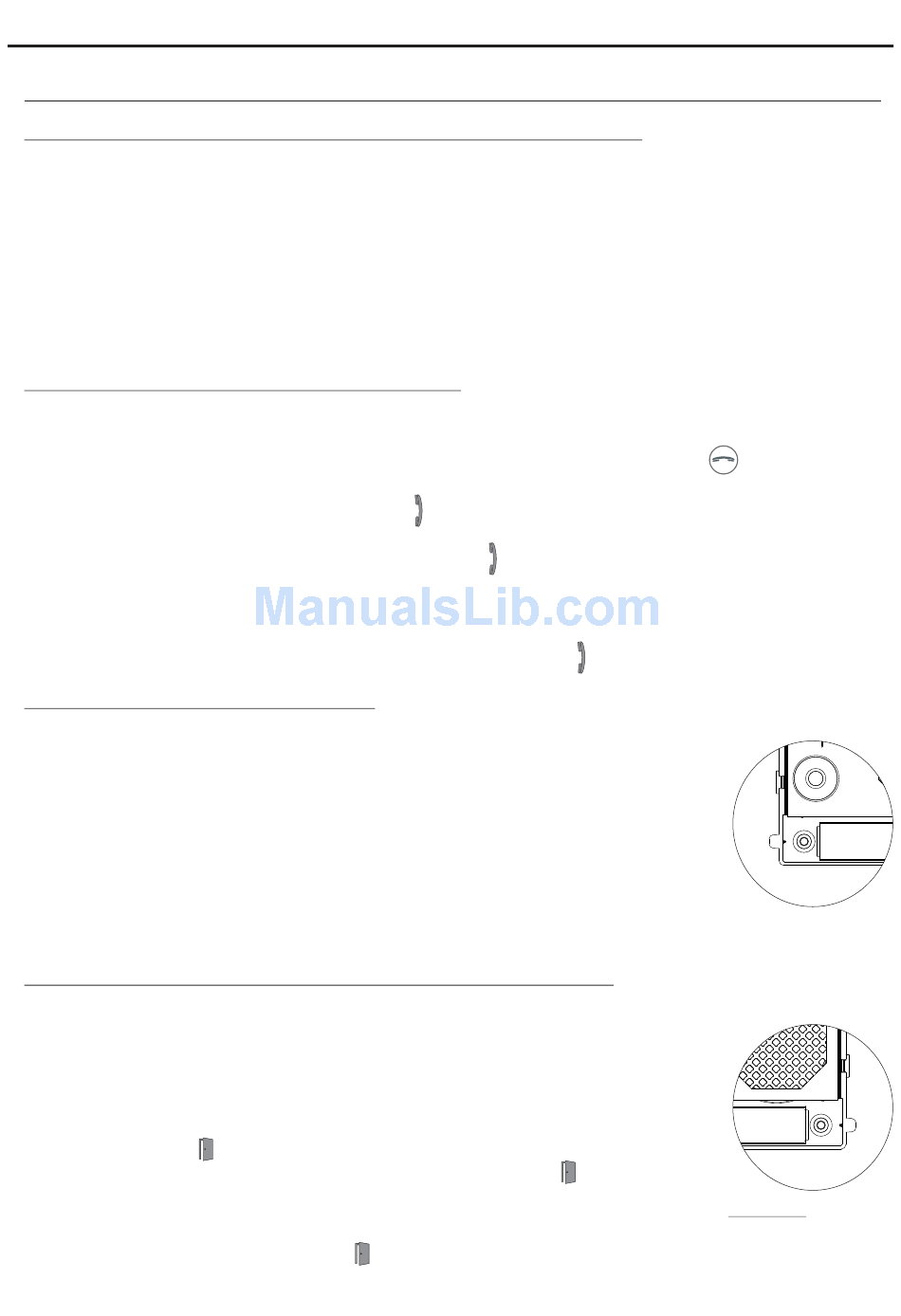

NEXA MODULAR GB2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
INSTALLATION OF THE DOOR PANEL

Description of the vocal synthesis (audible signals on the door panel):

Audible signals on the door panel for people with impaired vision.
If vocal synthesis is enabled on the sound module (see page 24-25 for configuration), the following voice
messages can be heard on the door panel:
- While calling: "Call is in progress".
- During door release: "Door Opened!".
- End of communication: "Communication is finished".
- Calling at one door panel while another door panel is communicating (if there is more than one door
panel): "System is busy, try later".
- While calling and the monitor is in "Do not disturb" mode: "Call is in progress".
- While calling (apartment with no monitor or telephone): "Resident Unavailable".

Adjusting the door panel communication volume:

If after starting the system the door panel audio volume seems inadequate, follow these steps:
- Call an apartment.
- The call is received in the apartment. Establish communication by pressing the push button
- Next, press the push button used to call the apartment for 3 seconds until a number of confirmation tones are
heard and the door panel communication LED
- Each press on the same call button will increase the door panel volume and LED blink speed.
.
There are 5 volume settings and the blink speed of LED
high volume. After reaching "setting 5", that is, maximum blink speed and volume, the next setting is
"setting 1", that is, minimum blink speed and volume (carousel mode).
- To save the volume setting keep the push button used to call the apartment pressed until a number of
confirmation tones are heard and the door panel communication LED

Selecting the vocal synthesis language:

To activate the vocal synthesis of the door panel, follow these steps:
- Disconnect the door panel's power supply.
- Set DIP 6 on the sound module (see page 24) to ON.
- Reconnect the door panel's power supply.
- Press and hold down button P2 on the sound module for 6 seconds (until the confirmation
tones end).
- Then continue pressing until the required language is reached.
- Finally, set DIP 6 to OFF.
A confirmation tone will be heard.
Configuring the contact type for Relay 1 and Relay 2 (lock release):
To change the contact type for lock release activation of Relay 1 and Relay 2 of the door
panel, follow these steps:
- Disconnect the door panel's power supply.
- Set DIP 6 on the sound module (see page 24) to ON.
- Reconnect the door panel's power supply.
- Press and hold down button P1 on the sound module for 6 seconds (until the confirmation
tones end and LED
- Then continue pressing until the required contact type is reached. LED
will blink rapidly if the contact selected is NO (default setting) or slowly if the contact
selected is NC. Once the required option is selected, stop pressing button P1.
- Finally, set DIP 6 to OFF.
A confirmation tone will be heard and LED
Important: The selected contact type will apply to both Relay 1 and Relay 2.
on the door panel starts to blink).
on the door panel will turn off.
starts to blink.
will increase for each. Slow to fast blink - low to
turns off.
on the door panel
25
on the monitor.
P2
P1
Description:
Normally open: N.O
Normally closed: N.C
