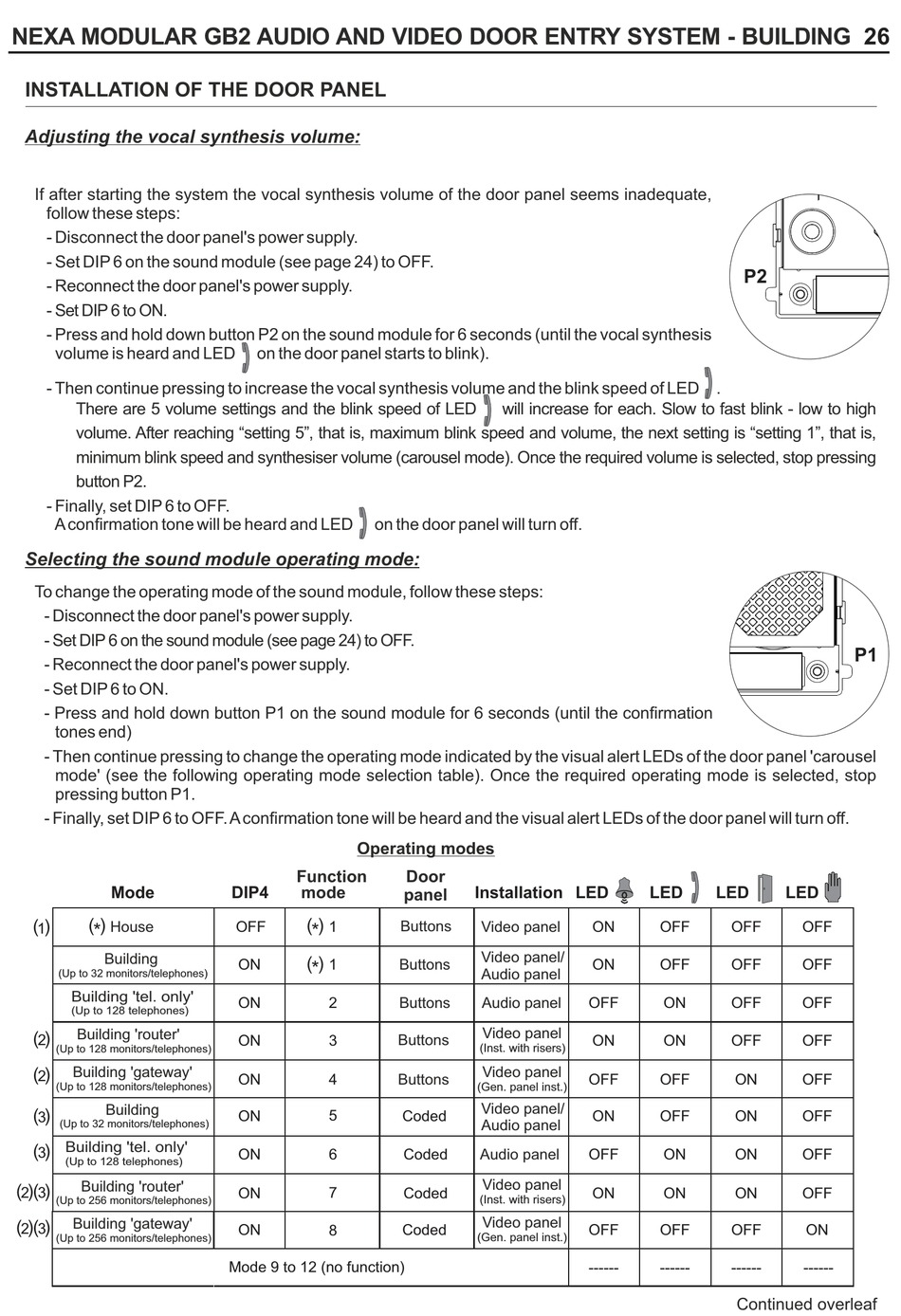

NEXA MODULAR GB2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
INSTALLATION OF THE DOOR PANEL

Adjusting the vocal synthesis volume:

If after starting the system the vocal synthesis volume of the door panel seems inadequate,
follow these steps:
- Disconnect the door panel's power supply.
- Set DIP 6 on the sound module (see page 24) to OFF.
- Reconnect the door panel's power supply.
- Set DIP 6 to ON.
- Press and hold down button P2 on the sound module for 6 seconds (until the vocal synthesis
volume is heard and LED
- Then continue pressing to increase the vocal synthesis volume and the blink speed of LED .
There are 5 volume settings and the blink speed of LED
volume. After reaching "setting 5", that is, maximum blink speed and volume, the next setting is "setting 1", that is,
minimum blink speed and synthesiser volume (carousel mode). Once the required volume is selected, stop pressing
button P2.
- Finally, set DIP 6 to OFF.
A confirmation tone will be heard and LED

Selecting the sound module operating mode:

To change the operating mode of the sound module, follow these steps:
- Disconnect the door panel's power supply.
- Set DIP 6 on the sound module (see page 24) to OFF.
- Reconnect the door panel's power supply.
- Set DIP 6 to ON.
- Press and hold down button P1 on the sound module for 6 seconds (until the confirmation
tones end)
- Then continue pressing to change the operating mode indicated by the visual alert LEDs of the door panel 'carousel
mode' (see the following operating mode selection table). Once the required operating mode is selected, stop
pressing button P1.
- Finally, set DIP 6 to OFF. A confirmation tone will be heard and the visual alert LEDs of the door panel will turn off.
Mode
( )
( )
House
1 *
Building
( Up to 32 monitors/telephones
Building 'tel. only'
(Up to 128 telephones)
Building 'router'
( )
2
(Up to 128 monitors/telephones)
Building 'gateway'
( )
2
(Up to 128 monitors/telephones)
Building
( )
3
(Up to 32 monitors/telephones)
Building 'tel. only'
( )
3
(Up to 128 telephones)
Building 'router'
( ) ( )
2 3
(Up to 256 monitors/telephones)
Building 'gateway'
( ) ( )
2 3
(Up to 256 monitors/telephones)
on the door panel starts to blink).
Operating modes
Function
D 4 IP mode
( )
OFF 1
*
( )
ON 1
*
)
ON 2
ON 3
ON 4
5
ON
ON 6
7
ON
ON 8
Mode 9 to 12 (no function)
will increase for each. Slow to fast blink - low to high
on the door panel will turn off.
Door
Insta la i n l t o
panel
Buttons Video panel
Video panel/
Buttons
Audio panel
Buttons Audio panel
Video panel
Buttons
(Inst. with risers)
Video panel
Buttons
(Gen panel inst.) .
Video panel/
Coded
Audio panel
Audio panel
Coded
Video panel
Coded
(Inst. with risers)
Video panel
Coded
(Gen panel inst.) .
P2
LED LED LED
ON OFF OFF
ON OFF OFF
OFF ON OFF
ON ON OFF
OFF OFF ON
ON OFF ON
OFF ON ON
ON ON ON
OFF OFF OFF
------ ------ ------
Continued overleaf
26
P1
LED
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
------
