DOOR PANEL INSTALLATION

E
mbedding box positioning.

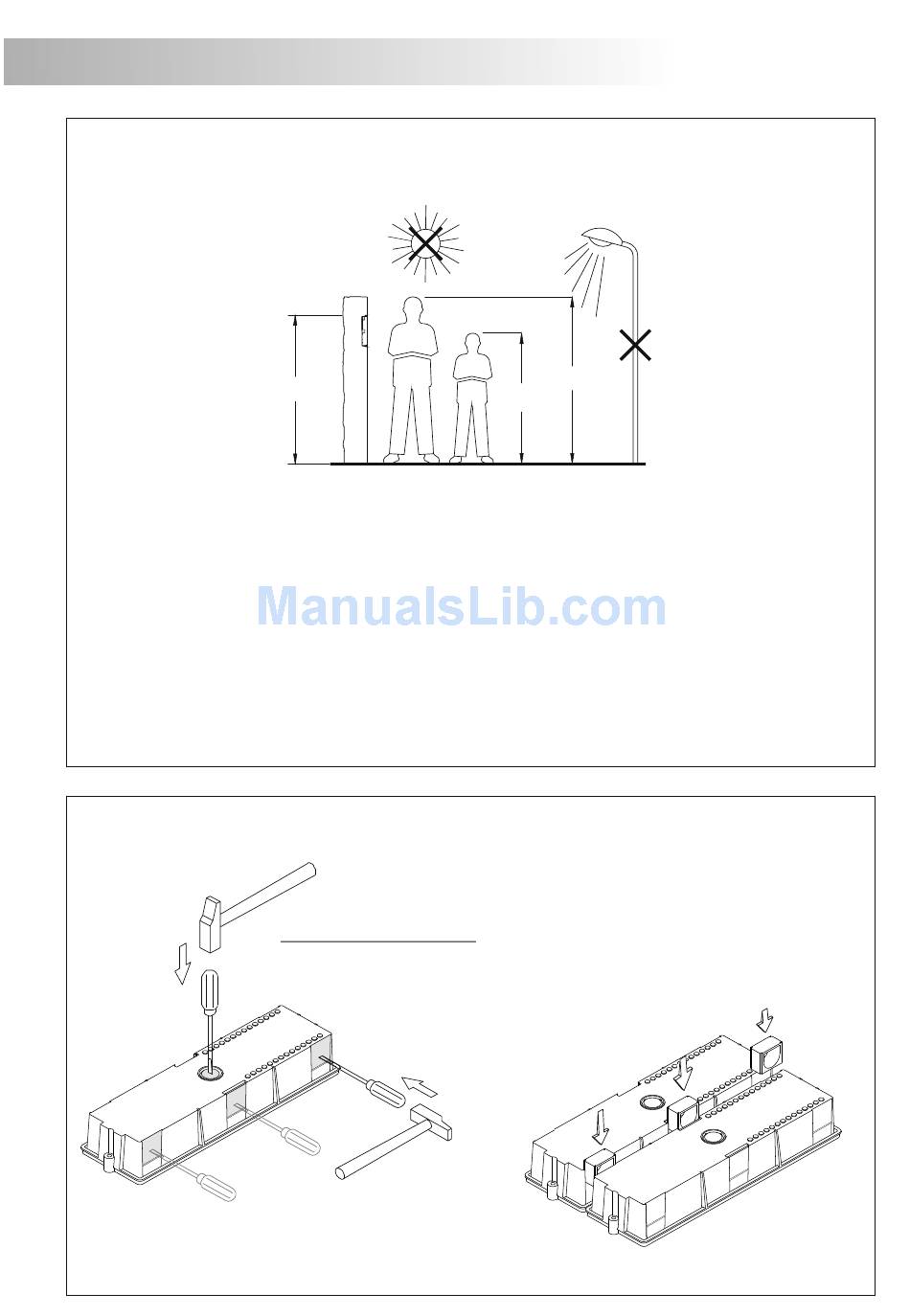

The upper part of the door panel should be placed at 1,65m. height roughly. The hole dimensions
will depend on the type of door panel.
The door panel has been designed to be placed under most of the environmental conditions.
However it's recommended to take additional cautions like covered places. To obtain a good
quality picture on video door entry systems, avoid direct incidence from light sources.
1650
Modules 1
Model NCEV90CS
An 99
Al 135,5
P 40
Break the bottom flange to pass the cables through. In case of door panels
with more than one embedding box, break the side flanges and
attach the embedding boxes using UC junctions.
1850
1450
2 3
NCEV90C CEV90
99 99 mm.
328 mm.
238
56 56 mm.
P
reparing the cables entry.
