NEXA MODULAR GB2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING

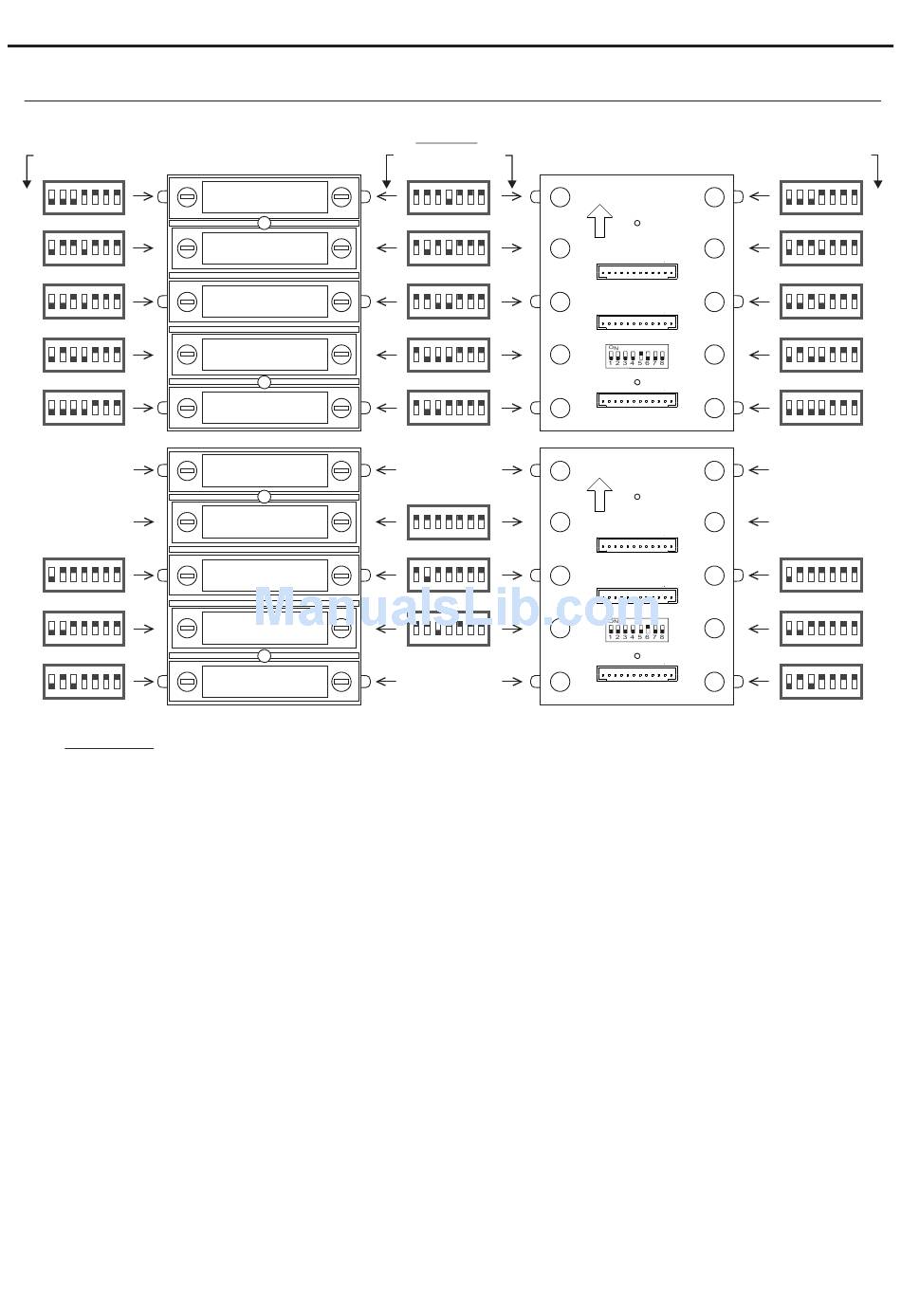

INSTALLATION OF THE DOOR PANEL
Continued from previous page.
Telephone code
C ode 120
ON
1 2 3 4 5 6 7
C ode 118
ON
1 2 3 4 5 6 7
C ode 116
ON
1 2 3 4 5 6 7
C ode 114
ON
1 2 3 4 5 6 7
C ode 112
ON
1 2 3 4 5 6 7
Not used
Not used
C ode 126
ON
1 2 3 4 5 6 7
C ode 124
ON
1 2 3 4 5 6 7
C ode 122
ON
1 2 3 4 5 6 7
IMPORTANT: The T562/TNHEA telephone's DIP 10 should be set to ON.
EL610D
Telephone code
C ode 119
ON
9
1 2 3 4 5 6 7
C ode 117
ON
7
1 2 3 4 5 6 7
C ode 115
ON
5
1 2 3 4 5 6 7
C ode 113
ON
3
1 2 3 4 5 6 7
C ode 121
ON
1
1 2 3 4 5 6 7
9
Not used
C ode 127
ON
7
1 2 3 4 5 6 7
C ode 125
ON
5
1 2 3 4 5 6 7
C ode 123
ON
3
1 2 3 4 5 6 7
Sin uso 1
19
Telephone code
C ode 120
ON
10
1 2 3 4 5 6 7
C ode 118
ON
8
1 2 3 4 5 6 7
C ode 116
ON
6
1 2 3 4 5 6 7
C ode 114
ON
4
1 2 3 4 5 6 7
C ode 112
ON
2
1 2 3 4 5 6 7
10
Not used
8
Not used
C ode 126
ON
6
1 2 3 4 5 6 7
C ode 124
ON
4
1 2 3 4 5 6 7
C ode 122
ON
2
1 2 3 4 5 6 7
